Fire Hose
Double Jacket Fire Hose
Double jacket fire hose carries two layers of woven synthetic yarn instead of one, which is what lets it work at markedly higher pressure than a single jacket hose.
Product Overview
What This Hose Is Built To Do
Double jacket fire hose carries two layers of woven synthetic yarn instead of one, which is what lets it work at markedly higher pressure than a single jacket hose. The liner can be TPU, EPDM, NBR or natural rubber, so the temperature rating follows the liner chosen. It is made from 1.5 to 6 inch in 20 m and 30 m lengths, and is used for forest firefighting and snow making.
Key Benefits
- Two woven jackets raise pressure capability over a single jacket hose of the same bore
- Four liner materials mean the hose can be matched to cold, heat or chemical exposure
- Resistant to kinking and twisting, which is what usually stops flow at the nozzle
- Long service life where hose is charged and recharged through a season
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality TPU/EPDM/NBR/Natural Rubber |
|---|---|
| Color | White, yellow, red or as required |
| Size | 1.5-6 inch |
| Length | 20m(66ft), 30m (100ft) or as required |
| Temperature | Based on liner rubber type |
Problems It Solves
Why Buyers Move To This Product
- Single jacket hose reaching its pressure limit on long uphill forest lines
- Kinking under a dragged line cutting flow at the nozzle
- Cover damage on hose worked over rock and frozen ground
Who It Is For
- Forest and wildland fire services
- Ski resorts running snow making systems
- Industrial fire brigades needing higher pressure lines
- Fire equipment distributors stocking a heavy duty line

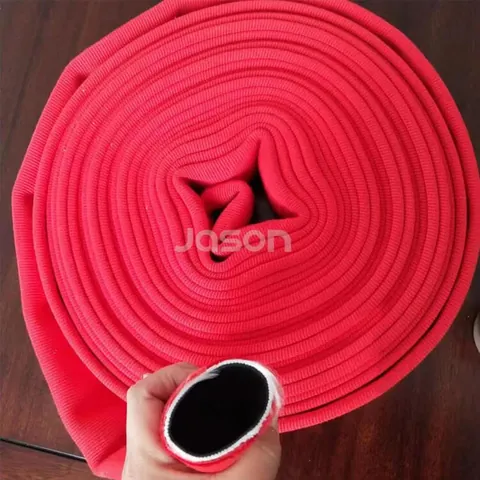

Photographs
The Product as It Ships
Technical Features
- High-pressure
- Flexible
- Durable
- Abrasion resistant
- Kinking
- Twisting
- Long lifetime and reliable performance and etc
Application Scenarios
- Fire fighting in forest
- Snow making
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Select the liner by exposure: TPU for cold, EPDM for heat, NBR for oil, natural rubber for general duty
- Avoid sharp bends at the coupling where the jackets are stiffest
- Flush the line after use on dirty or chemically treated water
- Dry fully before rolling so the jackets do not hold moisture
- Pressure test in service on the schedule your brigade requires
Comparison
How It Compares With Our Other Products
| Canvas Fire Hose | Canvas fire hose is the single jacket lightweight option for building and structural firefighting, where this one adds a second jacket for pressure |
|---|---|
| Snow Making Hose | Snow making hose is a double jacket hose finished specifically for snow cannon supply in DN38 and DN51 |
Related Case Studies
Related Products
Other Products in the Fire Hose Range
10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
View specifications
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specificationsFAQ
Questions About the Double Jacket Fire Hose
How much more pressure does a double jacket take
It is built to handle much higher pressure than a single jacket hose. The exact rating depends on size and liner, and we confirm it against your specification.
Which liner materials can you supply
TPU, EPDM, NBR and natural rubber.
What sizes do you make
1.5 to 6 inch.
What is the temperature range
It follows the liner material chosen, so we confirm it once the liner is fixed.
What colours are available
White, yellow and red are standard, with other colours to order.
Is it tested before shipment
Yes. Layflat hose is tested at 1.5 times working pressure for 2 hours before packing.
Request a Quote on the Double Jacket Fire Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
