TPU Layflat Hose
Layflat Drinking Water Hose
The layflat drinking water hose is a food grade TPU pipeline for emergency and temporary potable water delivery at high working pressure.
Product Overview
What This Hose Is Built To Do
The layflat drinking water hose is a food grade TPU pipeline for emergency and temporary potable water delivery at high working pressure. It is light, abrasion resistant and deploys far faster and more safely than rigid pipe, which is what matters when clean water has to reach people quickly. Sizes are 2 to 12 inch in 200 m lengths, in light green, rated -50°C to 80°C.
Key Benefits
- Food grade TPU cover and liner specified for potable duty
- Deploys quickly and safely compared with rigid pipe on emergency supply
- High abrasion and kink resistance for hose laid over unprepared ground
- UV resistance for lines that stay in place through a long deployment
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality food grade TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | light green or as required |
| Size | 2 inch-12 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Getting drinking water to a site or population with no usable pipework
- Water bypass during mains repair without cutting supply for days
- Pipe that cannot be transported into a disaster area quickly enough
Who It Is For
- Disaster relief and humanitarian agencies
- Water utilities running mains bypass operations
- Armed forces and naval vessels supplying drinking water
- Event and temporary settlement water contractors

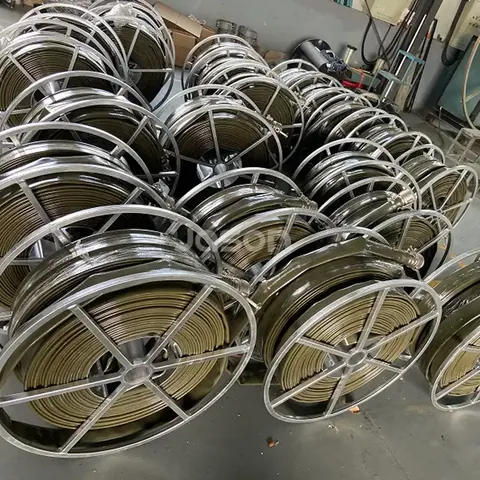

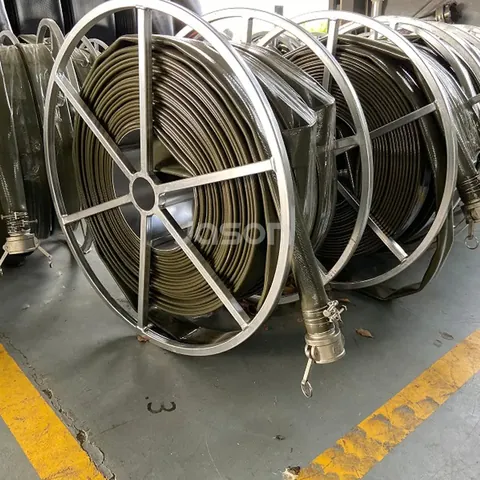

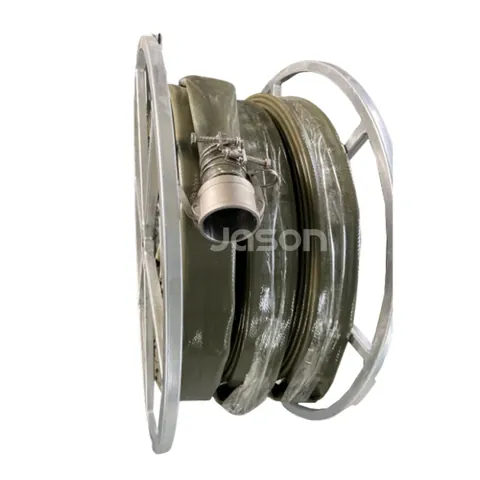

Photographs
The Product as It Ships
Technical Features
- High abrasion and kink resistance
- High pressure
- UV resistance
- High flow
- Safe and quick installation
- Long life time
Application Scenarios
- Emergency potable water supply
- Water bypass
- Army and ship drinking water supply
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Keep this hose dedicated to potable duty and never rotate it into dirty water service
- Flush the line before first use on each deployment
- Cap couplings whenever the line is broken
- Protect the run where the public can reach it
- Store separately from general purpose hose so it cannot be mixed up
Comparison
How It Compares With Our Other Products
| Layflat Supply Hose | Same TPU family, where this one uses a food grade compound and a light green cover to keep potable duty clearly separated |
|---|---|
| Boreline Hose | Boreline is for pumping water up from a bore, where this hose distributes it at the surface |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Layflat Drinking Water Hose
Is the hose food grade
Yes. Cover and liner are high quality food grade TPU.
What sizes do you make
2 inch to 12 inch.
What length is standard
200 m (660 ft), or as required.
What colour is it
Light green, which keeps potable lines visually separate from other duty.
Can it be deployed in freezing conditions
It is rated to -50°C (-60°F). Drain the line when it is not in use so water cannot freeze in the bore.
Do you have documentation for the food grade material
Send your requirement and we will confirm what material documentation we can provide for your market.
Request a Quote on the Layflat Drinking Water Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
