TPU Layflat Hose
Layflat Supply Hose
The layflat supply hose is our TPU discharge and supply hose made by the extrusion through-the-weave method, which bonds cover to lining and firmly encapsulates the woven polyester.
Product Overview
What This Hose Is Built To Do
The layflat supply hose is our TPU discharge and supply hose made by the extrusion through-the-weave method, which bonds cover to lining and firmly encapsulates the woven polyester. That bond is what lets it work at high pressure over long distance water supply, emergency flood removal, large volume industrial discharge and frac solution transfer. Sizes are 8 to 16 inch in 200 m lengths, red or black.
Key Benefits
- Extrusion through-the-weave gives a very strong bond between cover, lining and reinforcement
- 8 to 16 inch covers the whole bulk transfer range in one product
- 200 m lengths designed around reel deployment rather than manual handling
- Long service life on hose that is deployed and recovered continuously
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Red, black or as required |
| Size | 8 inch-16 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Cover-to-liner separation on conventional hose after repeated high pressure cycles
- Long distance supply runs limited by short available hose lengths
- Emergency flood pumping where hose has to be laid over kilometres quickly
Who It Is For
- Water transfer contractors in oil and gas
- Flood and emergency water removal agencies
- Heavy industry with large volume discharge duty
- Mining operations moving bulk water
Photographs

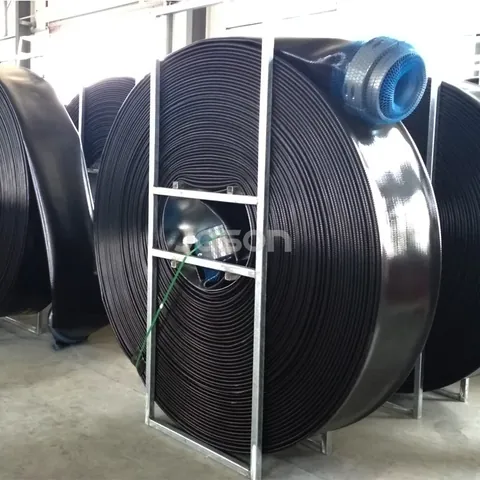

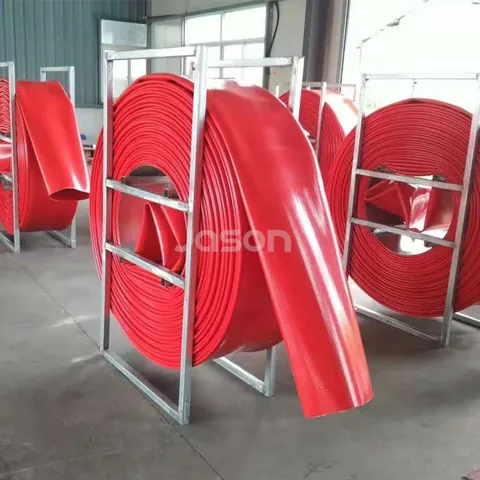

The Product as It Ships
Technical Features
- High pressure
- Abrasion resistant
- Extremely tough
- Fast deployment and retrieval
- Excellent flow rates
- Long service life
Application Scenarios

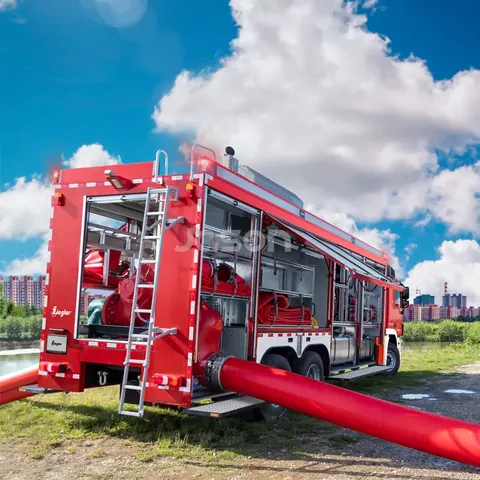

- Long-distance water supply in fire fighting
- Emergency water removal during floods
- Industrial large volume water discharge and frac solution
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Specify the size from the transfer volume and distance, not from the pump flange
- Deploy from a reel with controlled tension
- Keep joints accessible for inspection during a long campaign
- Flush and dry before rewinding for storage between campaigns
- Track each reel by trace number through its service life
Comparison
How It Compares With Our Other Products
| Fracking Hose | Fracking hose is the same family finished for frac and produced water with anti-static copper wires available |
|---|---|
| Layflat Discharge Hose | The PVC discharge hose is the economical water-only option, where this is the high pressure long distance hose |
Related Case Studies
Related Guides
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Layflat Supply Hose
What sizes are available
8 inch to 16 inch.
What does extrusion through-the-weave mean
TPU is extruded through the woven polyester so the cover and lining bond to each other through the weave rather than being glued to it.
What length do you supply
200 m (660 ft), or as required.
Which colours are standard
Red and black, with other colours to order.
What temperature range does it cover
-50°C (-60°F) to 80°C (176°F).
Is the hose pressure tested
Yes. Layflat hose is tested at 1.5 times working pressure for 2 hours before shipment.
Request a Quote on the Layflat Supply Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
