NBR Layflat Hose
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
Product Overview
What This Hose Is Built To Do
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites. Applications run from air compressors and pneumatic tools to cable blowing, soil excavation and air caster rigging. Sizes are DN19 (3/4 inch), DN25 (1 inch) and DN32 (1 1/4 inch) in 30 m lengths.
Key Benefits
- Flat profile installs and stores where a round air hose is too bulky
- Nitrile rubber cover and liner handle compressor oil carryover
- Kink and twist resistant so tool pressure stays steady
- One hose covers a wide application list from rock drilling to cable blowing
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Yellow, black, red or as required |
| Size | DN19(3/4”), DN25(1”), DN32(1 1/4”) |
| Length | 30m (100ft)or as required |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Round air hose taking up space in confined working areas
- Air lines kinking and dropping tool performance
- Hose cover failing early where it is walked on and driven over
Who It Is For
- Construction and civil engineering sites
- Telecom contractors doing cable blowing
- Industrial plants with automated air lines
- Heavy load moving crews using air caster rigging
Photographs

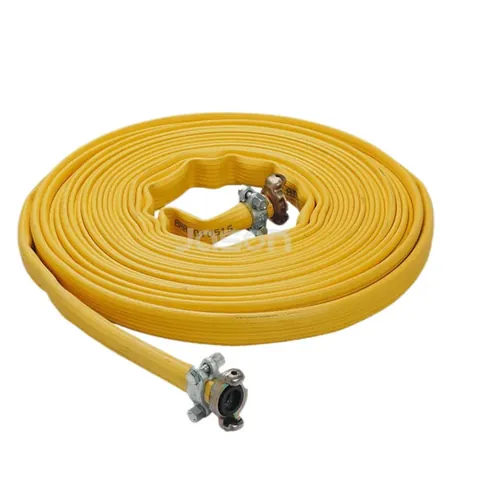

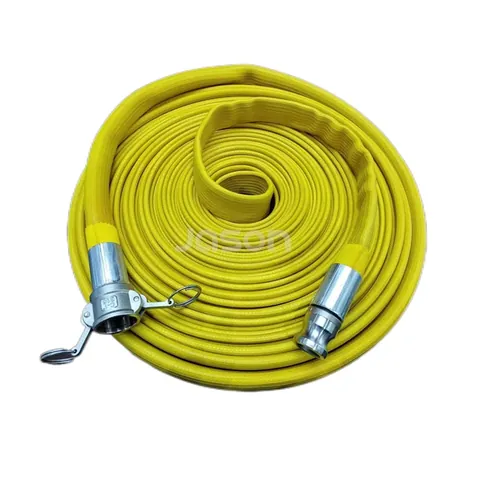

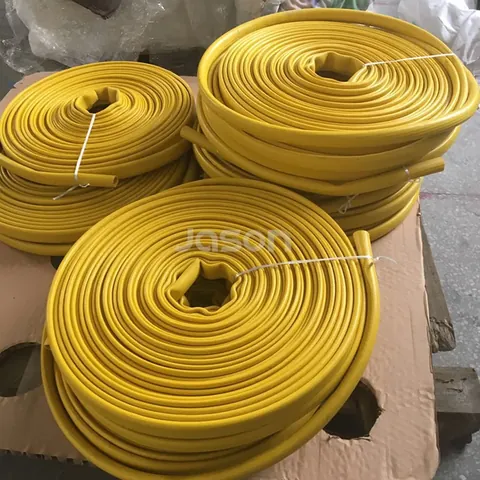

The Product as It Ships
Technical Features
- Light weight
- Flexibility
- Durability
- High pressure
- Abrasion resistant
- Kinking
- And twisting
- Ensuring a long lifespan and reliable performance and etc
Application Scenarios
- Air compressors
- Pneumatic tools
- Rock drilling
- Breaker
- Automated air line
- Air supply
- Cable blowing
- Soil excavation
- Air caster rigging system(load moving)
Manufacturing and Quality
How It Is Made and Checked
Production Process of NBR Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Lay flat and remove twists before pressurising
- Match the bore to the tool air demand, not to the fitting on the compressor
- Keep the hose out of the path of tracked plant
- Purge condensate before storage
- Roll for storage rather than folding at a crease
Comparison
How It Compares With Our Other Products
| Layflat Air Hose Plus | The plus version adds a double jacket and larger DN38 and DN51 sizes for higher working pressure |
|---|---|
| Rubber Covered Fire Hose | Same nitrile rubber family, but specified and sized for compressed air rather than firefighting water |
Related Case Studies
Related Products
Other Products in the NBR Layflat Hose Range

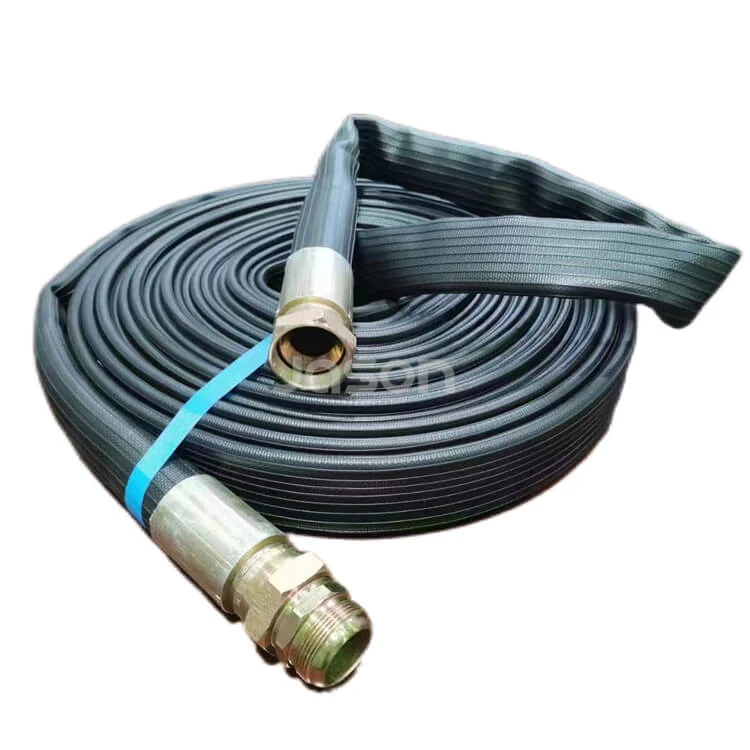

Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
View specifications

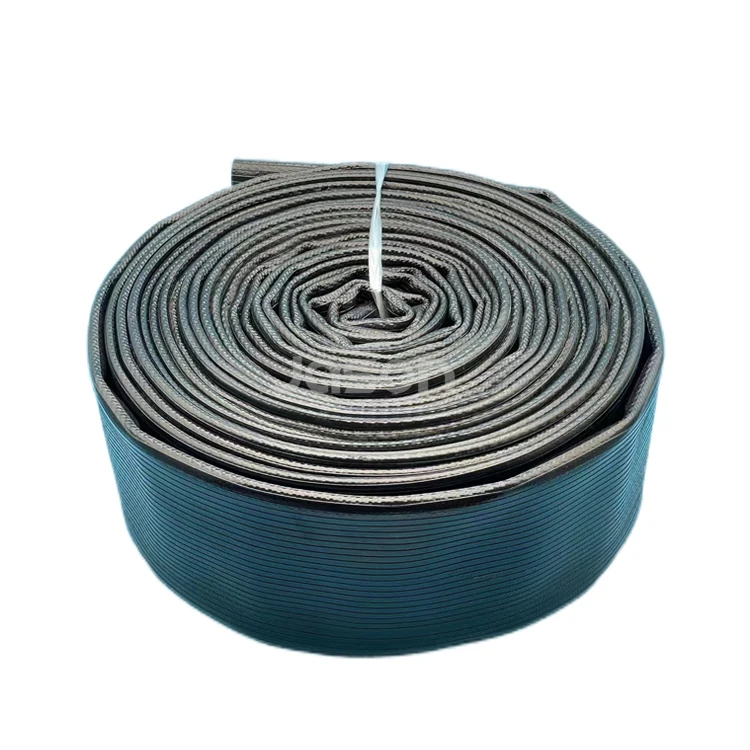

Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
View specifications

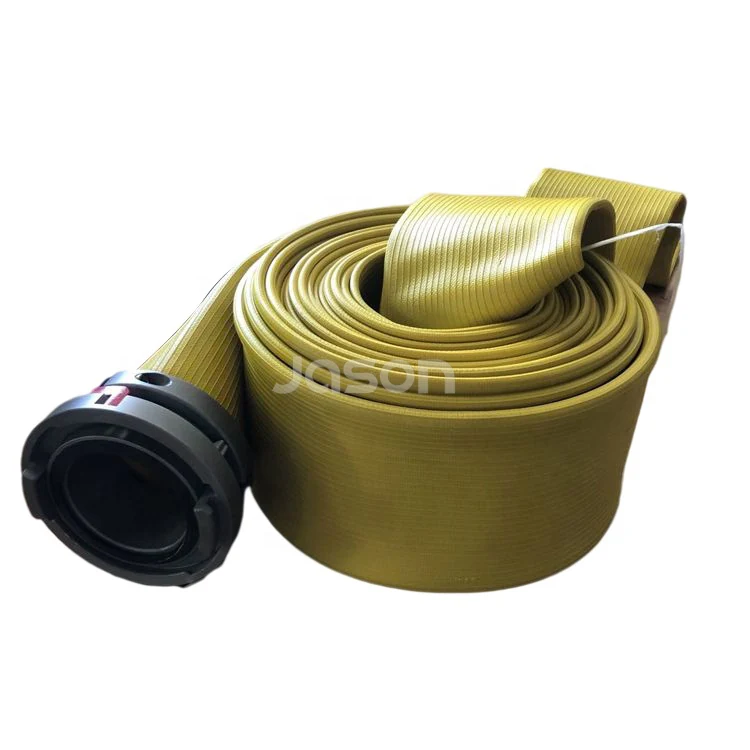

LDH Fire Hose
LDH fire hose is a large diameter supply line that moves large volumes of water at a fraction of the friction loss of conventional smaller diameter hose.
View specificationsFAQ
Questions About the Layflat Air Hose
Which sizes do you make
DN19 (3/4 inch), DN25 (1 inch) and DN32 (1 1/4 inch).
What length is standard
30 m (100 ft), or as required.
Can it be used for cable blowing
Yes. Cable blowing is one of its listed applications.
What is the temperature range
-30°C (-22°F) to 100°C (212°F).
Which colours are available
Yellow, black and red are standard, with other colours to order.
What if I need a higher working pressure
Use the layflat air hose plus, which has a double jacket and comes in DN38 and DN51.
Request a Quote on the Layflat Air Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
