Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
Product Overview
What This Hose Is Built To Do
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range. It is made in DN38 (1.5 inch) and DN51 (2 inch) in 20 m and 30 m lengths, and works from -30°C to 100°C.
Key Benefits
- Double jacket reinforcement for the highest working pressure in our air hose range
- Still light and flexible, so it can be stored and transported easily despite the extra jacket
- Nitrile rubber cover resists the oil carryover that comes off a compressor
- Kink and twist resistant, which is what protects tool performance at the far end
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity double jacket synthetic yarn |
| Color | Black, red, yellow or as required |
| Size | DN38(1.5 inch), DN51(2 inch) |
| Length | 20m(66ft), 30m (100ft)or as required |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Single jacket air hose reaching its pressure limit on rock drill and breaker duty
- Air line kinking and starving a tool of pressure mid-shift
- Rubber hardening where the line is coiled and uncoiled every day
Who It Is For
- Quarry and mining crews running rock drills
- Demolition contractors on high pressure breaker duty
- Industrial plants with automated air lines
- Tool hire depots stocking a heavy duty air line

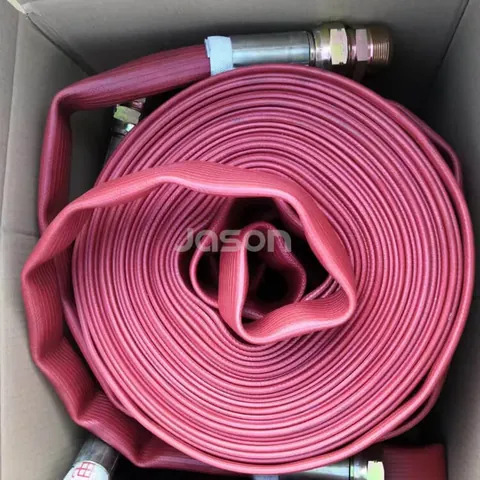

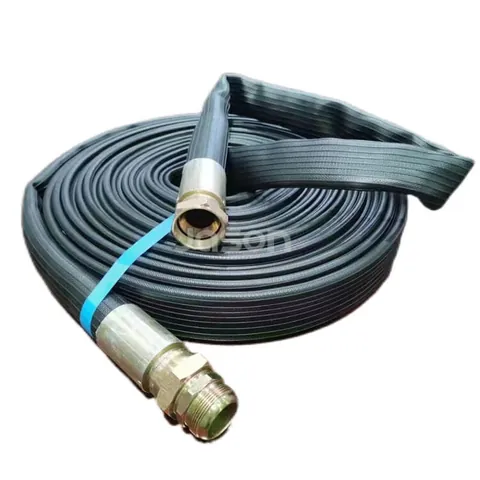

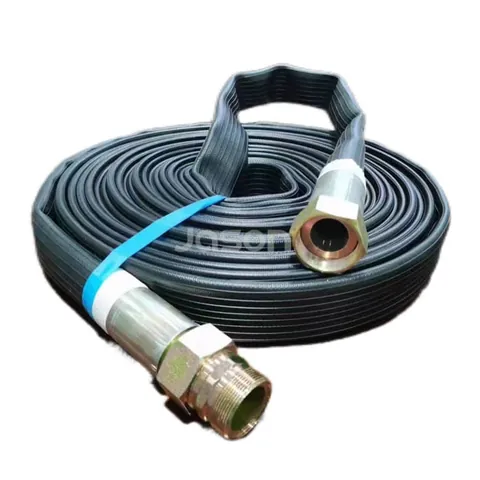

Photographs
The Product as It Ships
Technical Features
- High pressure
- Light weight
- Flexibility
- Durability
- Abrasion resistant
- Kinking
- Twisting
- Ensuring a long lifespan and reliable performance and etc
Application Scenarios
- Air compressors
- Pneumatic tools
- Rock drill
- Automated air line
- Air supply
Manufacturing and Quality
How It Is Made and Checked
Production Process of NBR Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Check the compressor maximum pressure against the hose rating before connecting
- Lay the hose out flat before charging so no kink is trapped under pressure
- Keep couplings clear of grit on quarry and demolition sites
- Drain condensate from the line at the end of a shift
- Roll rather than fold for storage
Comparison
How It Compares With Our Other Products
| Layflat Air Hose | The standard version is single jacket in DN19 to DN32, where this adds a second jacket and moves up to DN38 and DN51 |
|---|---|
| Doctor Blade Air Hose | The doctor blade hose is built for high temperature air beside a paper machine rather than general high pressure air |
Related Case Studies
Related Products
Other Products in the NBR Layflat Hose Range
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
View specifications
Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
View specifications
LDH Fire Hose
LDH fire hose is a large diameter supply line that moves large volumes of water at a fraction of the friction loss of conventional smaller diameter hose.
View specificationsFAQ
Questions About the Layflat Air Hose Plus
Which sizes do you make
DN38 (1.5 inch) and DN51 (2 inch).
What makes it different from the standard layflat air hose
It uses a high tenacity double jacket reinforcement so it can operate at higher working pressures.
What lengths are available
20 m (66 ft) and 30 m (100 ft), or as required.
What is the temperature range
-30°C (-22°F) to 100°C (212°F).
What colours do you offer
Black, red and yellow are standard, with other colours to order.
Is it suitable for rock drills
Yes. Rock drill duty is one of its listed applications.
Request a Quote on the Layflat Air Hose Plus
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
