NBR Layflat Hose
Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
Product Overview
What This Hose Is Built To Do
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session. It is nitrile rubber over high tenacity synthetic yarn in DN110 and DN118, in 20 m (65 ft) and 25 m (82 ft) lengths, black, rated -30°C to 100°C.
Key Benefits
- High tensile strength and high adhesive strength for hose under constant dynamic load
- Hydrolysis resistant, which matters for a hose that lives in water
- UV, ozone and weathering resistance for equipment used outdoors all season
- Two standard lengths at 20 m and 25 m to suit different ride setups
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | DN110,DN118 |
| Length | 20m (65ft), 25m (82ft) or as required |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Cover and liner separating on a hose that is flexed continuously under pressure
- Hose degrading from permanent immersion and sunlight across a season
- Abrasion where the hose runs over the watercraft and the board
Who It Is For
- Flyboard and watersport operators
- Water sports equipment distributors
- Resort and marina activity centres
- Flyboard equipment manufacturers sourcing OEM hose
Photographs

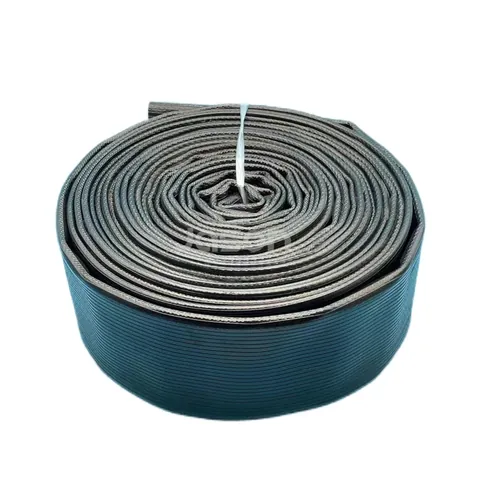

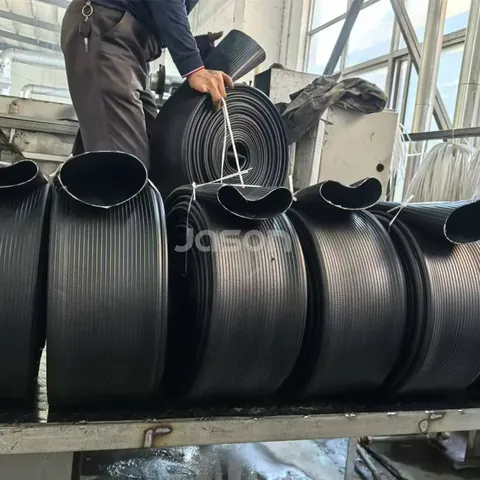

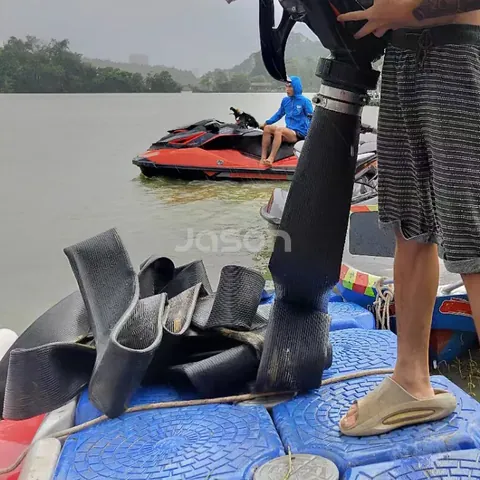

The Product as It Ships
Technical Features
- Flexibility
- Durability
- High tensile strength
- Abrasion resistant
- High adhesive strength
- Hydrolysis resistant
- UV
- Ozone and weathering resistant and etc
Application Scenarios
- Flyboard water supply
Manufacturing and Quality
How It Is Made and Checked
Production Process of NBR Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Check the hose and its connections before every session
- Rinse with fresh water after use in salt water
- Avoid sharp bends at the watercraft connection
- Store out of direct sunlight between sessions
- Replace on condition of the cover rather than on age alone
Comparison
How It Compares With Our Other Products
| Layflat Air Hose | Same nitrile rubber family, but built in DN110 and DN118 for the flow and dynamic loading a flyboard needs |
|---|---|
| Rubber Covered Fire Hose | Fire hose is specified for firefighting pressure and standards, where this one is specified for continuous flexing in water |
Related Products
Other Products in the NBR Layflat Hose Range
Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
View specifications
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
View specifications
LDH Fire Hose
LDH fire hose is a large diameter supply line that moves large volumes of water at a fraction of the friction loss of conventional smaller diameter hose.
View specificationsFAQ
Questions About the Flyboard Hose
Which sizes do you make
DN110 and DN118.
What lengths are standard
20 m (65 ft) and 25 m (82 ft), or as required.
Is it suitable for salt water
The cover is hydrolysis, UV, ozone and weathering resistant. Rinse with fresh water after salt water use.
What colour is it
Black, or another colour to order.
Can you supply OEM hose for our own equipment brand
Yes. OEM and ODM production including your own design is standard for us.
What is the temperature range
-30°C (-22°F) to 100°C (212°F).
Request a Quote on the Flyboard Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
