NBR Layflat Hose
LDH Fire Hose
LDH fire hose is a large diameter supply line that moves large volumes of water at a fraction of the friction loss of conventional smaller diameter hose.
Product Overview
What This Hose Is Built To Do
LDH fire hose is a large diameter supply line that moves large volumes of water at a fraction of the friction loss of conventional smaller diameter hose. In practice it works like an above-ground water main laid into an apparatus pumping operation. It is nitrile rubber over high tenacity synthetic yarn in 4, 5 and 6 inch, yellow, in 15 m (50 ft) and 30 m (100 ft) lengths.
Key Benefits
- Large diameter cuts friction loss sharply against running several smaller lines
- Acts as an above-ground water main into an apparatus pumping operation
- Nitrile rubber cover is hydrolysis, UV, ozone and weathering resistant
- Yellow cover for the high visibility supply lines are normally specified in
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Yellow or as required |
| Size | 4 inch, 5 inch, 6 inch |
| Length | 15m (50ft), 30m (100ft) or as required |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Friction loss eating the pressure available at the far end of a supply relay
- Running multiple parallel small diameter lines to get the required flow
- Supply hose cover degrading between uses on the appliance
Who It Is For
- Municipal fire brigades running LDH supply relays
- Industrial fire services
- Fire equipment distributors
- Water supply and relay pumping operations

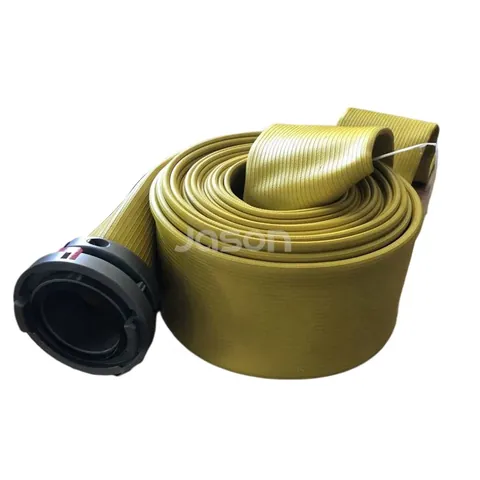

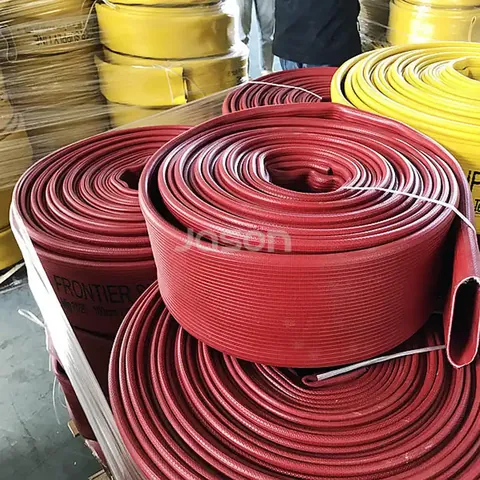

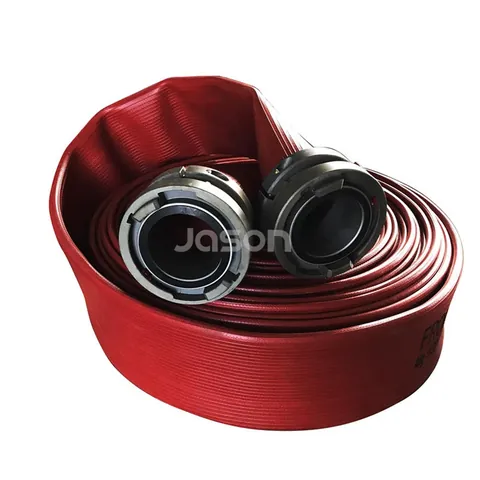

Photographs
The Product as It Ships
Technical Features
- Flexibility
- Durability
- High tensile strength
- Abrasion resistant
- High adhesive strength
- Hydrolysis resistant
- UV
- Ozone and weathering resistant and etc
Application Scenarios
- Water supply in fire fighting
Manufacturing and Quality
How It Is Made and Checked
Production Process of NBR Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Size the relay from the flow required, since LDH is chosen for friction loss
- Keep the line as straight as the route allows
- Check couplings before charging a large diameter line
- Drain and dry before loading back onto the apparatus
- Track each length so hose is rotated evenly through the fleet
Comparison
How It Compares With Our Other Products
| Rubber Covered Fire Hose | Same nitrile rubber construction in 1.5 to 6 inch for attack and supply, where LDH is specified specifically as the large diameter supply line |
|---|---|
| 8 Inch Fire Hose | The TPU 8 inch goes larger again for bulk transfer, where LDH stays within standard apparatus supply sizes |
Related Products
Other Products in the NBR Layflat Hose Range
Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
View specifications
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
View specifications
Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
View specificationsFAQ
Questions About the LDH Fire Hose
Which sizes do you make
4 inch, 5 inch and 6 inch.
What lengths are available
15 m (50 ft) and 30 m (100 ft), or as required.
Why use LDH instead of two smaller lines
A large diameter line moves the same volume with far less friction loss than conventional smaller diameter hose.
What colour is standard
Yellow, with other colours to order.
What is the temperature range
-30°C (-22°F) to 100°C (212°F).
Can you fit Storz couplings
Yes. Storz couplings to DIN14301 and DIN14303 are made in our own coupling line.
Request a Quote on the LDH Fire Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
