NBR Layflat Hose
Rubber Covered Fire Hose
Rubber covered fire hose is a maintenance-free covered fire hose used by municipal and industrial fire services.
Product Overview
What This Hose Is Built To Do
Rubber covered fire hose is a maintenance-free covered fire hose used by municipal and industrial fire services. The nitrile rubber cover is what removes the wash-and-dry routine a jacketed hose needs, and it resists hydrolysis, UV, ozone, weathering, fungus and kinking. Sizes are 1.5 to 6 inch in 20 m and 30 m lengths, red or yellow. A Malaysian customer ordered 5000 m in 1.5 inch and 2.5 inch at 17 bar working pressure after comparing our sample against European hose.
Key Benefits
- Maintenance free in service, which removes the drying and storage routine for a whole fleet
- Fungus resistant, so hose is not damaged by being stored before it is fully dry
- Kink resistant for consistent pressure at the branch
- Proven on export orders including 5000 m to a Malaysian customer at 17 bar
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Red, yellow or as required |
| Size | 1.5 inch-6 inch |
| Length | 20m (66ft), 30m (100ft) or as required |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Brigades losing hose to mildew because it went back on the appliance damp
- Long lead times and high prices on European-sourced fire hose
- Jacketed hose degrading from UV and ozone in outdoor storage
Who It Is For
- Municipal and industrial fire services
- Fire equipment importers and distributors
- Facilities with fixed fire hose installations
- Agricultural users running fire-grade hose for irrigation
Photographs

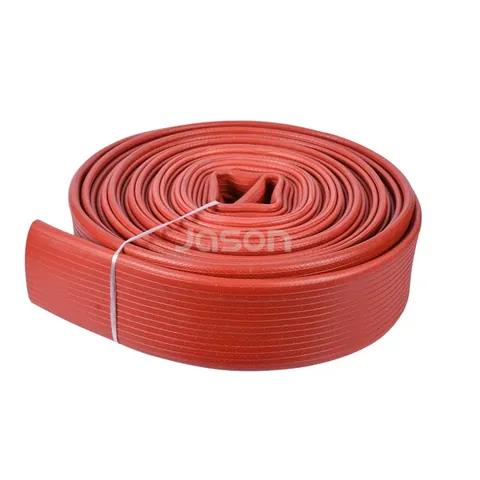

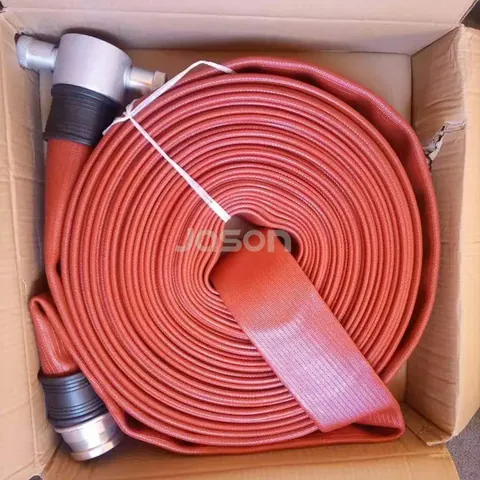

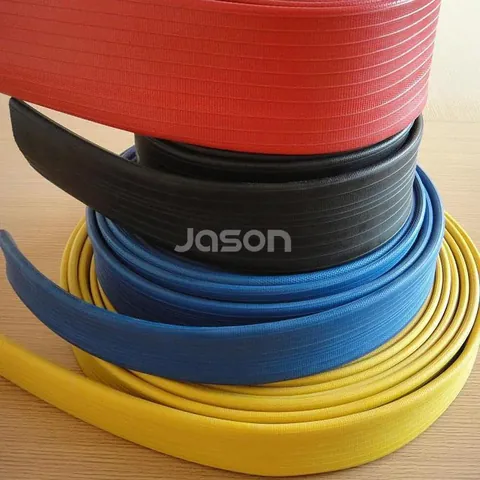

The Product as It Ships
Technical Features
- High tensile strength
- Abrasion resistant
- High adhesive strength
- Hydrolysis resistant
- UV
- Ozone and weathering resistant
- Fungus resistant
- Kink resistant
Application Scenarios
- Fire fighting
- Irrigation
Manufacturing and Quality
How It Is Made and Checked
Production Process of NBR Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Confirm the working pressure required for your system before ordering
- Wipe down after use rather than a full wash and dry
- Inspect the cover for cuts at the coupling collar
- Store rolled and off the ground
- Keep a record of each length so the fleet is rotated evenly
Comparison
How It Compares With Our Other Products
| Duraline Fire Hose | Duraline is the BS 6391:2009 Type 3 compliant version in 1.5 to 3.5 inch, where this range runs up to 6 inch |
|---|---|
| Canvas Fire Hose | Canvas is lighter and cheaper, where this rubber cover removes the maintenance routine |
Related Products
Other Products in the NBR Layflat Hose Range
Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
View specifications
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
View specifications
Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
View specificationsFAQ
Questions About the Rubber Covered Fire Hose
What sizes do you make
1.5 inch to 6 inch.
What lengths are available
20 m (66 ft) and 30 m (100 ft), or as required.
Can you supply 17 bar working pressure
Yes. A 5000 m order to a Malaysian customer was supplied in 1.5 inch and 2.5 inch at 17 bar working pressure.
Why is it described as maintenance free
The nitrile rubber cover does not need the washing and drying routine a woven jacket hose needs, and it resists fungus, UV and ozone.
Which colours are standard
Red and yellow, with other colours to order.
Can I get a sample before ordering
Yes. Customers regularly compare our sample against their current supply before placing an order.
Request a Quote on the Rubber Covered Fire Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
