NBR Layflat Hose
Irrigation Supply Hose
The irrigation supply hose is a premium layflat hose for agricultural irrigation, liquid fertiliser and slurry pumping.
Product Overview
What This Hose Is Built To Do
The irrigation supply hose is a premium layflat hose for agricultural irrigation, liquid fertiliser and slurry pumping. It is made from a blend of nitrile rubber and PVC reinforced with high pressure filament polyester yarn, which is what gives it both chemical tolerance and a long outdoor life. Sizes are 2 to 12 inch, and it is the only hose in our range offered in five standard lengths from 30 m up to 200 m.
Key Benefits
- Five standard lengths from 30 m to 200 m so a field run can be built without offcuts
- Nitrile rubber and PVC blend tolerates liquid fertiliser as well as water
- Excellent UV and weather resistance for hose that stays in the field all season
- Abrasion resistance against stubble, soil and headland wear
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality nitrile rubber |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Black or as required |
| Size | 2 inch-12 inch |
| Length | 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft) |
| Temperature | -30°C～+100°C(-22°F to 212°F ) |
Problems It Solves
Why Buyers Move To This Product
- Wasted hose and extra couplings when only one stock length is available
- Fertiliser attacking a hose specified for clean water only
- Cover degradation over a full season of sun exposure
Who It Is For
- Arable and irrigated crop farms
- Agricultural irrigation contractors
- Liquid fertiliser application operators
- Slurry pumping contractors
Photographs

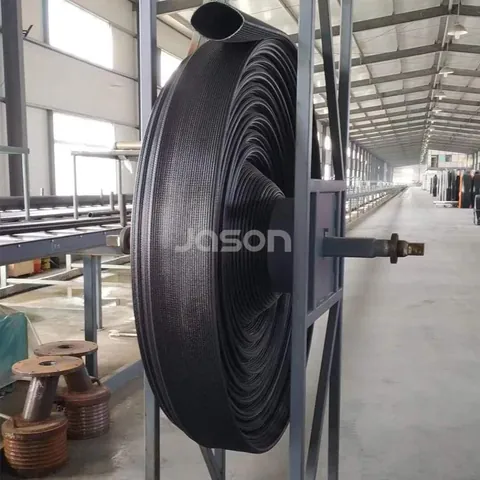

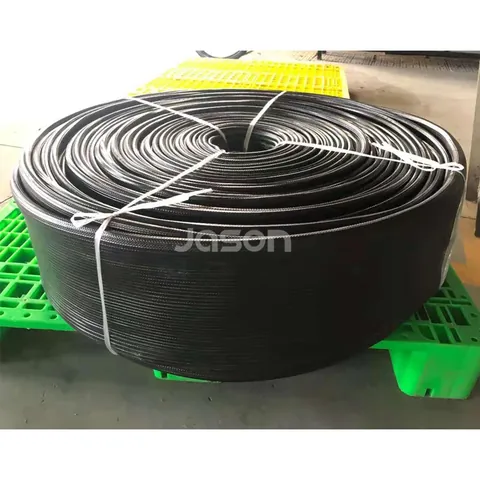

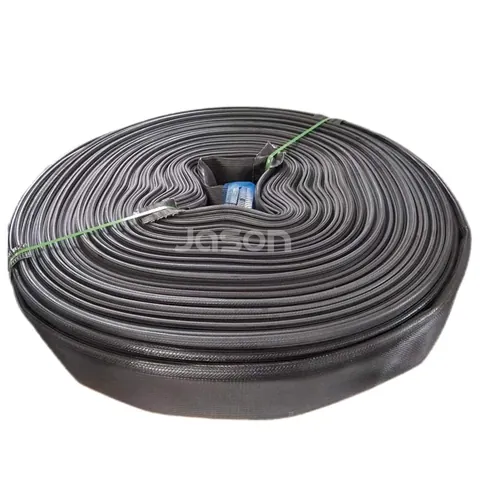

The Product as It Ships
Technical Features
- Abrasion resistance
- Flexibility
- Excellent UV and weather resistance
- Long lifetime and etc
Application Scenarios
- Agricultural irrigation
- Liquid fertilizer and pumping of slurry
Manufacturing and Quality
How It Is Made and Checked
Production Process of Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Pick the closest standard length to the run so joints are minimised
- Flush after liquid fertiliser and slurry so residue does not set in the bore
- Keep the hose off freshly cut stubble where possible
- Roll and store under cover at the end of the season
- Check the cover for UV chalking before the next season starts
Comparison
How It Compares With Our Other Products
| Drag Hose | Drag hose is TPU built to be pulled across a field under pressure, where this is the static supply line |
|---|---|
| PVC Layflat Hose | The plain PVC hose is cheaper for water, where the nitrile rubber blend here handles fertiliser and slurry and lasts longer outdoors |
Related Guides
Related Products
Other Products in the NBR Layflat Hose Range
Layflat Air Hose Plus
The layflat air hose plus is the higher pressure version of our compressed air hose, built with a double jacket of high tenacity synthetic yarn under a nitrile rubber cover and liner so it can operate at the highest working pressures in the range.
View specifications
Layflat Air Hose
The layflat air hose is a nitrile rubber compressed air hose whose flat profile is the whole point: it stores and installs where a round hose will not go, which makes it practical in confined spaces and on crowded job sites.
View specifications
Flyboard Hose
The flyboard hose connects the flyboard to the personal watercraft and carries the water that lifts the rider, so it has to take high pressure while being bent and loaded constantly through a session.
View specificationsFAQ
Questions About the Irrigation Supply Hose
What sizes do you make
2 inch to 12 inch.
Which lengths are standard
30 m (100 ft), 61 m (200 ft), 91.5 m (300 ft), 100 m (330 ft) and 200 m (660 ft).
What is the hose made from
A blend of nitrile rubber and PVC, reinforced with high pressure filament polyester yarn.
Can it carry liquid fertiliser
Yes. Agricultural irrigation, liquid fertiliser and pumping of slurry are its listed applications.
What colour is standard
Black, with other colours to order.
What is the temperature range
-30°C (-22°F) to 100°C (212°F).
Request a Quote on the Irrigation Supply Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
