PVC Layflat Hose
PVC Layflat Hose
PVC layflat hose is the full PVC range, made from 1 inch to 20 inch for water discharge and supply in agriculture, construction and civil engineering.
Product Overview
What This Hose Is Built To Do
PVC layflat hose is the full PVC range, made from 1 inch to 20 inch for water discharge and supply in agriculture, construction and civil engineering. It is light, rolls up for storage and transport, and has a smooth inner surface that keeps flow efficient. Cover and liner are PVC over high tenacity synthetic yarn, in blue, red or black, rated -20°C to 70°C.
Key Benefits
- The widest size span we offer in PVC, from a 1 inch transfer line to a 20 inch main
- Light enough to handle and roll without lifting equipment at the smaller sizes
- Smooth inner surface for efficient flow across the whole range
- Low cost per metre, which is what makes long temporary runs viable
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality PVC |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Blue, red, black or as required |
| Size | 1-20 inch |
| Length | 20m (66ft), 50m (164ft) or as required |
| Temperature | -20°C(-4°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Buying different hose brands for small and large bores on the same project
- Rigid pipe cost on lines that will be pulled up at the end of the season
- Storage and transport space consumed by non-collapsible pipe
Who It Is For
- Farms and irrigation contractors of every size
- Construction and civil engineering sites
- Hose distributors building a PVC catalogue
- Municipal water management teams

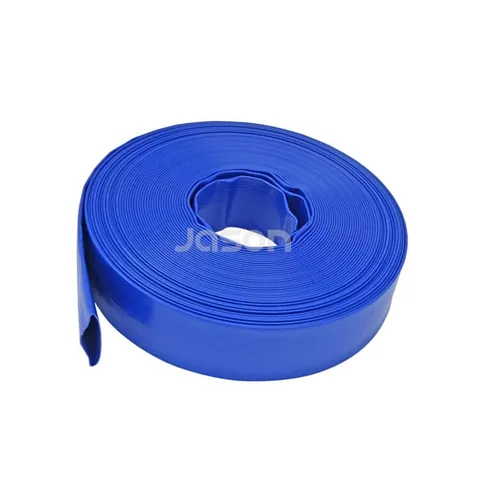

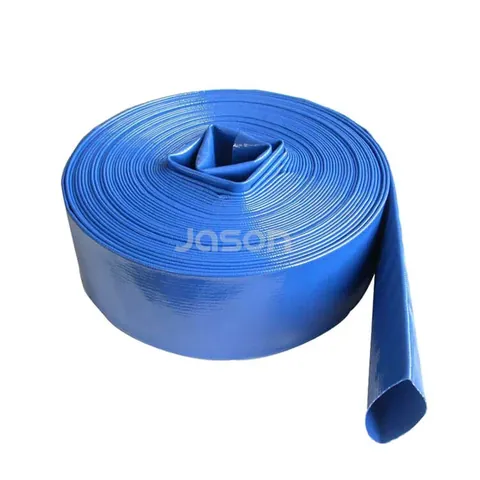

Photographs
The Product as It Ships
Technical Features
- Light weight
- Cost-saving
- Easy to storage or transport
- Abrasion resistance
- Excellent flow rates
Application Scenarios
- Water discharge and supply in agricultural
- Construction
- And civil engineering
Manufacturing and Quality
How It Is Made and Checked
Production Process of PVC Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Choose the bore from the flow you need, not from the pump outlet thread
- Keep the line free of twists before charging
- Avoid sustained contact with sharp aggregate
- Drain and dry before long storage
- Store rolls off the floor and out of sunlight
Comparison
How It Compares With Our Other Products
| Layflat Discharge Hose | Same PVC construction, where this range starts at 1 inch and the discharge hose starts at 6 inch |
|---|---|
| TPU Layflat Hose Range | TPU costs more but takes higher pressure, resists oil and chemicals and runs to -50°C, so it is specified for harsher duty |
Related Products
Other Products in the PVC Layflat Hose Range
12 Inch Discharge Hose
The 12 inch discharge hose is a DN300 PVC coated layflat hose for transferring high volumes of water quickly.
View specifications
10 Inch Discharge Hose
The 10 inch discharge hose is a heavy duty DN250 PVC layflat hose for transferring large volumes of water on industrial, construction and agricultural sites.
View specifications
8 Inch Discharge hose
The 8 inch discharge hose is a DN200 PVC layflat hose used to transfer large volumes of water and other liquids on industrial sites, construction sites and farms.
View specificationsFAQ
Questions About the PVC Layflat Hose
What sizes do you produce
1 inch to 20 inch.
What lengths are available
20 m (66 ft) and 50 m (164 ft), or as required.
What colours are standard
Blue, red and black, with other colours produced to order.
What is the difference between this and your TPU hose
PVC is lower cost for water duty. TPU takes higher pressure, handles oil and chemicals, and works down to -50°C.
What is the temperature range
-20°C (-4°F) to 70°C (158°F).
How is quality checked before shipment
All hose is tested at 1.5 times working pressure for 2 hours, and every hose carries a trace number linking it to production date, operators and raw material source.
Request a Quote on the PVC Layflat Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
