Drag hose is a TPU layflat hose used to transfer sludge, slurry and liquid manure continuously across an irrigation field, while being dragged behind the applicator.
Product Overview
What This Hose Is Built To Do
Drag hose is a TPU layflat hose used to transfer sludge, slurry and liquid manure continuously across an irrigation field, while being dragged behind the applicator. That duty is unusual: the hose is under tension and abrasion at the same time as it is under pressure. It is made in 4 to 6 inch in 200 m lengths, orange, rated -50°C to 80°C.
Key Benefits
- High tensile strength for hose that is pulled across a field under pressure
- Abrasion resistance against stubble, soil and headland surfaces
- Great adhesion between cover and lining so the wall does not separate under drag load
- UV, oil and chemical resistance for hose left out through an application season
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn |
| Color | Orange or as required |
| Size | 4 inch-6 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Hose walls separating when tension and internal pressure act together
- Covers wearing through on stubble and dry headlands
- Having to stop an umbilical run to repair a burst mid-field
Who It Is For
- Slurry and umbilical application contractors
- Livestock farms handling liquid manure
- Digestate and biogas plant operators
- Agricultural irrigation contractors

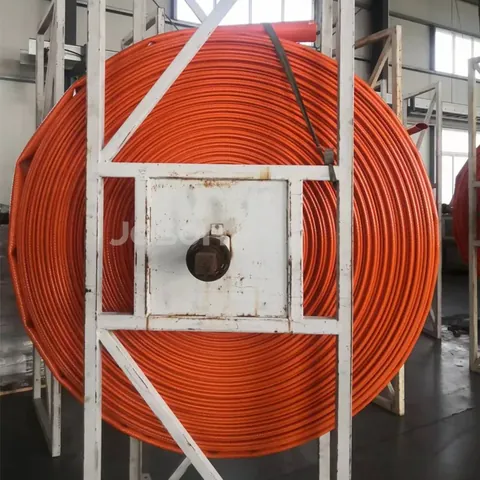

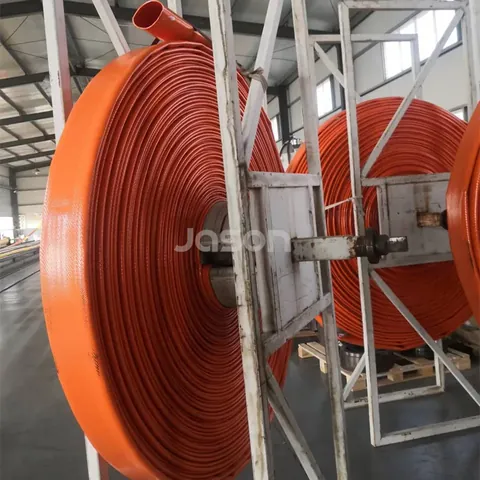

Photographs
The Product as It Ships
Technical Features
- Flexibility
- Abrasion resistance
- Great adhesion
- High tensile strength
- UV
- Oil and chemical resistance
Application Scenarios
- Transfer sludge

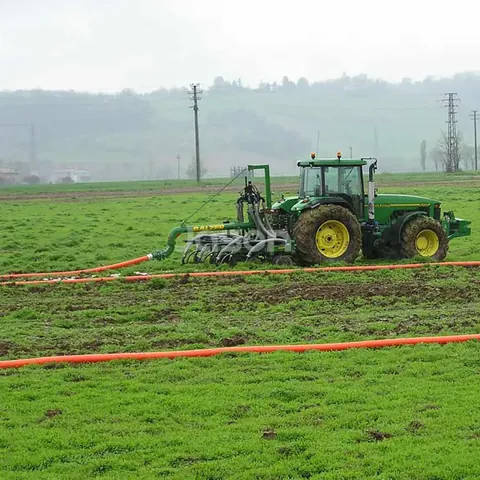

- Slurry and liquid manure in agricultural irrigation field
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Match the pull force of the applicator to the hose tensile rating
- Keep the drag line clear of gateposts and stone walls on turns
- Flush thoroughly after manure and digestate so residue does not set in the bore
- Inspect the cover at the end of each field, not at the end of the season
- Reel with even tension so the hose does not take a permanent set
Comparison
How It Compares With Our Other Products
| Irrigation Supply Hose | The irrigation supply hose is nitrile rubber and PVC for static supply lines, where drag hose is built to be pulled while running |
|---|---|
| Mine Dewatering Hose | Both are tough TPU hoses, but drag hose is specified for tensile drag load rather than underground abrasion |
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Drag Hose
What sizes do you make
4 inch to 6 inch.
What length is standard
200 m (660 ft), or as required.
Can it handle liquid manure and digestate
Yes. Sludge, slurry and liquid manure transfer is exactly what it is designed for.
What colour is it
Orange, or another colour to order.
Do you supply drag hose couplings
Yes. Our drag hose coupling is made in aluminium in 4 to 8 inch (DN100 to DN200) for this duty.
How does it resist being dragged
It combines high tensile strength, abrasion resistance and strong adhesion between cover and lining.
