TPU Layflat Hose
Fuel Transfer Hose
The fuel transfer hose moves oil, fuel, chemicals and waste water.
Product Overview
What This Hose Is Built To Do
The fuel transfer hose moves oil, fuel, chemicals and waste water. Antistatic material is compounded into the polyurethane and several copper wires run through the reinforcement layer to the coupling, so static generated by flowing fuel has a path to earth. Sizes are 2 to 8 inch in 200 m lengths, green, rated -50°C to 80°C.
Key Benefits
- Antistatic compound plus copper wires bonded through to the coupling give a continuous earth path
- Oil and chemical resistant TPU wall for sustained hydrocarbon duty
- 200 m lengths for temporary fuel lines over distance
- UV resistance for lines left in place on open sites
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Cover and Liner | High quality TPU |
|---|---|
| Reinforcement | High tenacity synthetic yarn(With copper wires available inside to be anti-static) |
| Color | green or as required |
| Size | 2 inch-8 inch |
| Length | 200m(660ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Static build-up on a flowing fuel line, which is a safety problem before it is a technical one
- Temporary fuel transfer where installing pipe is not practical
- Hose degradation from sustained contact with fuel and chemicals
Who It Is For
- Fuel distribution and bulk transfer operators
- Armed forces and naval fuel supply units
- Hydraulic fracturing operations
- Industrial sites moving chemicals and waste water

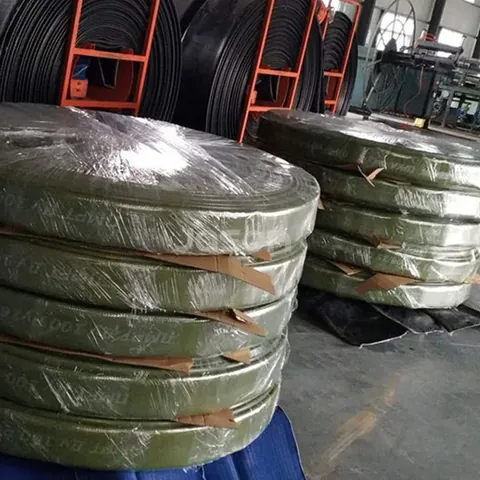

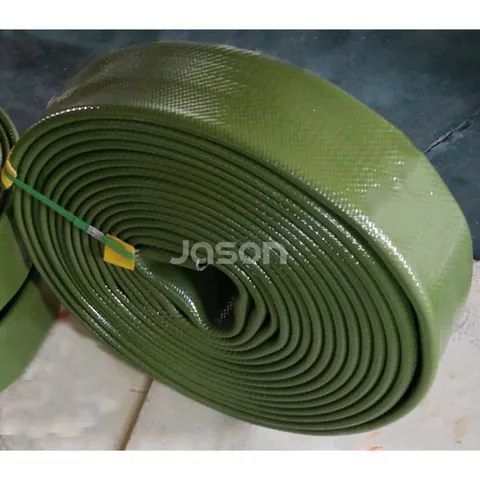

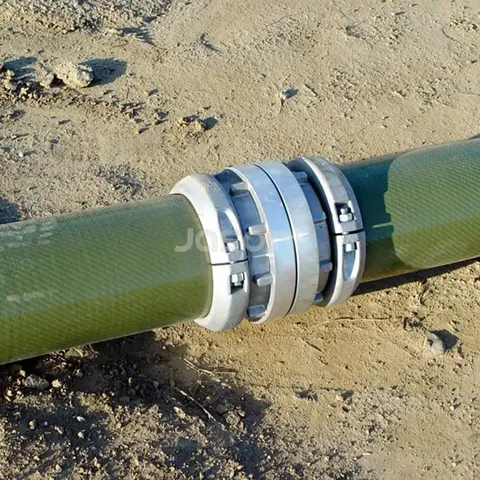

Photographs
The Product as It Ships
Technical Features
- Antistatic
- High pressure
- Oil and chemicals resistance
- UV resistance
- Safe and easy Iinstallation
- Long service time
Application Scenarios
- Temporary oil and fuel transfer
- Army and ship fuel(oil) supply
- Hydraulic fracturing
Manufacturing and Quality
How It Is Made and Checked
Production Process of TPU Layflat Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Confirm the copper wire earth path is continuous to the coupling before first use
- Bond and earth the system at both ends as your site procedure requires
- Keep the line out of direct sunlight where the route allows
- Purge before storage so fuel does not sit in the bore
- Inspect at the couplings, where the wires terminate
Comparison
How It Compares With Our Other Products
| Fracking Hose | Fracking hose is the larger 8 to 16 inch version for frac and produced water, also available with copper wires |
|---|---|
| Layflat Supply Hose | The supply hose is for water at high pressure, where this one adds the antistatic system for fuel |
Related Guides
Related Products
Other Products in the TPU Layflat Hose Range
12 Inch Layflat Hose
The 12 inch layflat hose is a DN300 TPU hose used for high volume water transfer in agriculture, firefighting, oil and gas and general industry.
View specifications
10 Inch Layflat Hose
The 10 inch layflat hose is a DN250 TPU hose designed to be transported, stored and deployed quickly, which is what makes it the usual choice for emergency response, irrigation and water transfer projects.
View specifications
8 Inch Layflat Hose
The 8 inch layflat hose is a DN200 TPU hose for long-distance water supply in firefighting, emergency flood removal, industrial bulk discharge and frac solution transfer.
View specificationsFAQ
Questions About the Fuel Transfer Hose
How does the antistatic system work
Antistatic material is added to the polyurethane, and several copper wires are attached into the reinforcement layer and reach the coupling.
What sizes do you make
2 inch to 8 inch.
What length is standard
200 m (660 ft), or as required.
What fluids can it carry
It is designed for oil, fuel, chemicals and waste water. Send your exact fluid and we will confirm suitability.
What colour is standard
Green, with other colours to order.
Can you supply it already fitted with couplings
Yes, and the copper wires are taken through to the coupling as part of that assembly.
Request a Quote on the Fuel Transfer Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
