Fire Hose
Hot Water Hose
Hot water hose is a layflat hose lined in EPDM or NBR for hot water, limewater and waste water transfer.
Product Overview
What This Hose Is Built To Do
Hot water hose is a layflat hose lined in EPDM or NBR for hot water, limewater and waste water transfer. The liner choice sets the ceiling: EPDM runs from -45°C to 150°C, NBR from -30°C to 100°C. It is made in 1.5 to 6 inch in 20 m and 30 m lengths, so a bathhouse, hotel plant room or process line can be piped temporarily without steel.
Key Benefits
- Two liner options give a clear choice between 150°C EPDM and 100°C NBR duty
- Acid and alkali resistance suits limewater and treated waste streams
- Layflat form makes a temporary hot line possible where rigid pipe is impractical
- Flexible and durable under repeated thermal cycling
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality EPDM/NBR |
|---|---|
| Color | White or as required |
| Size | 1.5-6 inch |
| Length | 20m(66ft), 30m (100ft) or as required |
| Temperature | -45°C～+150°C(–49 °F to 302 °F ) for EPDM, -30°C～+100°C(-22°F to 212°F ) for NBR |
Problems It Solves
Why Buyers Move To This Product
- Ordinary hose hardening and splitting on a hot water line
- Temporary hot water runs during plant maintenance with no time to install pipe
- Chemical attack on the liner from limewater and treated effluent
Who It Is For
- Bathhouse, hotel and leisure plant maintenance teams
- Industrial process plants moving hot process water
- Waste water treatment operators
- Contractors running temporary hot service lines

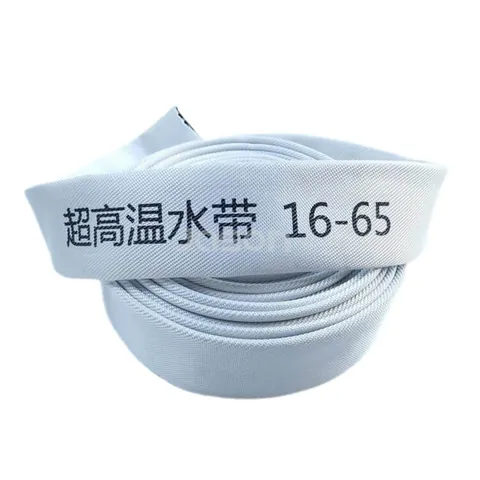

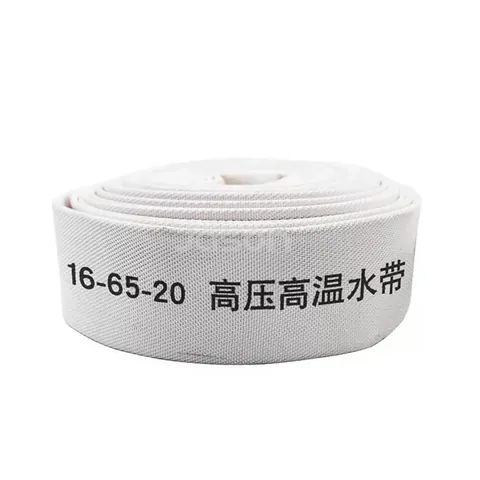

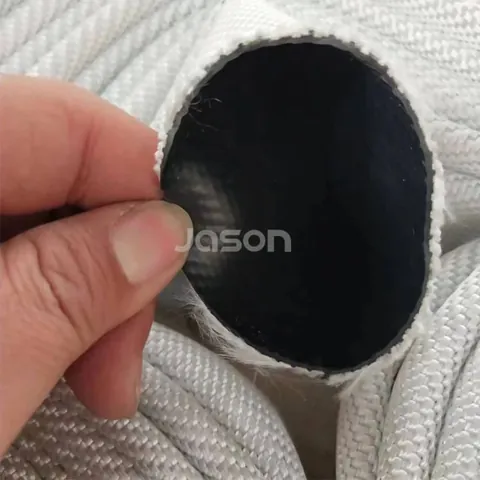

Photographs
The Product as It Ships
Technical Features
- High temperature resistance
- Acid and alkali resistance
- High-pressure
- Flexible
- Durable
- Abrasion resistance
- Long lifetime and reliable performance and etc
Application Scenarios
- Hot water
- Limewater
- Waste water transfer in different industries
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Choose EPDM where the line will see above 100°C and NBR where oil resistance matters more
- Bring the line up to temperature gradually rather than shocking it
- Keep the run clear of foot traffic while it is hot
- Flush after limewater duty so deposits do not build on the liner
- Inspect the liner at the couplings, where thermal movement concentrates
Comparison
How It Compares With Our Other Products
| Doctor Blade Air Hose | Both are high temperature hoses, but this one carries hot liquid where the doctor blade hose carries hot compressed air |
|---|---|
| Canvas Fire Hose | Canvas fire hose offers a similar liner choice but is specified for firefighting duty rather than sustained hot water transfer |
Related Guides
Related Products
Other Products in the Fire Hose Range
10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
View specifications
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specificationsFAQ
Questions About the Hot Water Hose
How hot can the hose run
Up to 150°C (302°F) with the EPDM liner, or 100°C (212°F) with NBR.
What sizes are available
1.5 to 6 inch.
What lengths do you supply
20 m (66 ft) and 30 m (100 ft), or as required.
Is it suitable for limewater
Yes. Hot water, limewater and waste water transfer are its listed applications.
Which liner do you recommend for waste water
It depends on temperature and chemistry. Send the details and we will specify EPDM or NBR.
What colour is standard
White, with other colours to order.
Request a Quote on the Hot Water Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
