Fire Hose
Canvas Discharge Hose
Canvas discharge hose is a TPU-lined layflat hose in 6 to 12 inch, built for pumping large volumes of water in emergency drainage, construction dewatering, irrigation supply and firefighting.
Product Overview
What This Hose Is Built To Do
Canvas discharge hose is a TPU-lined layflat hose in 6 to 12 inch, built for pumping large volumes of water in emergency drainage, construction dewatering, irrigation supply and firefighting. The woven jacket gives it the canvas feel that crews recognise, while the TPU lining carries the flow and the abrasion. Lengths are 20 m and 30 m, and it works from -50°C to 80°C.
Key Benefits
- 6 to 12 inch range covers site dewatering through to major drainage in one product family
- Layflat form stores and transports at a fraction of the charged volume
- Abrasion resistant for repeated deployment on rubble and roadway
- Excellent flow rates keep pump efficiency high over long runs
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Liner | High quality TPU |
|---|---|
| Color | White or as required |
| Size | 6-12 inch |
| Length | 20m(66ft), 30m (100ft) or as required |
| Temperature | -50°C～+80°C(-60°F to 176°F ) |
Problems It Solves
Why Buyers Move To This Product
- Emergency drainage jobs where rigid pipe cannot be assembled fast enough
- Hose cover failing where it crosses site traffic routes
- Storage and haulage cost of keeping large bore pipe on standby
Who It Is For
- Construction dewatering contractors
- Municipal drainage and flood teams
- Agricultural irrigation suppliers
- Fire and emergency services needing bulk water movement

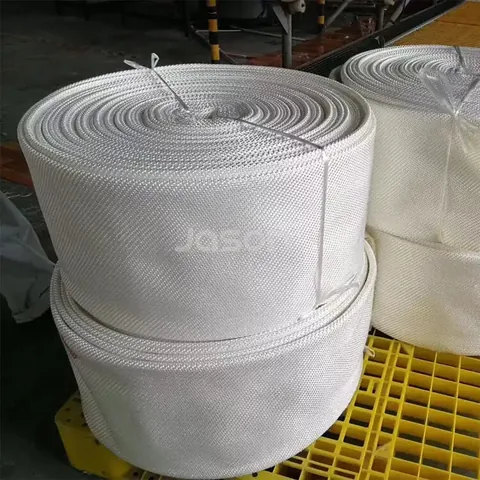

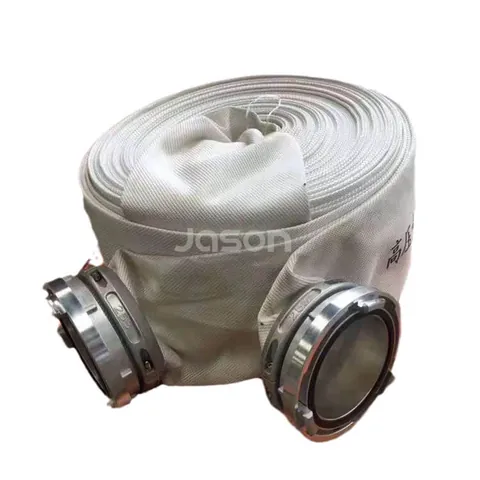

Photographs
The Product as It Ships
Technical Features
- Large size
- High-pressure
- Flexible
- Durable
- Abrasion resistance
- Long service life
- Excellent flow rates and etc
Application Scenarios
- Emergency drainage
- Construction dewatering
- Agriculture irrigation supply and firefighting
Manufacturing and Quality
How It Is Made and Checked
Production Process of Fire Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Roll out fully before charging so the hose does not snake under pressure
- Protect the run with ramps where it crosses a vehicle route
- Match the coupling type across the whole relay so lengths interchange
- Drain and dry before rolling for storage
- Keep rolls off a wet floor to protect the jacket
Comparison
How It Compares With Our Other Products
| Canvas Fire Hose | Canvas fire hose runs 1 to 12 inch with a choice of four liner materials for firefighting, where this one is specified for bulk discharge |
|---|---|
| Layflat Discharge Hose | The PVC layflat version is lower cost for routine transfer, where the TPU wall here handles cold and abrasion better |
Related Guides
Related Products
Other Products in the Fire Hose Range
10 Inch Fire Hose
The 10 inch fire hose is a DN250 TPU layflat supply line used in heavy duty firefighting systems, large agricultural schemes and water discharge during construction, mining and floods.
View specifications
8 Inch Fire Hose
The 8 inch fire hose is a DN200 TPU layflat supply hose used as the feed line in heavy duty firefighting systems and large agricultural systems, and for water discharge in construction, mining and floods.
View specifications
Doctor Blade Air Hose
The doctor blade air hose delivers pressurised air to the doctor blade chamber in paper making and printing, where the blade has to stay in constant contact with the cylinder.
View specificationsFAQ
Questions About the Canvas Discharge Hose
What size range do you make
6 to 12 inch.
What lengths are standard
20 m (66 ft) and 30 m (100 ft), or as required.
What is the liner material
High quality TPU.
What is the temperature range
-50°C (-60°F) to 80°C (176°F).
Can it be used for firefighting as well as dewatering
Yes. Firefighting is one of its listed applications alongside emergency drainage and irrigation supply.
How quickly can you produce an order
Lead time depends on size and quantity. Send your requirement on WhatsApp for a confirmed date.
Request a Quote on the Canvas Discharge Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
