S5735-L24T4X-A1
Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols pro...
- Capacity
- 512 MB
- Form Factor
- Basic dimensions (excluding the parts protruding from the...
- Maximum power consumption [W]
- 45.6 W
- Rated MTBF
- 62.05 year
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

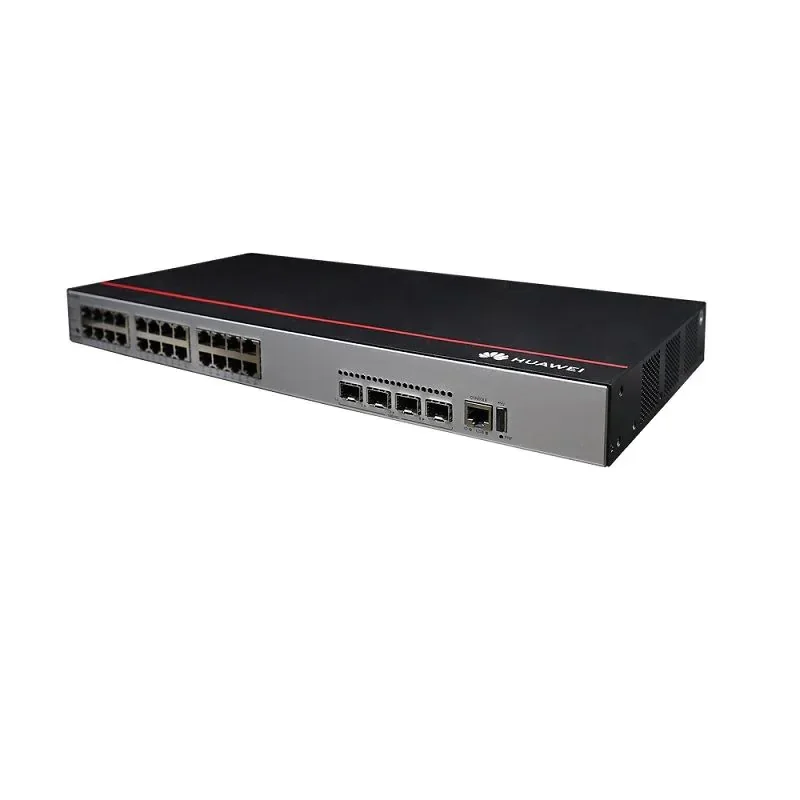

S5735-L24T4X-A1 Overview
Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols providing higher performance and more powerful service processing capabilities for networks. The published specification for S5735-L24T4X-A1 lists 512 MB of capacity. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning S5735-L24T4X-A1 Changes
Capacity Matched to the Installed Platform
512 MB supplied against a stated chassis or array generation, so acceptance is confirmed before despatch rather than at the rack.
Support Registered Under the End User Name
A vendor support contract for S5735-L24T4X-A1 is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your S5735-L24T4X-A1 consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against S5735-L24T4X-A1 before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points S5735-L24T4X-A1 Removes
- Power supply and fan tray options that differ between otherwise identical SKUs
- Optical modules that have to match Huawei's own compatibility list
- Estates mixing CloudEngine and S series without a single spares standard
- End of sale announcements that leave a proven design with no supply route for S5735-L24T4X-A1
- Regional channels where the same S series model is quoted at four different lead times
Who It Is For
Who Benefits Most From S5735-L24T4X-A1
Branch Network Teams
Rolling out one site design across many locations on a fixed bill of materials
Service Providers
Deploying managed hardware at customer premises with consistent revision and firmware
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Specifications
S5735-L24T4X-A1 Manufacturer Specification
As published by Huawei for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
|---|---|
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 33.2 W |
| Typical heat dissipation [BTU/hour] | 113.28 BTU/hour |
| Maximum power consumption [W] | 45.6 W |
| Maximum heat dissipation [BTU/hour] | 155.59 BTU/hour |
| MTBF [year] | 62.05 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 39 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [ degC( degF)] | -5 degC to +50 degC (23 degF to 122 degF) (0 m to 1800 m altitude, non-industrial optical modules) -5 degC to +55 degC (23 degF to 131 degF) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Short-term operating temperature [ degC( degF)] | Not supported |
| Restriction on the operating temperature variation rate [ degC( degF)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 degC (1.8 degF) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0 degC (32 degF). The operating temperature ranges from -5 degC to +45 degC (... |
| Storage temperature [ degC( degF)] | -40 degC to +70 degC (-40 degF to +158 degF) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | 98011302: Common mode: ±7 kV 98011302-001: Common mode: ±2 kV |
Supply Terms
How S5735-L24T4X-A1 Is Supplied
| Part Number | S5735-L24T4X-A1 |
|---|---|
| Brand | Huawei |
| Category | Huawei Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
S5735-L24T4X-A1 Against Other Models in Huawei Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | S5735-L24T4X-A1 | S6735-S48X6C | S5731-H24T4XC | S5731-H48P4XC |
|---|---|---|---|---|
| Capacity | 512 MB | - | - | - |
| Form Factor | Basic dimensions (excluding the parts protruding from the... | S6735-S48X6C (48 gigabits SFP +, 6 100Ge QSFP28, no power) | 43.6 mm x 442 mm x 420mm | 43.6 mm x 442 mm x 420mm |
| Maximum power consumption [W] | 45.6 W | - | - | - |
| Rated MTBF | 62.05 year | - | - | - |
| Ports | - | - | 24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Maximum power consumption | - | - | 114 W | - 132 W (without PD) - 1750 W (with PD, PD power consumption of... |
| Product page | View S5735-L24T4X-A1 | View S6735-S48X6C | View S5731-H24T4XC | View S5731-H48P4XC |
Use Guide
Deployment Guide for S5735-L24T4X-A1
Confirm the Full Part Number
Check S5735-L24T4X-A1 character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Huawei Switches
S5731-H24T4XC
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds
S5731-H48P4XC
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds
S5731-H48T4XC
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds
S5731-S32ST4X
The Huawei S5731-S32ST4X is a versatile switch tailor for mid-sized enterprises, delivering high-performing connectivity with 8 Ethernet ports, 24 Gig
S5735-L24P4X-A1
Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flex
S5735-L32ST4X-A1
The S5735-L32ST4X-A1 from the Huawei CloudEngine S5700 Series Switches adopts 24 Gigabit SFP, 8 10/100 / 1000Base-T Ethernet port, 4 10G SFP +, AC pow
S5735-L48T4X-A1
Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flex
Where It Goes
Industries That Deploy It
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Enterprise Campus
Access, distribution and wireless supplied to one standard so every closet in every building behaves the same way.
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Solutions
Programmes It Is Supplied Under
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Data Center Switching Build
A cabinet is commissioned as a unit, so it should be supplied as one. Switches, optics, rails and power leads belong in the same consignment.
Support Contracts and SmartNet
A support contract registered under a reseller name is of limited use to the organisation that owns the outage. Entitlement is written under the end user name.
Reference
Project Cases and Guides
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
Access Point Mounting and Installation
Wireless installs are rarely delayed by the access point. They are delayed by the mount, the power class or the cable that feeds it.
Network Refresh Planning Checklist
Refresh programmes fail on supply far more often than on design. This is the sequence that keeps a phased rollout on its dates.
FAQ
S5735-L24T4X-A1 Frequently Asked Questions
Is S5735-L24T4X-A1 New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for S5735-L24T4X-A1 Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for S5735-L24T4X-A1
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does S5735-L24T4X-A1 Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
What Capacity Does S5735-L24T4X-A1 Provide
The manufacturer lists memory of 512 MB. Capacity is quoted against a named chassis or array generation, because acceptance depends on the platform rather than on the capacity alone.
Can You Ship S5735-L24T4X-A1 to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship S5735-L24T4X-A1 to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for S5735-L24T4X-A1
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
