Auto Windows Closer Adapter
Universal Power Window Roll Up Module for 2 and 4 Doors
- Closes any window left open when the vehicle is armed
- Detects and handles all four windows automatically
- Quiescent current of 6 mA or less so the battery is not drained
Product Overview
Auto Windows Closer Adapter at a Glance
A universal automatic power window roll up closer that suits any vehicle model fitted with electric lift windows. When the ignition is off and the door is closed, pressing the arming button on the remote control closes the windows automatically, one after another.
The module detects all four windows and closes any that are not properly shut. Each window is driven for less than 8 seconds. With the ignition on, the arming button has no effect on the windows, so they can only be operated from the manual switch.
Key Benefits
Why Buyers Specify This Model
Closes any window left open when the vehicle is armed
Detects and handles all four windows automatically
Quiescent current of 6 mA or less so the battery is not drained
Wire harness included, no separate loom to source
Application and Fit
Where It Is Used and Who It Is For
Application Scenarios
- Passenger cars with electric windows
- Light commercial vehicles
- 12V and 24V vehicles
- Alarm and security retrofits
Who It Is For
- Car alarm installers
- Accessory retailers
- E-commerce sellers
- Fleet operators
Problems It Solves
- Windows left open in the rain
- Interiors and electronics damaged by water
- Vehicles left insecure with a window part open
- Modules that only handle two doors
Technical Features
Technical Features
- Universal fitment to any vehicle with electric lift windows
- Automatic detection and closing of four windows
- Wire harness supplied in the box
- Rated for 12V and 24V vehicles
- Working temperature range from minus 20 to 80 degrees Celsius
Specifications
Published Specification
| Application | Any vehicle model with electric lift windows |
|---|---|
| Doors | 2 and 4 door configurations |
| Window detection | Automatic detection of four windows |
| Activation time | Less than 8 seconds per window |
| Quiescent current | 6 mA or less |
| Load current | 15 A or less |
| Working temperature | -20 to 80 degrees Celsius |
| Suitable car type | 12V and 24V vehicles |
| Module size | 7.7 cm x 5.8 cm x 2.6 cm (3.03 x 2.28 x 1.02 inch) |
| Package contents | 1 x auto power window closer, 1 x wire harness |
| Condition | 100% brand new |
| Colour | As shown in the product photographs |
These are the specifications published for this model. Confirm the figures that matter to your order in writing with your contact before production.
Materials
Materials and Construction

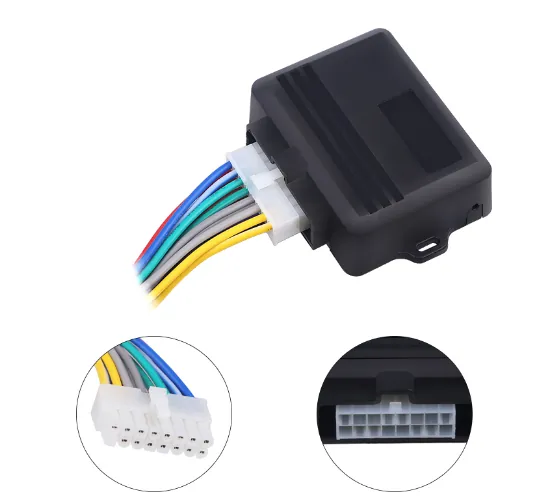

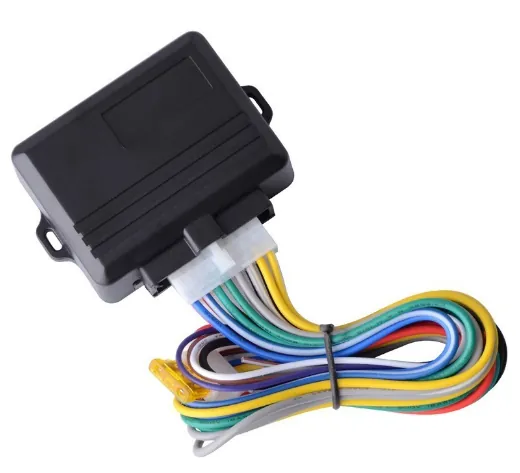

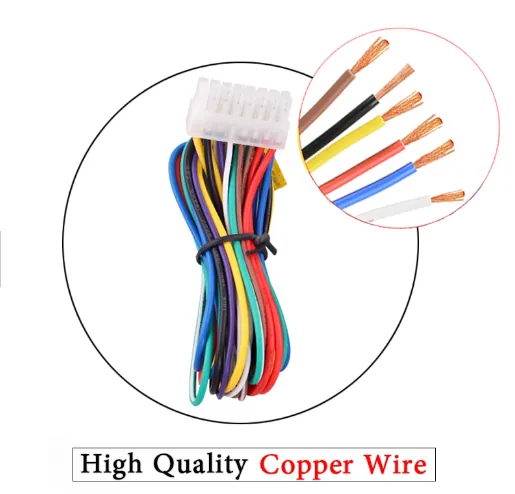

The module is a moulded plastic housing measuring 7.7 x 5.8 x 2.6 cm, with a multi pin connector and a supplied wire harness. The product photographs show the copper wire harness supplied with the module.
Manufacturing Process
How It Is Made
Manufactured at our Guangzhou facility. Specification is fixed first, a physical sample is built and approved, components are sourced against the approved sample, the unit is assembled and sealed, then function checked and packed. Production is carried out strictly in accordance with the ISO9001 standard.
Quality Control
Quality Control Steps
- Incoming component check against the approved sample specification
- Assembly with gasket compression and cable gland made off on sealed housings
- Power up and image output check on every unit
- Infrared or assist lamp function check where the model has them
- Final visual and packaging check before carton packing
Certifications
Certifications Held on the Range
- ISO9001
- IP68
- CE
- FCC
- RoHS
- E-mark
Certificates apply to specific models and test reports. Ask for the certificate covering the exact model you are ordering rather than a general company document.
Customization
Customization Options
- Housing colour and surface finish
- Cable length made to the routed distance on your vehicle
- Connector type, 4 pin aviation or RCA, or to your drawing
- Label and silkscreen artwork under your own brand
- Retail box, inner packing and printed manual
- Carton marking and quantity per carton
Comparison
Compared With Other Products in the Range
| Auto Windows Closer Adapter | Auto Mirror Folding | 8th Generation Android Multimedia | |
|---|---|---|---|
| Range | Window Closers | Mirror Folding | Car Multimedia |
| Built for | Universal Power Window Roll Up Module for 2 and 4 Doors | Intelligent Door Mirror Folding Module for Corolla Levin and Camry | 9 Inch Android Head Unit for Honda Accord 2008 to 2013 |
| Primary application | Passenger cars with electric windows | Toyota Corolla | Honda Accord 2008 to 2013 |
| Main advantage | Closes any window left open when the vehicle is armed | Folds and unfolds without any action from the driver | Built to the Honda Accord fascia so no trim is cut at fitting |
If you are unsure which of these fits your vehicle, send a photo of the mounting position and we will tell you which one to order.
Use Guide
Installation and Use Guide
The fitting sequence for this module. Work through it in order and test before refitting the trim.
- 01
Confirm the vehicle
Check that the vehicle has electric lift windows on the doors to be automated and note whether it is a 12V or 24V system.
- 02
Locate the window switch loom
Find the driver door switch pack or the body control harness where the window up and down lines are accessible.
- 03
Connect the module harness
Wire the supplied harness to the window motor lines, the ignition ACC feed and the arming signal from the alarm or central locking.
- 04
Mount the module
Fix the module inside the trim in a dry position away from the door membrane and any moving mechanism.
- 05
Test the sequence
With the ignition off and the door closed, press the arming button and confirm each window drives up and stops at the top.
- 06
Test the lockout
Switch the ignition on and press the arming button again to confirm the windows do not respond and only the manual switch operates them.
Applications
Industries This Product Serves
Knowledge
Related Guides
Downloads
Documents for This Product
Explore
Related Products
Mirror FoldingAuto Mirror FoldingIntelligent Door Mirror Folding Module for Corolla Levin and Camry
View Product
Car Multimedia8th Generation Android Multimedia9 Inch Android Head Unit for Honda Accord 2008 to 2013
View Product
Vehicle CamerasCar Backup CameraFlush Barrel Camera for a Clean Bumper Installation
View Product
Dash CamerasDash CameraSingle Lens Windshield Recorder With a Wide Aperture Lens
View ProductFAQ
Auto Windows Closer Adapter FAQ
What is the MOQ on the Auto Windows Closer Adapter?
MOQ varies by model and by how much customisation the order carries. Send your quantity and destination market and we will confirm the MOQ in writing with the quotation.
Can this product be supplied under our own brand?
Yes. OEM and ODM service covers housing colour, cable and connector specification, label artwork, printed manual and retail packaging.
Which certificates cover this product?
Our product range holds IP68, CE, FCC, RoHS and E-mark certificates, and production is carried out strictly in accordance with the ISO9001 standard. Ask for the certificate covering this exact model before shipping.
How is it packed and shipped?
Carton packing, with retail boxes and inner packing where the order calls for them. Shipment by express, air, land or sea, with sea shipments loading at Shenzhen or Guangzhou.
Can I get a sample before placing a production order?
Yes. Samples are dispatched for physical approval before production. Ask for a sample through WhatsApp or email and we will confirm the cost and the lead time.
Do you have a CAD file or drawing available?
CAD files are not published for download. Request a CAD file or a dimensioned drawing through WhatsApp or email and we will send it directly once the application is confirmed.
Next Step
Get a Quotation on the Auto Windows Closer Adapter
Send your quantity, destination market and any customisation you need. We will come back with price, MOQ and lead time.
