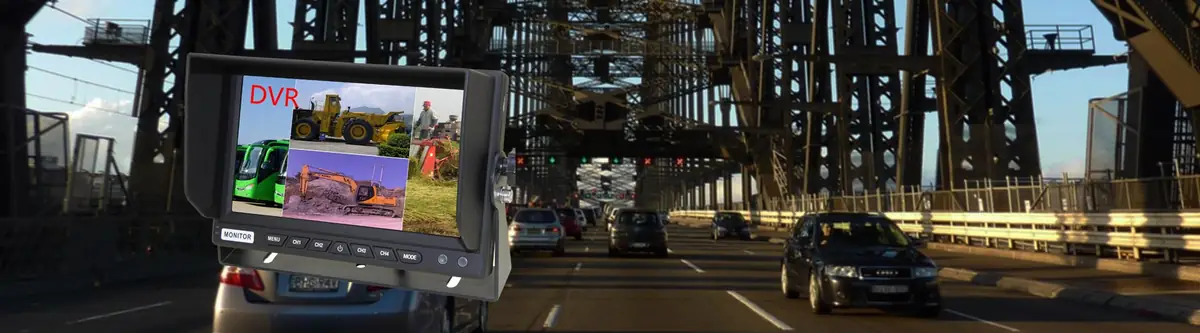

Commercial Vehicles and Fleets application for vehicle camera systems

Industry Application

Commercial Vehicles and Fleets

Rear and Side Vision for Trucks Vans and Trailers

Get A Custom Solution See All Products

Industry Pain Points

What Goes Wrong in This Sector

Pain Points

  • A rigid body or a trailer leaves a blind zone behind the vehicle that mirrors cannot cover
  • Low speed reversing damage is the most frequent and most expensive fleet claim category
  • Cameras fitted from a general electronics supplier fail after one wet season
  • Mixed camera and monitor sources create connector and signal mismatches at fitting

What Buyers Need

  • Sealed housings that survive spray wash and winter salt
  • Screw locking connectors that do not vibrate loose
  • A single monitor part number that covers one, two and three camera vehicles
  • Consistent supply so a retrofit programme can run across a whole fleet

Recommended Products

Parts That Answer These Problems

Each product page sets out the mounting position it was designed for and the specification we publish.

Backup Camera - Heavy Duty Bracket Camera for Trucks Trailers and Machines Vehicle CamerasBackup CameraHeavy Duty Bracket Camera for Trucks Trailers and Machines View Product Side Camera - Wedge Housing Camera for Corner and Kerb Side Views Vehicle CamerasSide CameraWedge Housing Camera for Corner and Kerb Side Views View Product Vehicle Side Camera - Smooth Wedge Housing for Exposed Flank Positions Vehicle CamerasVehicle Side CameraSmooth Wedge Housing for Exposed Flank Positions View Product 7 Inch Vehicle Monitor - 7 Inch Commercial Vehicle Display for Multi Camera Systems Vehicle Monitors7 Inch Vehicle Monitor7 Inch Commercial Vehicle Display for Multi Camera Systems View Product Dome Camera - Ceiling Mount Dome With a 4 Pin Aviation Connector Vehicle CamerasDome CameraCeiling Mount Dome With a 4 Pin Aviation Connector View Product 7 Inch Stand Alone Monitor - 7 Inch TFT Monitor Supplied With a Remote Control Vehicle Monitors7 Inch Stand Alone Monitor7 Inch TFT Monitor Supplied With a Remote Control View Product

Typical Scenarios

Typical Application Scenarios

  • Reversing a rigid truck onto a loading dock with no banksman available
  • Turning a long vehicle across a cycle lane where the near side is out of mirror view
  • Coupling and uncoupling a trailer in a dark yard
  • Manoeuvring in a customer yard with restricted space and no ground guide

Solution Flow

Solution Process From Survey to Rollout

  1. 01

    Survey the vehicle types

    List the body types, mounting positions and the number of camera views each vehicle needs.

  2. 02

    Select housings by position

    Bracket cameras for the rear face, wedge cameras for the flanks, domes for the cargo area.

  3. 03

    Fix the connector standard

    Standardise on 4 pin aviation across the fleet so any camera works with any monitor.

  4. 04

    Sample and fit one vehicle

    Prove the harness routing and the screen position on one vehicle before the bulk order.

  5. 05

    Roll out and stock spares

    Order the fleet quantity together with a spares holding of cameras and cables.

Delivery Capability

What We Can Deliver

  • Cameras and monitors shipped together so the system arrives matched
  • Cartons packed for sea and air freight from Shenzhen or Guangzhou
  • OEM and ODM service on cable length connector and labelling
  • Production carried out in accordance with the ISO9001 standard

See the Supply Programme

Solutions

Solutions That Apply Here

SolutionOEM and ODM ManufacturingYour Brand Built on a Product Line Running Since 2005SolutionCamera and Monitor System MatchingOne Supplier for the Camera the Screen and the Cable Between ThemSolutionSourcing and Supply ProgrammeFrom First Sample to Repeat Container Orders

Knowledge

Related Knowledge Articles

Buying GuideHow to Choose a Vehicle Backup CameraMounting position decides the housing, the vehicle decides the connector, and the number of views decides the screen. Work through it in that order.Design GuideRCA and 4 Pin Aviation Connectors ExplainedTwo connector standards dominate vehicle camera systems. Choosing the wrong one for the vehicle is the most common cause of an installation that has to be redone.Material GuideIP68 and What Waterproof Ratings Actually MeanThe two digits in an IP code describe different things. Knowing which digit matters for your mounting position is the difference between a camera that lasts and one that does not.

FAQ

Commercial Vehicles and Fleets FAQ

Which cameras do you recommend for commercial vehicles and fleets?

The recommended products on this page are the starting point. The final answer depends on the mounting positions available on your vehicles and how many views the driver needs live, so send photos of the vehicle and we will match the housings.

Can you supply cameras, monitors and cables as one order?

Yes, and it is the recommended way to buy. Sourcing the whole chain from one supplier removes connector and signal format mismatches that otherwise appear at fitting.

Do you support retrofit programmes across a whole fleet?

Yes. The usual sequence is to prove one vehicle first, then place the fleet order together with a spares holding of cameras and cables.

What are your export terms?

Payment by T/T, shipment by express, air, land or sea, with sea shipments loading at Shenzhen or Guangzhou. Our products are already exported to Europe, America, Southeast Asia and most of the Middle East.

Next Step

Specify a System for Commercial Vehicles and Fleets

Send the vehicle types and the views you need covered. We will match the housings, the screen and the cable lengths.
