Y Strainer Screens
Replacement insert screens for Y type strainers

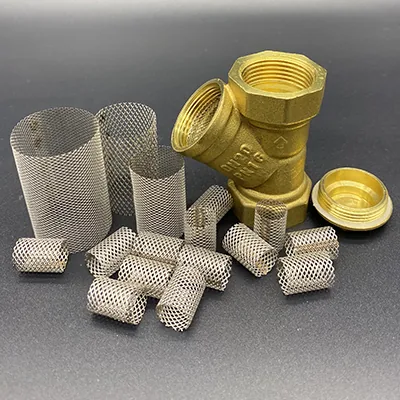

- Replacement screens for Y strainer

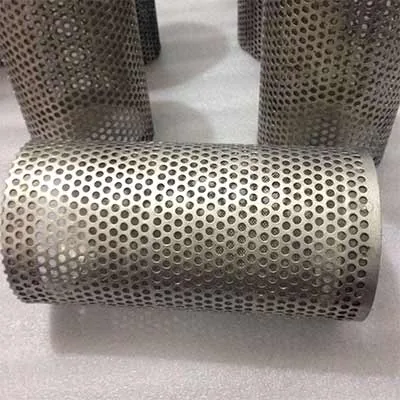

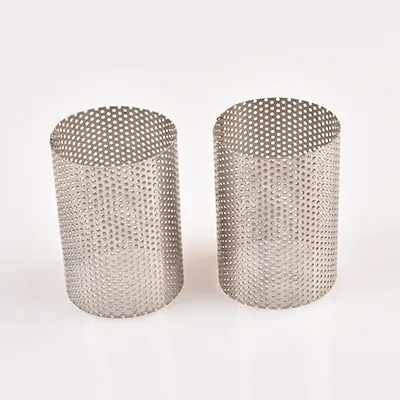

- Single layer: wire cloth or perforated metals

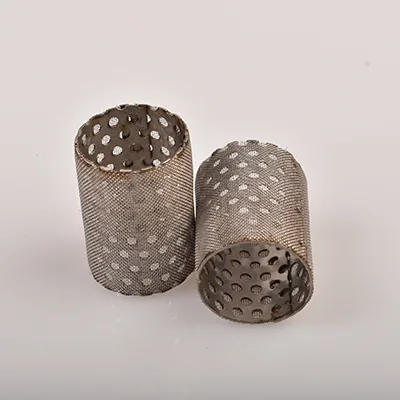

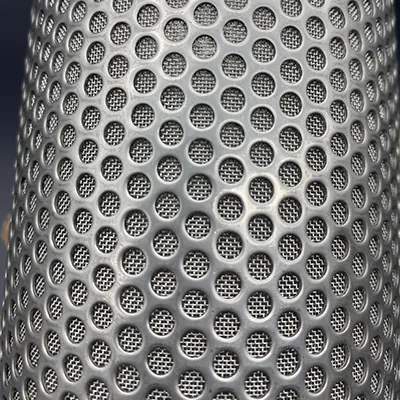

- Multilayers: perforated metals outside, wire cloth lining
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Y Strainer Screens Does
Y Strainer Screens are an important filtration component in the Y Strainers, these screens can remove unwanted matter and protect devices and equipment.
These screens can be made of wire cloth, expanded metal, or perforated metal, the wire cloth type is used for miniature strainers, and the perforated metal is used for coarse filtering of the larger strainer, the perforated metal lined with stainless steel mesh type is commonly used in fine filtration.
Y strainer screens are simple and easy to install. We can produce a variety of replacement screens for the Y strainers as you request, all specifications can be customized.
Technical Features
Specifications And Materials
| Material | stainless steel 304 / 316 / 316L |
|---|---|
| Filtration Construction | simplex perforated basket / perforated basket with cloth liner / wire cloth only |
| Diameter | can be customized to your requirements |
| Length | can be customized to your requirements |
| Filtration range | wire cloth from 2 mesh up to 500 mesh, perforated screens from 0.4mm up to 1 inch |
Application
Who It Is For And What It Solves
Who It Is For
- Pipeline and process plant maintenance
- Valve and strainer manufacturers
- Marine and shipyard supply
- Brewing and food process lines
Problems It Solves
- Original screens that are damaged, blinded or discontinued get replaced without changing the strainer body
- Filtration precision is matched to the duty instead of to whatever the housing shipped with
- Sizes, handles, ring dimensions and bottom caps follow your drawing
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Fluid Strainers & Filters
| Product | Material | Filtration Or Range |
|---|---|---|
| Y Strainer Screens | stainless steel 304 / 316 / 316L | simplex perforated basket / perforated basket with cloth liner / wire cloth only |
| T Strainer Screens | stainless steel 304 / stainless steel 316 / mild steel / other alloys | simplex perforated basket / perforated basket with cloth liner / wire cloth only |
| Strainer Baskets | stainless steel 304 / stainless steel 316 / stainless steel 316L | simplex perforated basket / perforated basket with wire mesh liner / wire mesh only |
| Temporary Pipeline Strainers | stainless steel 304 / stainless steel 316 | simplex perforated basket / perforated basket with mesh liner / perforated basket with mesh cover / wire mesh only |
Also Consider
Related Products
Fluid Strainers & Filters
T Strainer Screens
Replacement insert screens for T type strainers
View Product
Fluid Strainers & Filters
Strainer Baskets
Replacement baskets for simplex and duplex basket strainers
View Product
Fluid Strainers & Filters
Temporary Pipeline Strainers
Cone, basket and plate types for start up protection
View Product
Filter Materials
Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
View Product
Answers
Y Strainer Screens FAQ
What material is the Y Strainer Screens made from?
stainless steel 304 / 316 / 316L. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
What filtration range is available for the Y Strainer Screens?
simplex perforated basket / perforated basket with cloth liner / wire cloth only. Tell us the particle size you need to hold back and we will match the mesh or hole size to it.
Can the Y Strainer Screens be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
Quote The Y Strainer Screens

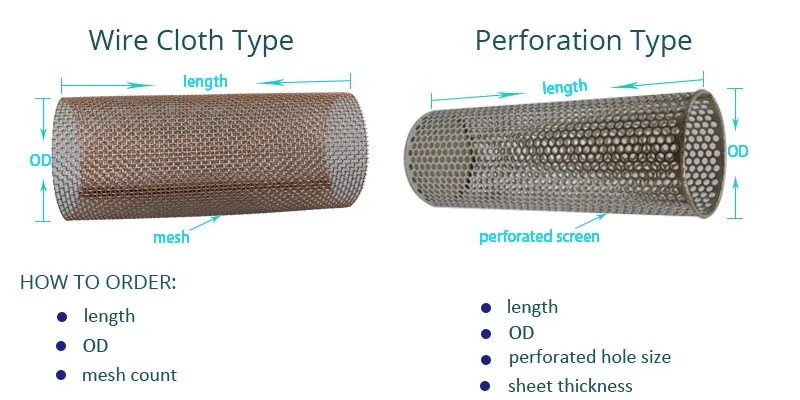

Send the size the material and the filtration precision, or just send a photo of the part you are replacing.
All inquiry will be replied within 24 hours · Monday to Saturday 8:00 - 18:00
