Stainless Steel Filter Cartridge

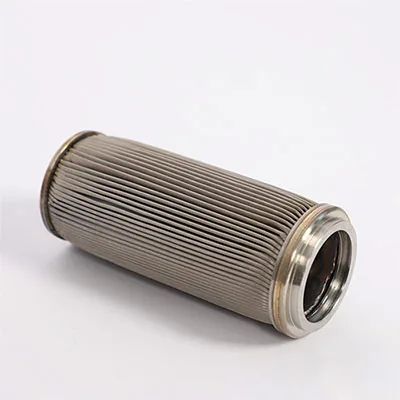

Pleated stainless cartridges for high temperature and high flow duty
- High reliable standard specifications
- Low pressure drop due to high porosity
- Accurate filtration rating
- Easily cleanable by conventional chemical cleaning and with a long service life
- Pleated design increased the filtration area
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Stainless Steel Filter Cartridge Does
Stainless Steel Filter Cartridge provide the optimum filtration solution for fluids and gases requiring high temperature and high flow capabilities.
Technical Features
Specifications And Materials
| Filter media | SS304 / SS316L wire woven cloth, SS304 / SS316L sintered fiber web |
|---|---|
| Filtration accuracy | 1 - 100 um |
| Support layer | SS |
| Core / Cage / End adaptor | SS304 / SS316L |
| Gasket | Silicon, EPDM, Viton, Buna-N |
Application
Who It Is For And What It Solves
Who It Is For
- Hydraulic system builders
- Lubrication and diesel engine service
- Process gas and liquid filtration
- Plant maintenance and MRO buyers
Problems It Solves
- Long lead times on branded elements are avoided with an equivalent replacement
- High temperature and high flow duties get a stainless media instead of a paper element
- Elements are cleanable, which lowers the cost per running hour
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Industrial Filters
| Product | Material | Filtration Or Range |
|---|---|---|
| Stainless Steel Filter Cartridge | SS304 / SS316L wire woven cloth, SS304 / SS316L sintered fiber web | 1 - 100 um |
| Oil Lubrication Disc Filter | aluminum | stainless steel wire mesh, copper wire mesh, brass wire mesh |
| Suction Filter Element | Stainless steel construction | From 10 micron to 200 micron |
| Hydraulic Oil Filter | Stainless steel construction | Customized to drawing |
Also Consider
Related Products
Filter Materials
Dutch Wire Cloth
Plain dutch and twill dutch weave for high pressure filtration
View Product
Industrial Filters
Suction Filter Element
In tank and inlet line protection for hydraulic pumps
View Product
Marine Oil Filters
Marine Filter Element
Equivalent replacement elements for automatic marine filters
View Product
Industrial Filters
Hydraulic Oil Filter
Replacement hydraulic elements for most brands in the world
View Product
Related Reading
Guides For This Product
Answers
Stainless Steel Filter Cartridge FAQ
What material is the Stainless Steel Filter Cartridge made from?
SS304 / SS316L wire woven cloth, SS304 / SS316L sintered fiber web. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
What filtration range is available for the Stainless Steel Filter Cartridge?
1 - 100 um. Tell us the particle size you need to hold back and we will match the mesh or hole size to it.
Can the Stainless Steel Filter Cartridge be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
Quote The Stainless Steel Filter Cartridge
Send the size the material and the filtration precision, or just send a photo of the part you are replacing.
All inquiry will be replied within 24 hours · Monday to Saturday 8:00 - 18:00
