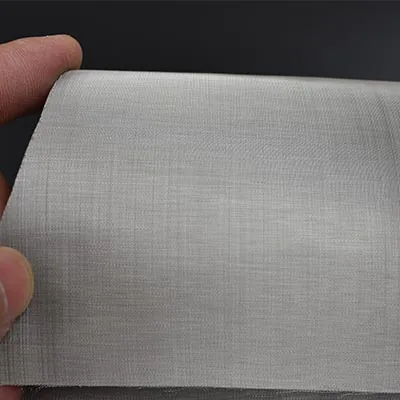

Dutch Wire Cloth
Plain dutch and twill dutch weave for high pressure filtration
- Materials: stainless steel 304 / 316 / mild steel
- Form: rolls or slices
- Roll length: 30 meters or customized
- Roll width: 36 inches - 2 meters
- Application: strainer screen, filtration system, mining, petroleum, chemical, food, medicine, machine manufacture
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Dutch Wire Cloth Does

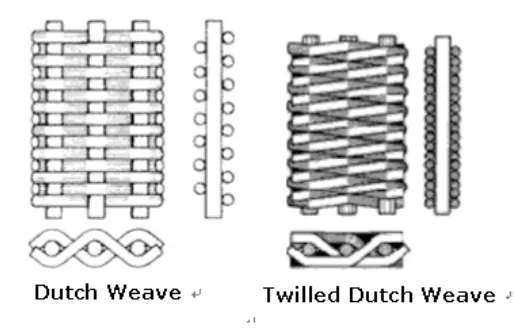

Dutch Wire Cloth is widely used in the filtration system as same as Plain Weave Wire Cloth. Still, it has a more strong mesh structure, there are two sizes of wire diameter in the Dutch wire cloth, and the thinner weft wires make the mesh more tight and micro, and the thicker warp wires make the structure more robust, and Dutch wire cloth gives high stability and good performance in high-pressure filtration.
WD company can produce filter products with Dutch wire mesh material as your requirements, the customized sample is available.
Technical Features
Specifications And Materials
| Materials | stainless steel 304 / 316 / mild steel |
|---|---|
| Form | rolls or slices |
| Roll length | 30 meters or customized |
| Roll width | 36 inches - 2 meters |
| Typical Weaving | Plain Dutch Weave, Twill Dutch Weave |
| Application | strainer screen, filtration system, Mining industry, petroleum, chemical industry, food, medicine, machine facture |
Specifications
Dutch Wire Cloth Specification
| Mesh Count | Warp Wire (Inch) | Weft Wire (Inch) | Absolute Rating (um) | Nominal Rating (um) | Weave Type |
|---|---|---|---|---|---|
| 8×20 | 0.014 | 0.0126 | 330-350 | 280 | Plain Dutch Weave |
| 12×64 | 0.024 | 0.0165 | 270-290 | 200 | Plain Dutch Weave |
| 14×88 | 0.02 | 0.013 | 220-240 | 150 | Plain Dutch Weave |
| 16×80 | 0.0196 | 0.0134 | 225-235 | 140 | Plain Dutch Weave |
| 24×110 | 0.015 | 0.01 | 115-125 | 80 | Plain Dutch Weave |
| 24×128 | 2 x .010 | 0.004 | 110-120 | 75 | Plain Dutch Weave |
| 30×150 | 0.009 | 0.007 | 110-112 | 63 | Plain Dutch Weave |
| 30×150 | 2 x .009 | 0.007 | 95-113 | 60 | Plain Dutch Weave |
| 40×200 | 0.007 | 0.0055 | 70-75 | 55 | Plain Dutch Weave |
| 50×250 | 0.0055 | 0.0045 | 58-63 | 40 | Plain Dutch Weave |
| 80×400 | 0.005 | 0.003 | 40-45 | 35 | Plain Dutch Weave |
| 30×250 | 0.01 | 0.008 | 110-120 | 53 | Twill Dutch Weave |
| 80×700 | 0.004 | 0.003 | 35-40 | 25 | Twill Dutch Weave |
| 120×400 | 0.004 | 0.0025 | 50-55 | 40 | Twill Dutch Weave |
| 165×800 | 0.0028 | 0.002 | 25-28 | 15 | Twill Dutch Weave |
| 200×600 | 0.0024 | 0.0018 | 30 | 20 | Twill Dutch Weave |
| 165×1400 | 0.0028 | 0.0016 | 16-20 | 10 | Twill Dutch Weave |
| 200×1400 | 0.0028 | 0.0016 | 12-16 | 5 | Twill Dutch Weave |
| 325×2300 | 0.0014 | 0.001 | 8-9 | 2 | Twill Dutch Weave |
| 400×2800 | 0.001 | 0.0008 | 6-7 | 1 | Twill Dutch Weave |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Filter and strainer fabricators
- Sieving and screening plants
- OEM filter element assemblers
- Distributors buying mesh in rolls
Problems It Solves
- Media supplied in rolls or cut slices so fabricators skip a sourcing step
- Mesh counts from 1 mesh to 635 mesh cover coarse trash screening through fine polishing
- Perforated and expanded sheet act as the support layer behind fine mesh under pressure
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Filter Materials
| Product | Material | Filtration Or Range |
|---|---|---|
| Dutch Wire Cloth | stainless steel 304 / 316 / mild steel | Customized to drawing |
| Stainless Steel Woven Wire Cloth | Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L | 1 mesh to 635 mesh |
| Brass Woven Wire Mesh | brass wire H65, H68, H80 | Customized to drawing |
| Perforated Metal Sheets | stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request | 0.3mm - 5mm |
Also Consider
Related Products
Filter Materials
Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
View Product
Industrial Filters
Stainless Steel Filter Cartridge
Pleated stainless cartridges for high temperature and high flow duty
View Product
Filter Disc
Wire Mesh Disc
Any shape and size from 3 micron up to 10 mm
View Product
Filter Materials
Perforated Metal Sheets
CNC punched sheet from 0.4mm holes up to 1 inch
View Product
Answers
Dutch Wire Cloth FAQ
What material is the Dutch Wire Cloth made from?
stainless steel 304 / 316 / mild steel. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
Can the Dutch Wire Cloth be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
