Expanded Screens
Slit and stretched sheet with no material waste
- Form: sheet or rolls
- Application: filter media and support for filter element, strainer screen, filter baskets and air filters, architecture, guard fence
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Expanded Screens Does
Expanded screens is also called expanded metals, or expanded metal screens, it is made to be screened by a slitting and stretching process without any waste. As a strong mesh structure, it is widely used in filter elements, strainers, air filter decoration, architecture, guard fences, baskets, and so on.
Technical Features
Specifications And Materials
| Types | Standard Expanded Screen / Flattened Expanded Screen |
|---|---|
| Material | mild steel plate, stainless steel plate, aluminum plate, copper plate, nickel plate |
| Finishing | galvanized, PVC coated, painted, oiled, anodizing, etc |
| Thickness | 0.3 - 8mm |
Specifications
Part Specification for Expanded Screens

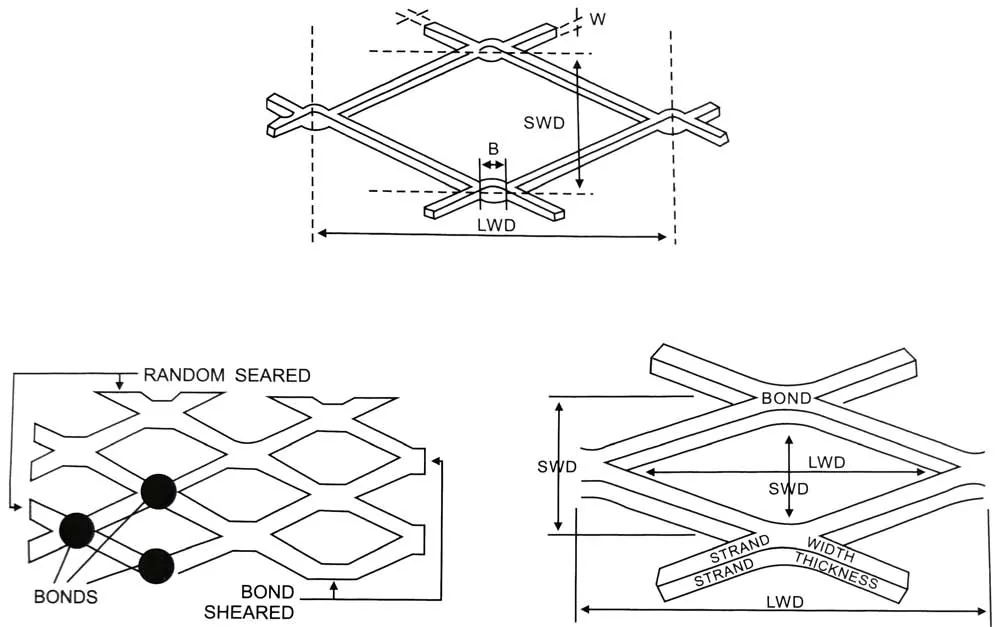

| Sheet Thickness (mm) | SWG (mm) | LWG (mm) | Strand Width (mm) | Width (m) | Length (m) |
|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 |
| 1 | 15 | 40 | 1.5 | 2 | 4 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 |
| 2 | 18 | 50 | 2.1 | 2 | 4 |
| 2 | 22 | 60 | 2.6 | 2 | 4 |
| 3 | 40 | 80 | 3.8 | 2 | 4 |
| 4 | 50 | 100 | 4 | 2 | 2 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 |
| 6 | 50 | 100 | 6 | 2 | 2.5 |
| 8 | 50 | 100 | 8 | 2 | 2.1 |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Filter and strainer fabricators
- Sieving and screening plants
- OEM filter element assemblers
- Distributors buying mesh in rolls
Problems It Solves
- Media supplied in rolls or cut slices so fabricators skip a sourcing step
- Mesh counts from 1 mesh to 635 mesh cover coarse trash screening through fine polishing
- Perforated and expanded sheet act as the support layer behind fine mesh under pressure
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
