Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
- Materials: Stainless Steel

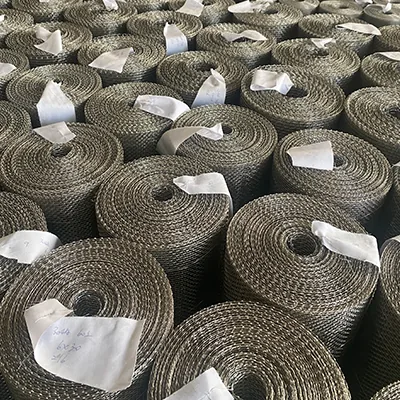

- Form: Rolls or Slices
- Mesh counts: 1 mesh to 635 mesh
- Roll Length: 30m or customized
- Roll width: 36 inches - 2m
- Application: Filtration and sieving
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Stainless Steel Woven Wire Cloth Does

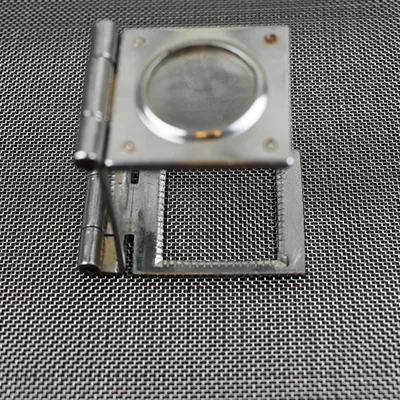

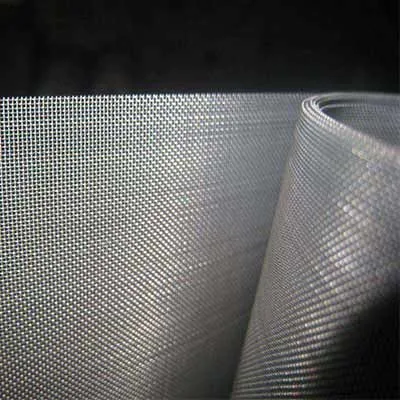

Stainless Steel Woven Wire Cloth is also called wire mesh or wire screen, it is an important material used in separation and filtration devices. Wodong company can provide various specifications of Stainless Steel Woven Wire Cloth for different applications.
Technical Features
Specifications And Materials
| Materials | Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L |
|---|---|
| Form | Rolls or Slices |
| Mesh counts | 1 mesh to 635 mesh |
| Roll width | 3 foot - 2 meters |
| Roll Length | 30m or customized |

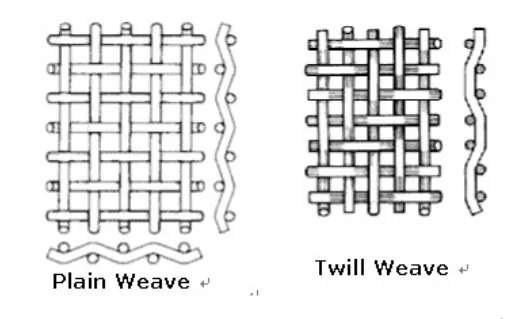

| Typical Weaving | Plain Weave, Twill Weave |
| Cost Compare | Twill Weave is cheaper than Plain Weave |
| Application | Strainer screen, Filtration system, Mining industry, Petroleum, Chemical industry, Food Industry, Medicine, Test Sieve and so on |
Specifications
Part Specifications for Stainless Steel Woven Wire Cloth
| Mesh/Inch | Wire Diameter | Aperture | Open Area % | ||
|---|---|---|---|---|---|
| Inch | MM | Inch | MM | ||
| 1×1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 |
| 2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 |
| 3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 |
| 4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
| 4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 |
| 5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 |
| 6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 |
| 8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 |
| 10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 |
| 10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 |
| 12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
| 12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 |
| 14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
| 14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 |
| 16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
| 18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
| 20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 |
| 20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
| 24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
| 30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 |
| 30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
| 30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 |
| 35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
| 40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
| 50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 |
| 50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
| 60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
| 80X80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
| 90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 |
| 100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
| 100X100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 |
| 100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 |
| 110X110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 |
| 120X120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 |
| 150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 |
| 160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 |
| 180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
| 250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 |
| 270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 |
| 300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
| 325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
| 635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Filter and strainer fabricators
- Sieving and screening plants
- OEM filter element assemblers
- Distributors buying mesh in rolls
Problems It Solves
- Media supplied in rolls or cut slices so fabricators skip a sourcing step
- Mesh counts from 1 mesh to 635 mesh cover coarse trash screening through fine polishing
- Perforated and expanded sheet act as the support layer behind fine mesh under pressure
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Filter Materials
| Product | Material | Filtration Or Range |
|---|---|---|
| Stainless Steel Woven Wire Cloth | Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L | 1 mesh to 635 mesh |
| Dutch Wire Cloth | stainless steel 304 / 316 / mild steel | Customized to drawing |
| Brass Woven Wire Mesh | brass wire H65, H68, H80 | Customized to drawing |
| Perforated Metal Sheets | stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request | 0.3mm - 5mm |
Also Consider
Related Products
Filter Materials
Dutch Wire Cloth
Plain dutch and twill dutch weave for high pressure filtration
View Product
Filter Materials
Perforated Metal Sheets
CNC punched sheet from 0.4mm holes up to 1 inch
View Product
Fluid Strainers & Filters
Y Strainer Screens
Replacement insert screens for Y type strainers
View Product
Filter Disc
Wire Mesh Disc
Any shape and size from 3 micron up to 10 mm
View Product
Answers
Stainless Steel Woven Wire Cloth FAQ
What material is the Stainless Steel Woven Wire Cloth made from?
Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
What filtration range is available for the Stainless Steel Woven Wire Cloth?
1 mesh to 635 mesh. Tell us the particle size you need to hold back and we will match the mesh or hole size to it.
Can the Stainless Steel Woven Wire Cloth be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
Quote The Stainless Steel Woven Wire Cloth
Send the size the material and the filtration precision, or just send a photo of the part you are replacing.
All inquiry will be replied within 24 hours · Monday to Saturday 8:00 - 18:00
