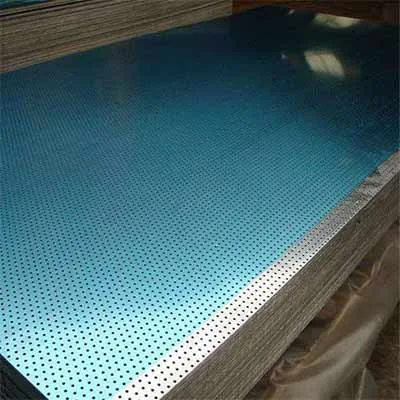

Perforated Metal Sheets
CNC punched sheet from 0.4mm holes up to 1 inch

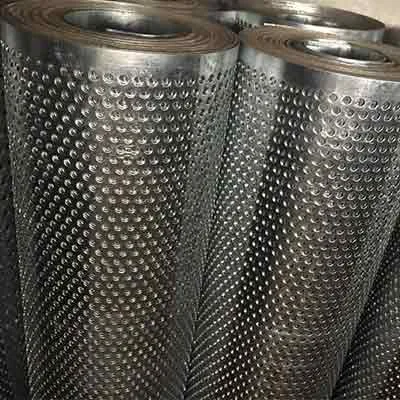

- Form: plate or rolls
- Thickness: 0.3mm - 5mm
- Hole size range: 0.4mm - 1 inch
- Finishing: Powder coating, Anodising, Oiled
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Perforated Metal Sheets Does
Perforated Metal Sheets are the important filter media and support in the filter element, strainer, and sieving device. Perforated Metal Sheets are also used in decoration, protection, noise reduction, electronic equipment, and so on. We own advanced CNC Punching machines and expert workers to make every product well, more specifications of holes can be customized.

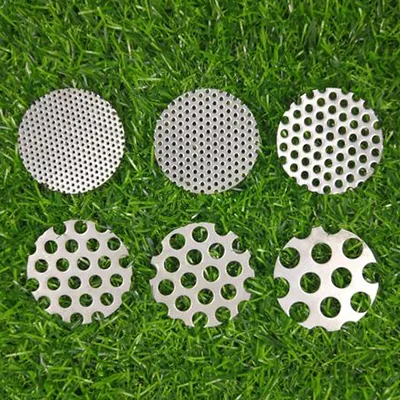

The round and square shape types are widely used in filters and strainers.
Technical Features
Specifications And Materials
| Material | stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request |
|---|---|
| Hole shape | round / square / slotted / rectangular / hexagonal / honeycomb / diamond or others as your request |
| Hole Pattern for round shape | stagger 60 degrees / stagger 45 degrees / straight line and others can be customized |
| Thickness | 0.3mm - 5mm |

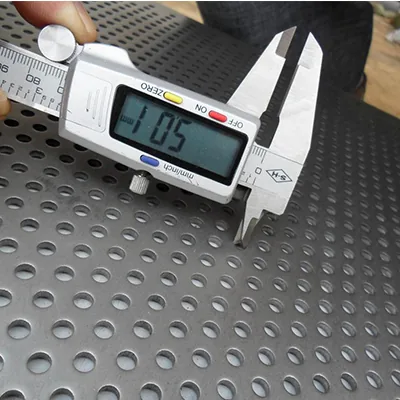

| Hole size range | 0.4mm - 1 inch |
| Finishing | Powder coating, Anodising, Oiled |
Specifications
Specification for Part of the Round Hole
| Hole size (diameter) | Hole center | Hole pattern | Open area |
|---|---|---|---|
| 0.02" | 0.043" | 45° staggered | 20% |
| 0.023" | 0.042" | Straight | 22% |
| 0.027" | 0.05" | Straight | 23% |
| 1/32" | 1/6" | 45° staggered | 23% |
| 0.033" | 0.055" | Straight | 28% |
| 0.045" | 0.066" | Straight | 36% |
| 0.045" | 5/64" | 45° staggered | 32% |
| 0.05" | 0.083" | Straight | 29% |
| 3/64" | 3/32" | 60° staggered | 23% |
| 1/16" | 3/32" | 60° staggered | 41% |
| 1/16" | 7/64" | 60° staggered | 27% |
| 1/16" | 1/8" | 60° staggered | 23% |
| 5/64" | 1/8" | 60° staggered | 36% |
| 3/32" | 5/32" | 60° staggered | 33% |
| 3/32" | 3/16" | 60° staggered | 23% |
| 0.117" | 5/32" | 60° staggered | 51% |
| 1/8" | 3/16" | 60° staggered | 40% |
| 1/8" | 7/32" | 60° staggered | 30% |
| 1/8" | 1/4" | 60° staggered | 23% |
| 9/64" | 3/16" | 60° staggered | 51% |
| 5/32" | 3/16" | 60° staggered | 63% |
| 5/32" | 1/4" | 60° staggered | 34% |
| 3/16" | 7/32" | 60° staggered | 67% |
| 3/16" | 1/4" | 60° staggered | 50% |
| 3/16" | 5/16" | 60° staggered | 32% |
| 3/16" | 3/8" | 60° staggered | 23% |
| 3/16" | 1/2" | Straight | 10% |
| 1/4" | 5/16" | 60° staggered | 58% |
| 1/4" | 3/8" | 60° staggered | 42% |
| 1/4" | 3/8" | Straight | 34% |
| 1/4" | 1/2" | 60° staggered | 23% |
| 1/4" | 1/2" | Straight | 20% |
| 5/16" | 7/16" | 60° staggered | 46% |
| 3/8" | 1/2" | 60° staggered | 52% |
| 3/8" | 9/16" | 60° staggered | 40% |
| 1/2" | 11/16" | 60° staggered | 49% |
| 5/8" | 7/8" | 60° staggered | 46% |
| 3/4" | 1" | 60° staggered | 51% |
| 1" | 1-3/8" | 60° staggered | 48% |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Filter and strainer fabricators
- Sieving and screening plants
- OEM filter element assemblers
- Distributors buying mesh in rolls
Problems It Solves
- Media supplied in rolls or cut slices so fabricators skip a sourcing step
- Mesh counts from 1 mesh to 635 mesh cover coarse trash screening through fine polishing
- Perforated and expanded sheet act as the support layer behind fine mesh under pressure
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Filter Materials
| Product | Material | Filtration Or Range |
|---|---|---|
| Perforated Metal Sheets | stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request | 0.3mm - 5mm |
| Stainless Steel Woven Wire Cloth | Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L | 1 mesh to 635 mesh |
| Dutch Wire Cloth | stainless steel 304 / 316 / mild steel | Customized to drawing |
| Brass Woven Wire Mesh | brass wire H65, H68, H80 | Customized to drawing |
Also Consider
Related Products
Filter Materials

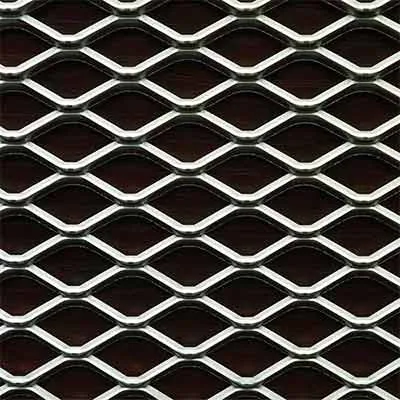

Expanded Screens
Slit and stretched sheet with no material waste
View Product
Filter Materials
Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
View Product
Fluid Strainers & Filters
Strainer Baskets
Replacement baskets for simplex and duplex basket strainers
View Product
Fluid Strainers & Filters
Sanitary Strainer Core
Electropolished 316 cores for sanitary strainers
View Product
Related Reading
Guides For This Product
Answers
Perforated Metal Sheets FAQ
What material is the Perforated Metal Sheets made from?
stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
Can the Perforated Metal Sheets be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
Quote The Perforated Metal Sheets
Send the size the material and the filtration precision, or just send a photo of the part you are replacing.
All inquiry will be replied within 24 hours · Monday to Saturday 8:00 - 18:00
