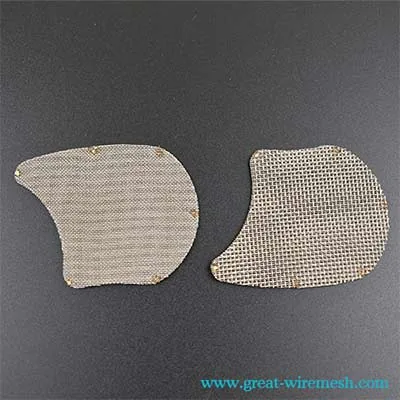

Wire Mesh Disc
Any shape and size from 3 micron up to 10 mm
- Round, rectangle, ovals, kidney shapes, can be customized
- Single layer, multilayer can be welded or sintered
- Filtration grade from 3 micron up to 10mm
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Wire Mesh Disc Does

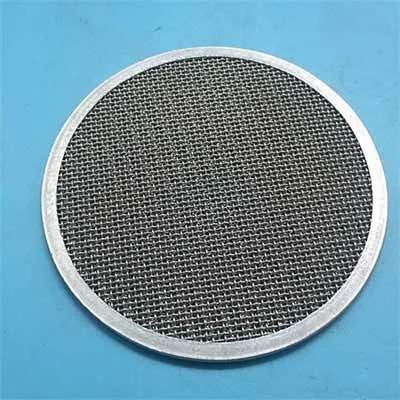

We can produce filter disc in any shape and size from wire mesh, perforated screen and other material.
Technical Features
Specifications And Materials
| Material | stainless steel wire mesh, black wire cloth, galvanized wire mesh, brass wire mesh, dutch wire mesh, perforated screen, plastic mesh, expanded metal, etc |
|---|---|
| Shapes | round, rectangle, ovals, kidney shapes, can be customized |
| Layer | single layer, multilayer can be welded or sintered |
| Edge finish | U frame packs or without any treatment |
| Filtration grade | from 3 micron up to 10mm |
| Applications | petroleum, chemical industry, distillation, absorption, evaporation and filtration process of rubber, plastic industry, oil filtration, light industry, pharmacy, metallurgy, machinery, ship making |
Application
Who It Is For And What It Solves
Who It Is For
- Extruder and polymer processing
- Servo valve rebuilders
- Chemical and pharmaceutical plants
- Filter housing assemblers
Problems It Solves
- Odd shapes that no catalogue disc fits are cut to the outline you supply
- Multilayer packs give a fine rating without losing strength
- U frame edging stops fraying and holds the disc square in its seat
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Filter Disc
| Product | Material | Filtration Or Range |
|---|---|---|
| Wire Mesh Disc | stainless steel wire mesh, black wire cloth, galvanized wire mesh, brass wire mesh, dutch wire mesh, perforated screen, plastic mesh, expanded metal, etc | from 3 micron up to 10mm |
| Servo Valve Filter Disc | stainless steel wire mesh with brass U-edge | 5 microns, 10 microns, 20 microns, 25 microns, 30 microns, 40 microns, 50 microns |
Also Consider
Related Products
Filter Disc
Servo Valve Filter Disc
15.85 x 3 mm discs from 5 to 50 micron
View Product
Filter Materials
Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
View Product
Fluid Strainers & Filters
Stainless Steel Bowl Mesh Filter
Bowl shaped mesh filters from 2 mesh to 635 mesh
View Product
Fluid Strainers & Filters
Custom Strainer & Filter
If you can draw it we will build it
View Product
Related Reading
Guides For This Product
Answers
Wire Mesh Disc FAQ
What material is the Wire Mesh Disc made from?
stainless steel wire mesh, black wire cloth, galvanized wire mesh, brass wire mesh, dutch wire mesh, perforated screen, plastic mesh, expanded metal, etc. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
What filtration range is available for the Wire Mesh Disc?
from 3 micron up to 10mm. Tell us the particle size you need to hold back and we will match the mesh or hole size to it.
Can the Wire Mesh Disc be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
Quote The Wire Mesh Disc
Send the size the material and the filtration precision, or just send a photo of the part you are replacing.
All inquiry will be replied within 24 hours · Monday to Saturday 8:00 - 18:00
