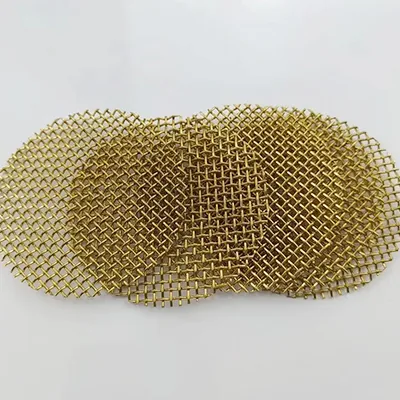

Brass Woven Wire Mesh
H65 H68 H80 brass wire cloth in rolls or slices
- Material: brass wire H65, H68, H80
- Form: rolls or slices
- Roll width: 3 foot - 1.5 meters
- Roll Length: 30m or customized
- Typical Weaving: Plain Weave, Twill Weave
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Brass Woven Wire Mesh Does
Brass Woven Wire Mesh is a kind of wire cloth made of brass wire, a chemical composition of 65% Copper and 35% Zinc is the primary material, which has better wear resistance and better abrasion resistance due to its characteristics.
Compared with pure copper mesh, Brass Woven Wire Mesh has lower electrical conductivity, and it is widely used for screening a wide range of particles, powders, porcelain printing, and filtering liquids and gases.
Technical Features
Specifications And Materials
| Material | brass wire H65, H68, H80 |
|---|---|
| Form | rolls or slices |
| Roll width | 3 foot - 1.5 meters |
| Roll Length | 30m or customized |
| Typical Weaving | Plain Weave, Twill Weave |
| Application | strainer screen, pharmaceutical, metal dynamic filtration and screening, ceramic printing, decoration, shielding electronic signals and electromagnetic waves |
Specifications
Brass Woven Wire Mesh Specification
| Mesh | Wire Dia. SWG | Wire Dia. MM | Wire Dia. Inch | Opening (mm) |
|---|---|---|---|---|
| 6 | 22 | 0.711 | 0.028 | 3.522 |
| 8 | 23 | 0.61 | 0.024 | 2.565 |
| 10 | 25 | 0.508 | 0.02 | 2.032 |
| 12 | 26 | 0.457 | 0.018 | 1.66 |
| 14 | 27 | 0.417 | 0.016 | 1.397 |
| 16 | 29 | 0.345 | 0.014 | 1.243 |
| 18 | 30 | 0.315 | 0.012 | 1.096 |
| 20 | 30 | 0.315 | 0.0124 | 0.955 |
| 22 | 30 | 0.315 | 0.0124 | 0.84 |
| 24 | 0 | 0.315 | 0.0124 | 0.743 |
| 26 | 31 | 0.295 | 0.0116 | 0.682 |
| 28 | 31 | 0.295 | 0.0116 | 0.612 |
| 30 | 32 | 0.247 | 0.011 | 0.573 |
| 32 | 33 | 0.254 | 0.01 | 0.54 |
| 34 | 34 | 0.234 | 0.0092 | 0.513 |
| 36 | 34 | 0.234 | 0.0092 | 0.472 |
| 38 | 35 | 0.213 | 0.0084 | 0.455 |
| 40 | 36 | 0.193 | 0.0076 | 0.442 |
| 42 | 36 | 0.193 | 0.0076 | 0.412 |
| 44 | 37 | 0.173 | 0.0068 | 0.404 |
| 46 | 37 | 0.173 | 0.0068 | 0.404 |
| 48 | 37 | 0.173 | 0.0068 | 0.356 |
| 50 | 37 | 0.173 | 0.0068 | 0.335 |
| 60×50 | 36 | 0.193 | 0.0076 | |
| 60×50 | 37 | 0.173 | 0.0068 | |
| 60 | 37 | 0.173 | 0.0068 | 0.25 |
| 70 | 39 | 0.132 | 0.0052 | 0.231 |
| 80 | 40 | 0.122 | 0.0048 | 0.196 |
| 90 | 41 | 0.112 | 0.0044 | 0.17 |
| 100 | 42 | 0.102 | 0.004 | 0.152 |
| 120×108 | 43 | 0.091 | 0.0036 | |
| 120 | 44 | 0.081 | 0.0032 | 0.131 |
| 140 | 46 | 0.061 | 0.0024 | 0.12 |
| 150 | 46 | 0.061 | 0.0024 | 0.108 |
| 160 | 46 | 0.061 | 0.0024 | 0.098 |
| 180 | 47 | 0.051 | 0.002 | 0.09 |
| 200 | 47 | 0.051 | 0.002 | 0.076 |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Filter and strainer fabricators
- Sieving and screening plants
- OEM filter element assemblers
- Distributors buying mesh in rolls
Problems It Solves
- Media supplied in rolls or cut slices so fabricators skip a sourcing step
- Mesh counts from 1 mesh to 635 mesh cover coarse trash screening through fine polishing
- Perforated and expanded sheet act as the support layer behind fine mesh under pressure
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Filter Materials
| Product | Material | Filtration Or Range |
|---|---|---|
| Brass Woven Wire Mesh | brass wire H65, H68, H80 | Customized to drawing |
| Stainless Steel Woven Wire Cloth | Stainless Steel 304 / Stainless Steel 316 / Stainless Steel 316L | 1 mesh to 635 mesh |
| Dutch Wire Cloth | stainless steel 304 / 316 / mild steel | Customized to drawing |
| Perforated Metal Sheets | stainless steel / mild steel / aluminum / nickel / pre-galvanized / copper and brass or other materials as your request | 0.3mm - 5mm |
Also Consider
Related Products
Filter Materials
Stainless Steel Woven Wire Cloth
Rolls and slices from 1 mesh to 635 mesh in 304, 316 and 316L
View Product
Fluid Strainers & Filters

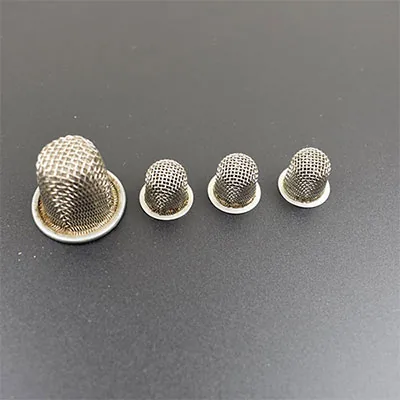

Stainless Steel Bowl Mesh Filter
Bowl shaped mesh filters from 2 mesh to 635 mesh
View Product
Filter Disc
Servo Valve Filter Disc
15.85 x 3 mm discs from 5 to 50 micron
View Product
Industrial Filters
Oil Lubrication Disc Filter
Replacement disc filters for vessel diesel engine lubrication
View Product
Related Reading
Guides For This Product
Answers
Brass Woven Wire Mesh FAQ
What material is the Brass Woven Wire Mesh made from?
brass wire H65, H68, H80. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
Can the Brass Woven Wire Mesh be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
