Oil Lubrication Disc Filter
Replacement disc filters for vessel diesel engine lubrication
- Replacement disc filters for oil lubrication
- Filter grade 5µm to 400µm
- Easy to be cleaned and replaced
CAD files on request via WhatsApp. All inquiry will be replied within 24 hours.
Product Overview
What The Oil Lubrication Disc Filter Does

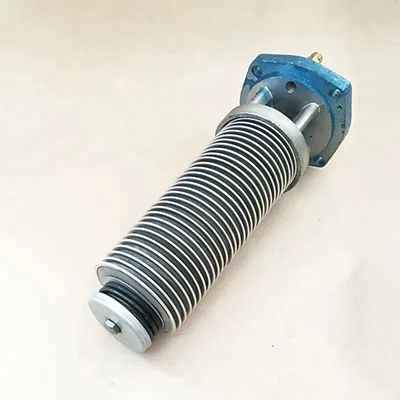

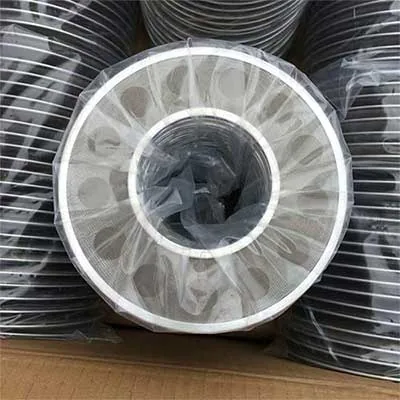

Oil Lubrication Disc Filter is used for oil lubrication of vessel diesel engine to improve the cleanliness of the oil, the disc filter is easy to be cleaned and replaced. We can provide all kinds of replacement disc filters with more reasonable price.
Technical Features
Specifications And Materials
| U-edge Material | aluminum |
|---|---|
| Filtration Screen | stainless steel wire mesh, copper wire mesh, brass wire mesh |
| Max working temperature | 95°C |
| Max working pressure | 0.8Mpa |
| Filter grade | 5µm to 400µm |
Specifications
Oil Lubrication Disc Filter Models
| Model | DN (mm) | Filter precision (um) | Inner disc size (mm) | Outer disc size (mm) | Filter disc number |
|---|---|---|---|---|---|
| SPL-15 | 15 | 80 100 180 | 20 | 40 | 2-30 |
| SPL-25 | 25 | 30 | 65 | 2-20 | |
| SPL-32 | 32 | 30 | 65 | 2-30 | |
| SPL-40 | 40 | 40 | 95 | 2-34 | |
| SPL-50 | 50 | 60 | 125 | 2-22 | |
| SPL-65 | 65 | 60 | 125 | 2-34 | |
| SPL-80 | 80 | 70 | 155 | 2-40 | |
| SPL-100 | 100 | 70 | 155 | 4-40 | |
| SPL-125 | 125 | 90 | 175 | 4-40 | |
| SPL-150 | 150 | 90 | 175 | 6-40 | |
| SPL-200 | 200 | 90 | 175 | 8-40 |
Other specifications can be customized. Send the mesh count hole size or micron rating you need and we will confirm availability.
Application
Who It Is For And What It Solves
Who It Is For
- Hydraulic system builders
- Lubrication and diesel engine service
- Process gas and liquid filtration
- Plant maintenance and MRO buyers
Problems It Solves
- Long lead times on branded elements are avoided with an equivalent replacement
- High temperature and high flow duties get a stainless media instead of a paper element
- Elements are cleanable, which lowers the cost per running hour
Manufacturing And Quality
How This Part Is Built
Manufacturing Process
Line welding, spot welding, laser welding, TIG welding and CO2 shielded arc welding are all available in house, and precision components are produced on the CNC machining centre.
Quality Control
Wodong runs a sales department, an R&D department, a quality control department and an after sales service department. Mesh openings are checked for uniformity and seam welds for damage and spacing.
Customization Options
Material, construction, dimensions, filtration precision and thickness are all set by you. All specifications can be customized according to your drawings or samples.
Comparison
How It Compares Inside Industrial Filters
| Product | Material | Filtration Or Range |
|---|---|---|
| Oil Lubrication Disc Filter | aluminum | stainless steel wire mesh, copper wire mesh, brass wire mesh |
| Suction Filter Element | Stainless steel construction | From 10 micron to 200 micron |
| Hydraulic Oil Filter | Stainless steel construction | Customized to drawing |
| Stainless Steel Filter Cartridge | SS304 / SS316L wire woven cloth, SS304 / SS316L sintered fiber web | 1 - 100 um |
Also Consider
Related Products
Marine Oil Filters
Candle Filter Element
Stainless mesh candle inserts for marine diesel systems
View Product
Marine Oil Filters
Marine Filter Element
Equivalent replacement elements for automatic marine filters
View Product
Filter Disc
Servo Valve Filter Disc
15.85 x 3 mm discs from 5 to 50 micron
View Product
Filter Materials
Brass Woven Wire Mesh
H65 H68 H80 brass wire cloth in rolls or slices
View Product
Answers
Oil Lubrication Disc Filter FAQ
What material is the Oil Lubrication Disc Filter made from?
aluminum. Other alloys can be quoted when the duty calls for them, and the material is confirmed on the drawing before production starts.
What filtration range is available for the Oil Lubrication Disc Filter?
stainless steel wire mesh, copper wire mesh, brass wire mesh. Tell us the particle size you need to hold back and we will match the mesh or hole size to it.
Can the Oil Lubrication Disc Filter be made to my drawing or sample?
Yes. All specifications can be customized according to your drawings or samples, and a customized sample can be produced before a full run.
How do I send a drawing or a sample photo?
Send it on WhatsApp to +86 15931370444 or by email to [email protected]. CAD files are shared on request through the same channels rather than published for download.
How quickly do you reply to an enquiry?
All inquiry will be replied within 24 hours. Office hours are Monday to Saturday 8:00 - 18:00 and Sunday 9:00 - 16:00.
