EPC Type TransducerT1000 Electro Pneumatic Transducer Order
A catalogue order for the general purpose class of the Type 1000, the most commonly specified of the four build classes.
Marsh Bellofram Type Transducer Type 1000 general purpose build, 4-20 mA input
What The Customer Needed
The buyer's plant runs valve actuators, damper drives and air cylinders on the same instrument air system, and wanted one pattern that could cover all three rather than a different transducer for each.
How It Was Built
The Type 1000 application list covers exactly that spread: valve actuators, damper and louver actuators, valve positioners, controllers, relays, air cylinders, clutches and brakes. One pattern, one footprint, one spare.

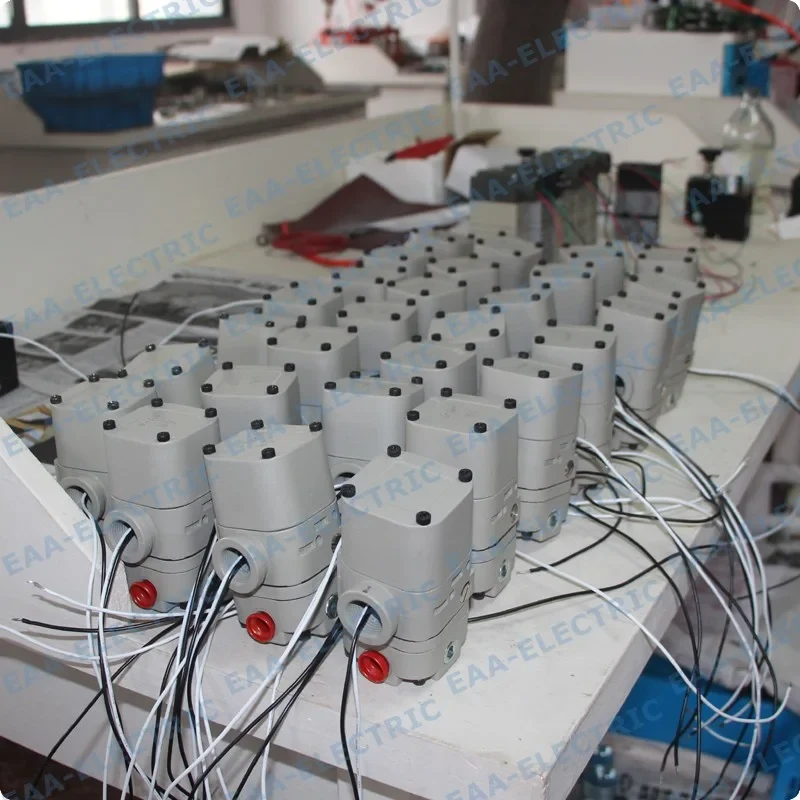

What The Photographs Show
Units were calibrated direct acting as the factory standard, with the field reversible feature left available so that any unit could later be run reverse acting by reversing the signal lead polarity and recalibrating.
How It Finished
A single transducer pattern covering three different kinds of final element on one site.
The Models Behind This Order
Marsh Bellofram Type TransducerT1000 Electro Pneumatic Transducer
Force balance I/P transducer with a built-in volume booster, four build classes
View specifications →
Marsh Bellofram Type TransducerT1500 Electro Pneumatic Transducer
Compact force balance transducer, manifold mountable, 3-15 to 6-30 psig
View specifications →
Marsh Bellofram Type TransducerT1500 Electro Pneumatic Converter
Zero based T1500 build, 0-15 to 0-120 psig, regulates down to 0 psig
View specifications →
Controlair Type Transducer500X Electro Pneumatic Transducer
Controlair pattern I/P transducer, 4-20 mA in, 3-15 to 3-120 psi out
View specifications →Questions About OEM Orders
Can this configuration be supplied under our own brand
Yes. Nameplates are printed to customer artwork and part numbering and checked against the build before fitting.
How is a batch kept consistent
The whole quantity is built in one run and calibrated consecutively on the same bench against the same standard current generator and 0.1 class pressure gauge.
What is the specification on this order
Type 1000 general purpose build, 4-20 mA input.
Can we order a different range in the same body
Yes. The published selection table or coding system for this pattern lists the available input signals, output ranges and terminations.
Order The Same Configuration
Send the range, the termination and the quantity, and the quotation comes back against the published selection table for this pattern.
