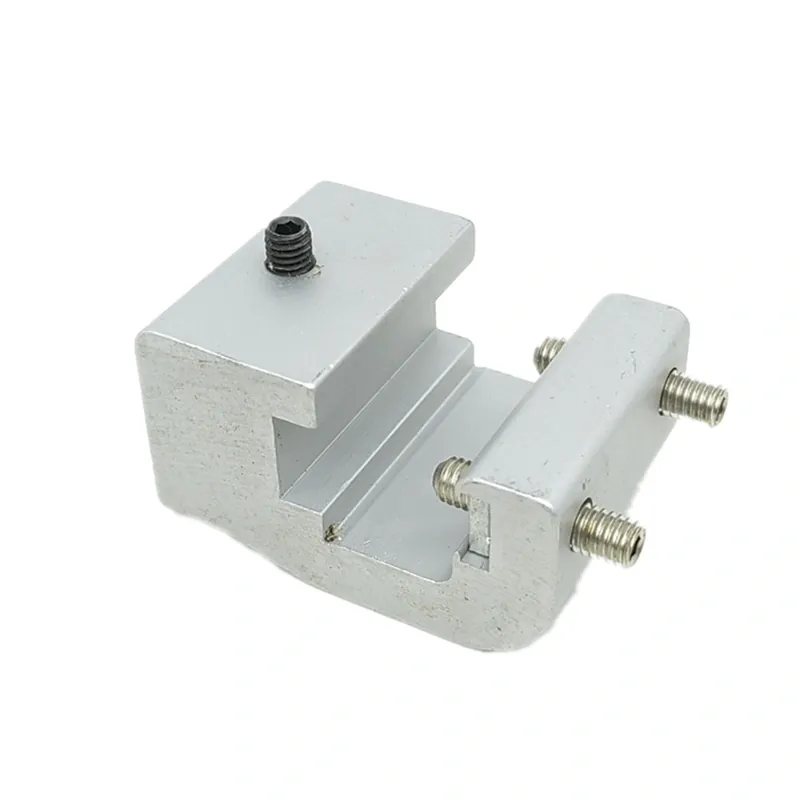

Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set

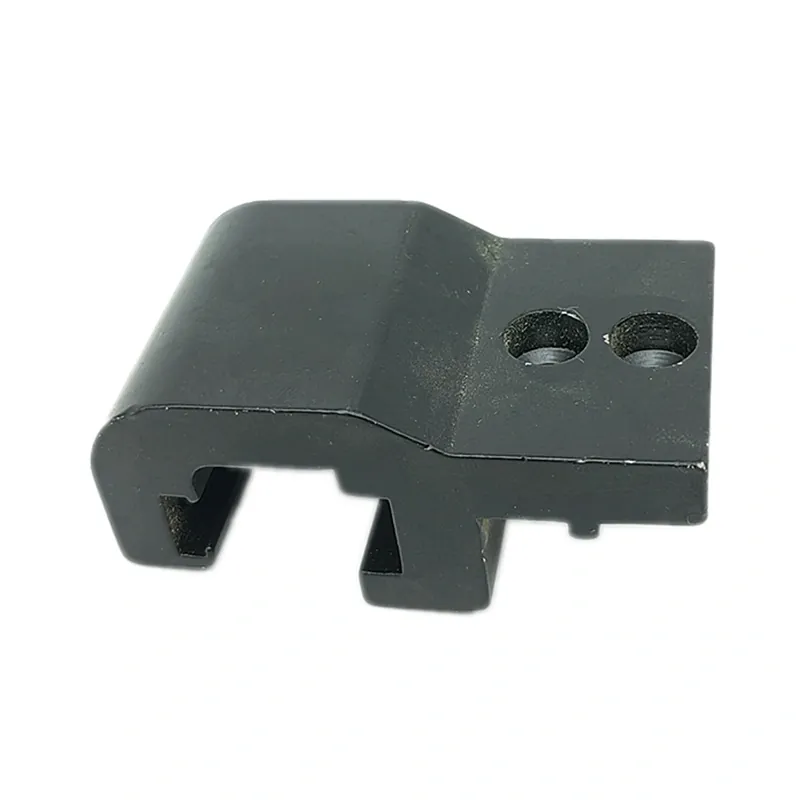

Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set alternate view

Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set

Single and double layer tape tensioners and tightening wheel sets that hold the drive belt at the correct tension around the machine.

Part groupTape Tensioners
Supplied byHUAXIATEX, Beijing

Request a Quote Email Us

Send a photo of the old part beside a ruler and we will confirm the match before you order.

Product Overview

Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set is listed in our tape tensioners group for circular knitting machine maintenance. Single and double layer tape tensioners and tightening wheel sets that hold the drive belt at the correct tension around the machine.

What This Part Does

The positive feeders are driven by a toothed belt that runs around the machine. If that belt is slack it slips, and every feeder then delivers slightly less yarn than it was set to. A tape tensioner takes up the slack and holds the belt in constant contact with the feeder wheels.

Because feeder delivery is what sets loop length, belt tension is not a minor adjustment. It is one of the settings that decides fabric weight.

Key Benefits

Holds constant belt tension so feeder delivery does not drift
Single and double layer types for different belt arrangements
Supplied with the common tightening wheel sets and accessories
Simple mechanical part that protects loop length consistency

Application Scenarios

Positive feeder drive belts on circular knitting machines
Machines with two belt layers driving separate feeder groups
Belt replacement and machine reassembly

Who It Is For

Maintenance teams servicing feeder drives
Mills chasing fabric weight variation
Machine rebuilders

Problems It Solves

Belt slip lowering delivered yarn length without an obvious fault
Feeder wheels wearing unevenly from a belt running slack
Fabric weight drifting after a belt change

Specifications

Specifications for Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set
Product name	Adjustment Set Base for Circular Knitting Machine Tightening Wheel Set
Part group	Tape Tensioners
Machine type	Circular knitting machines
Supplier	Beijing Huaxiatex Co. Ltd., Beijing, China
Listed reference photo	Supplied from our own product records

Only values printed on the product name and in our own records are listed here. Dimensions, material and hardness are confirmed against your machine before you order, not assumed.

What to Send Us When You Order

Whether you need a single layer or double layer type
Machine builder, model and diameter
Belt type and tooth pitch in use
A photo of the current tensioner fitted

Chat on WhatsApp

Use Guide

Confirm the reference against the old part and the machine plate before ordering a full machine set.
Order one complete set per machine where the part is fitted in multiples, so wear is even across the fabric.
Clean the mounting position before fitting. Fly and old oil are the most common cause of a new part not seating.
Check the machine on a short run and measure the fabric before returning it to full production.
Record the reference against the machine so the next reorder does not have to be identified again.

Tape Tensioners Questions

How tight should the belt be?

Tight enough that it does not slip on the feeder wheels, and no tighter. Over tensioning wears the wheels and the belt. Set it, then confirm loop length on the fabric.

What is the difference between single and double layer?

A double layer arrangement drives two belt levels, usually to feed different feeder groups at different rates. The tensioner has to match that arrangement.
