Magnetic Core Material Supply

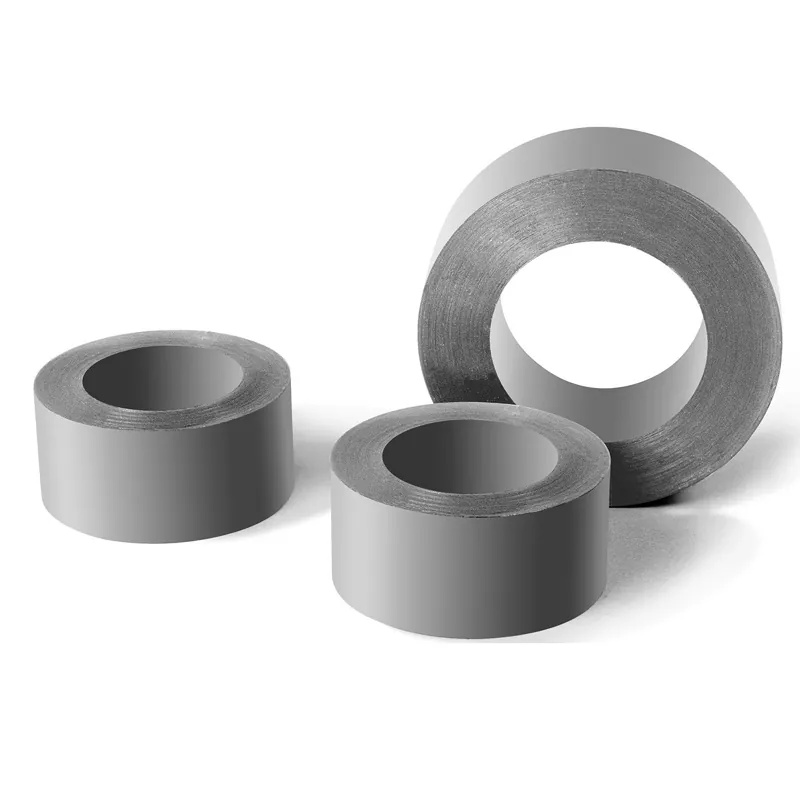

Silicon steel amorphous and nanocrystalline tape wound cores supplied on their own or already fitted to our cases.
What This Service Covers
Core materials are a separate service line: alloy powder core, silicon steel core, amorphous core and nanocrystalline core. Amorphous and nanocrystalline alloys have high saturation magnetic induction, high permeability, low coercivity and low loss compared with ferrite and iron powder cores, along with good frequency characteristics and temperature stability, which is why they replace ferrite where ferrite runs out.
How It Runs
Each stage has an owner and an output you can check.
Define the electrical duty
Frequency flux level temperature rise and the loss you can afford.
Choose the alloy family
Silicon steel amorphous or nanocrystalline, based on that duty.
Choose the shape
Toroidal C core cut core or current sensor core.
Match the hardware
Cores can be supplied fitted into bases and cases from our own toroid mount range.
Wind it or ship it
Bare cores, or a finished wound component built and tested here.
Why It Is Worth Doing This Way
Three alloy families from one source
No separate qualification for each material.
Shapes beyond the toroid
C cores cut cores and current sensor cores as well as toroids.
Hardware already matched
The bases and cases that carry these cores are made in the same plant.
Replaces ferrite where ferrite stops
Amorphous and nanocrystalline material is the usual answer for medium and high frequency transformers and inductors.
Questions About This Service
How do I start
Send a drawing or a specification on WhatsApp or by email. It is reviewed against what we already own before anyone quotes.
Who owns the tooling
Tooling terms are agreed in the quotation. Ask for the tooling clause with your quote.
What lead times apply
Lead time is quoted per project because it depends on the tool and the material. It is confirmed with the price rather than published.
Do you handle small volumes
Send the annual quantity with the enquiry and it will be answered honestly rather than after three rounds.
Is the work certified
The plant runs ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 systems and all products are RoHS compliant.
Send The Drawing Or The Specification
Nothing is quoted before your geometry is compared with tooling that already exists. That check is free and it often saves a tool.
