Computing And Networking

LAN and RJ45 transformers, SMD bases and chokes for computing and network hardware.

Get A Custom Solution Browse Parts

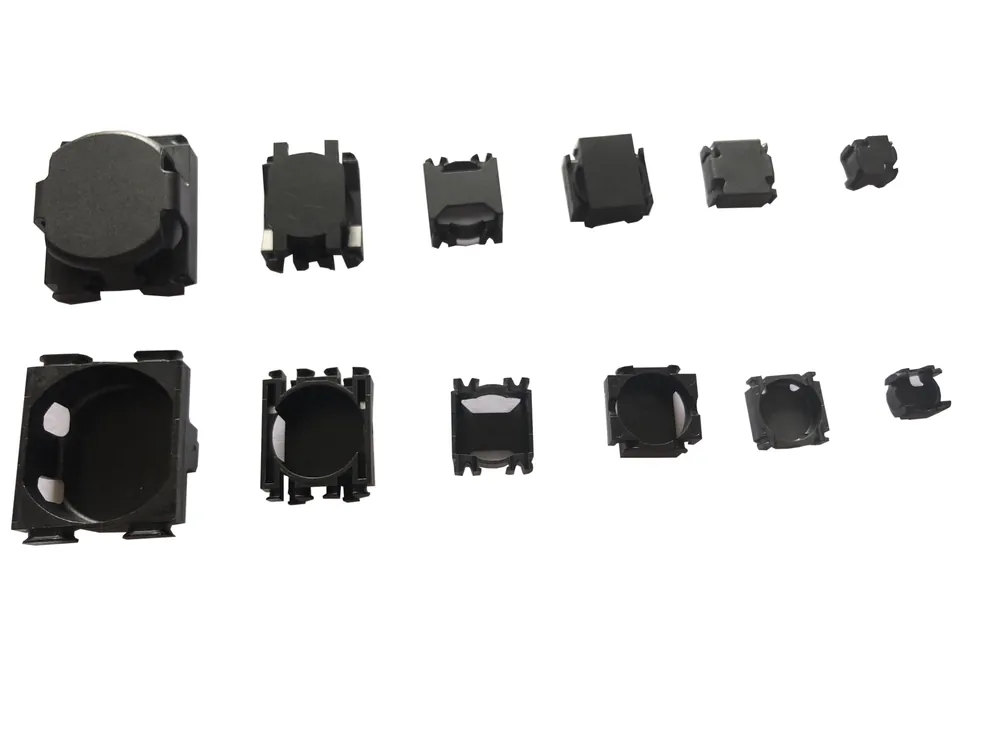

Computing And Networking components from CB Magnetics

What Goes Wrong In This Segment

The four problems that come up most often on enquiries from this market.

Every part has to be machine placeable

A wound toroid with loose leads cannot go down a pick and place line.

Board area is scarce

Height and footprint are fought over on every design review.

Common mode noise fails EMC late

Filtering added at the end of a project is the most expensive kind.

Long product life needs a stable supply

A part that disappears in two years is not usable in this market.

What buyers need instead. SMD bases and cases that turn a wound toroid into a placeable component, plus LAN magnetics from the same source.

Ranges That Fit

Base and Case for Toroidal Core and Coils

Base and Case for Toroidal Core and Coils

Surface mount bases and cases across a wide span of toroid diameters

Inductors and Common Mode Chokes

Inductors and Common Mode Chokes

Common mode chokes and filter inductors built on our own cases

Transformers

Transformers

RJ45 and LAN transformer modules

Typical Applications

  • RJ45 and LAN transformer modules on network interfaces
  • Common mode chokes on data and power lines
  • SMD mounted toroids on dense boards
  • Filter inductors on internal DC rails

How A Project Runs

  1. You send a drawing a reference design or a part list
  2. We check it against tooling we already own
  3. Material pin geometry and electrical values are confirmed in writing
  4. Samples from an existing tool, or a tool is cut for a new geometry
  5. Dimensional and electrical checks before shipment

See the plant that does this

Recommended Parts

Published parts from the range most used in this segment.

LCP self Terminating Base 8.76×6.48mm for Toroidal core - CB MagneticsLCP self Terminating Base 8.76×6.48mm for Toroidal coreLCPSMD Base 10×9.5×3.5mm 3+3 Pins - CB MagneticsSMD Base 10×9.5×3.5mm 3+3 Pins3+3 pinsPhenolic PM9630P 2.5mmSMD Base 14.6X17.78mm - CB MagneticsSMD Base 14.6X17.78mmPPSSMD Base 16.51X19.05MM - CB MagneticsSMD Base 16.51X19.05MMPPSSMD Base 19.8X22.7MM - CB MagneticsSMD Base 19.8X22.7MMPPSSMD Base 2.8X3.8mm 5P - CB MagneticsSMD Base 2.8X3.8mm 5P3+2 pinsPhenolic-PM9630SMD Base 2.8X3.8mm 6P - CB MagneticsSMD Base 2.8X3.8mm 6P3+3 pinsPhenolic-PM9630SMD Base 4.0X5.8mm 8P - CB MagneticsSMD Base 4.0X5.8mm 8P4+4 pinsPhenolic-PM9630SMD Base 4.27X2.6MM - CB MagneticsSMD Base 4.27X2.6MM3+2 pinsDAPSMD Base 5.5X5.7MM - CB MagneticsSMD Base 5.5X5.7MMLCP

View the full range

Related Reading

Plastic Choice for Toroid MountsPin and Footprint GuideMaterial Guide

Questions From Computing And Networking Buyers

Which parts do you supply into computing and networking

Surface mount bases and cases across a wide span of toroid diameters; Common mode chokes and filter inductors built on our own cases; RJ45 and LAN transformer modules.

Can you build the whole wound component

Yes. The former the core and the winding can come from one bill of materials and be quoted as a finished part.

What if the core shape I need is not listed

Send the drawing. Tool design and injection moulding are in-house services, so a new geometry is a tooling job.

Do you hold quality certification

ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018. All products are RoHS compliant.

How are prices set

Per part and per quantity. Send a part list or a drawing with annual volumes.

Send The Specification

A reference design a drawing or a part list is enough to start. Engineers reply, not a call centre.
