ETD Bobbins
ETD bobbins for round centre leg ETD cores used in higher power converters.
What This Series Covers
ETD bobbins for round centre leg ETD cores used in higher power converters. There are 13 published part numbers, and every one lists the plastic, the pin count and the pin geometry where the drawing states them.
If a geometry in this series is close but not exact, the tool room can modify pin counts, section splits and mounting features on a new tool rather than forcing a redesign around a stock part.
Materials Used In This Series
Counted from the published data for these 13 parts.
| Phenolic; Pin Material: CP Wire | 5 parts |
|---|---|
| Phenolic; Pin Material: CP Wire | 5 parts |
| Phenolic; Pin Material: CP Wire | 1 parts |
| Phenolic | 1 parts |
| PET | 1 parts |
All Parts In This Series
ETD 29 Bobbin, Vertical, 7+7 Pins, 1 Section7+7 pinsPhenolic; Pin Material: C
ETD29 Bobbin, Horizontal, 7+7 Pins, 1 Section7+7 pinsPhenolic; Pin Material: C
ETD34 Bobbin, Horizontal, 6+6 Pins, 2 Sections6+6 pinsPhenolic; Pin Material:
ETD34 Bobbin, Horizontal, 7+7 Pins, 1 Section7+7 pinsPhenolic; Pin Material:
ETD34 Bobbin, Horizontal, 7+7 Pins, 2 Sections7+7 pinsPhenolic; Pin Material: C

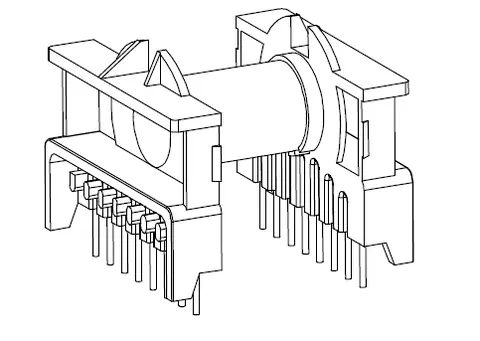

ETD39 Horizontal biobbin with 16 Pins8+8 pinsPhenolicP 5.00mm

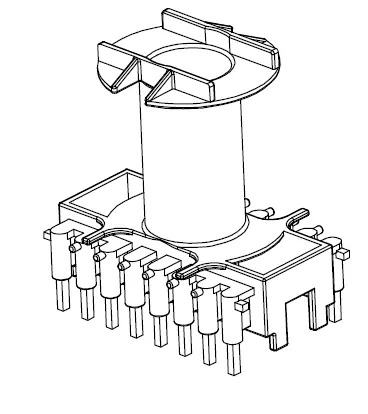

ETD39 Vertical bobbin with 16 Pins8+8 pinsPETP 5.08mm
ETD44 Bobbin, Horizontal, 9+9 Pins, 1 Section9+9 pinsPhenolic; Pin Material:
ETD49 Bobbin, Horizontal, 10+10 Pins, 1 Section10+10 pinsPhenolic; Pin Material:
ETD49 Bobbin, Vertical, 11+11 Pins, 1 Section11+11 pinsPhenolic; Pin Material: C
ETD54 Bobbin, Horizontal, 11+11 Pins, 1 Section11+11 pinsPhenolic; Pin Material:
ETD54 Bobbin, Horizontal, 5+8 Pins, 1 Section5+8 pinsPhenolic; Pin Material:
ETD59 Bobbin, Horizontal, 13+13 Pins, 1 Section13+13 pinsPhenolic; Pin Material: CSelection Table
Every published part in this series with its geometry side by side.
Questions About ETD Bobbins
How many etd bobbins are published
13 part numbers, listed above with material and pin geometry.
What if my size is not in the list
Send the drawing. Tool design and injection moulding are in-house services, so a size that is not in the catalogue is quoted as a tooling job rather than turned away.
Which plastics are used in this series
Phenolic; Pin Material: CP Wire, Phenolic; Pin Material: CP Wire, Phenolic; Pin Material: CP Wire, Phenolic, PET.
Can you supply the matching core
Yes. Silicon steel amorphous and nanocrystalline cores are in the same catalogue and complete wound components can be quoted.
Do you provide drawings and CAD
Dimensioned drawings are sent as PDF on request. CAD files are released on request via WhatsApp or email rather than as an open download.
Send Your Part List
Catalogue parts are quoted from existing tooling. Anything outside the list is quoted from your drawing.
