Through Hole Base and Case

Through hole bases headers and cases for wave soldered and hand assembled boards.

61 parts 13 plastics RoHS compliant
Request A Quote Talk To An Engineer Download Catalog

What This Series Covers

Through hole bases headers and cases for wave soldered and hand assembled boards. There are 61 published part numbers, and every one lists the plastic, the pin count and the pin geometry where the drawing states them.

If a geometry in this series is close but not exact, the tool room can modify pin counts, section splits and mounting features on a new tool rather than forcing a redesign around a stock part.

Back to Toroid Mounts and Bases

Materials Used In This Series

Counted from the published data for these 61 parts.

GFN18 parts
Phenolic16 parts
DAP5 parts
GFN/PBT/PET4 parts
PET3 parts
PBT3 parts
GFN/PBT3 parts
DAP (Black)2 parts

How to choose between them

All Parts In This Series

12X10mm base - CB Magnetics12X10mm base2+2 pinsPhenolicP 8.00mm25.4×15.24mm base for Totoidal core - CB Magnetics25.4×15.24mm base for Totoidal core2+2 pinsGFN/PBT/PETP 20.32mm27.94×20.32mm base with 4 pins for Toroid core - CB Magnetics27.94×20.32mm base with 4 pins for Toroid core2+2 pinsGFN/PBT/PETP 22.86mmBase 10X6mm for Toroidal core or coils - CB MagneticsBase 10X6mm for Toroidal core or coils2+2 pinsPhenolicP 7mmBASE 10×10 MM 6P - CB MagneticsBASE 10×10 MM 6PPhenolicBase 11.9X11.9MM - CB MagneticsBase 11.9X11.9MMPhenolicBase 13X9.2MM for Toroidal core - CB MagneticsBase 13X9.2MM for Toroidal core2+2 pinsPETP 8.4mmBase 23.32×15.7mm for Toroidal core or coils - CB MagneticsBase 23.32×15.7mm for Toroidal core or coils5+5 pinsGFNP 5.08mmBase 28x18mm for Toroidal core and coils - CB MagneticsBase 28x18mm for Toroidal core and coils5+5 pinsGFNP 6.25mmBase 33x23mm for Toroidal core or coils - CB MagneticsBase 33x23mm for Toroidal core or coils5+5 pinsGFNP 7.50mmDG380-5/PH - CB MagneticsDG380-5/PHDAPDG550-8/PH - CB MagneticsDG550-8/PHDAP (Black)Horizontal Toroid Cup DG965-4 - CB MagneticsHorizontal Toroid Cup DG965-4GFNHorizontal Toroid Mount DG1208-4 - CB MagneticsHorizontal Toroid Mount DG1208-4GFNHTC Part DG583-4 - CB MagneticsHTC Part DG583-4GFNHTC Part DG764-4 - CB MagneticsHTC Part DG764-4GFNThrough hole base 10.1X8.75X5.00mm - CB MagneticsThrough hole base 10.1X8.75X5.00mmDAPThrough hole base 10.1X8.75X6.00mm - CB MagneticsThrough hole base 10.1X8.75X6.00mmDAPThrough hole base 10.1X8.75X6.20mm - CB MagneticsThrough hole base 10.1X8.75X6.20mmDAPThrough hole base 10.2×8.7×6.0mm - CB MagneticsThrough hole base 10.2×8.7×6.0mmDAPThrough hole base DR-15 4 pins - CB MagneticsThrough hole base DR-15 4 pinsPhenolicP 10.0mmThrough hole base DR-15  5 pins - CB MagneticsThrough hole base DR-15  5 pinsPhenolicThrough hole base DR-15  6 pins - CB MagneticsThrough hole base DR-15  6 pinsPhenolicThrough hole base R-10 6PINS - CB MagneticsThrough hole base R-10 6PINSPA66Through hole base R-10 6PINS with cap - CB MagneticsThrough hole base R-10 6PINS with capPA66Toroid Mount DG400-8/PH - CB MagneticsToroid Mount DG400-8/PHDAP (Black)Toroid Mount DG440-8 - CB MagneticsToroid Mount DG440-8Phenolic (Black)Toroid Mount DG450-6 - CB MagneticsToroid Mount DG450-6PET (Black)Toroid Mount DG595-8 - CB MagneticsToroid Mount DG595-8Phenolic (Black)Toroidal Base for Toroidal core or coils - CB MagneticsToroidal Base for Toroidal core or coilsPhenolicP 10mmVertical Base DG244-8 - CB MagneticsVertical Base DG244-8PhenolicVertical base DG455-4 - CB MagneticsVertical base DG455-4GFNVertical base DG521-4 - CB MagneticsVertical base DG521-4PhenolicVertical Base DG540-4 - CB MagneticsVertical Base DG540-4PhenolicVertical Base DG555-4 - CB MagneticsVertical Base DG555-4GFN (Natural)/PETVertical Base DG590-3 - CB MagneticsVertical Base DG590-3PBTVertical base DG600-6 - CB MagneticsVertical base DG600-6GFN(Natural)Vertical Base DG620-2 - CB MagneticsVertical Base DG620-2PBTVertical Base DG650-6 - CB MagneticsVertical Base DG650-6PhenolicVertical Base DG681-4 - CB MagneticsVertical Base DG681-4PETVertical Base DG800-0 - CB MagneticsVertical Base DG800-0GFNVertical Base DG945-2 - CB MagneticsVertical Base DG945-2PBTVertical Base DG955-4 - CB MagneticsVertical Base DG955-4GFNVertical Toroid Cup DG1227-4 - CB MagneticsVertical Toroid Cup DG1227-4GFNVertical Toroid Cup DG1468-4 - CB MagneticsVertical Toroid Cup DG1468-4GFNVertical Toroid Cup DG613-4 - CB MagneticsVertical Toroid Cup DG613-4GFNVertical Toroid Cup DG774-4 - CB MagneticsVertical Toroid Cup DG774-4GFNVertical Toroid Mount DG100-4 - CB MagneticsVertical Toroid Mount DG100-4GFN/PBTVertical Toroid Mount DG120-0/06 - CB MagneticsVertical Toroid Mount DG120-0/06GFN/PBTVertical Toroid Mount DG1300-14 - CB MagneticsVertical Toroid Mount DG1300-14PhenolicVertical Toroid Mount DG160-0 - CB MagneticsVertical Toroid Mount DG160-0GFN/PBTVertical Toroid Mount DG254-4 - CB MagneticsVertical Toroid Mount DG254-4GFN/PBT/PETVertical Toroid Mount DG280-4 - CB MagneticsVertical Toroid Mount DG280-4GFN/PBT/PETVertical Toroid Mount DG500-4 - CB MagneticsVertical Toroid Mount DG500-4PhenolicVertical Toroid Mount DG950-6 - CB MagneticsVertical Toroid Mount DG950-6PhenolicVTC Part DG1156-4 - CB MagneticsVTC Part DG1156-4GFNVTC Part DG512-4 - CB MagneticsVTC Part DG512-4GFNVTC Part DG935-4 - CB MagneticsVTC Part DG935-4GFNVTM BASE DG1050-10 - CB MagneticsVTM BASE DG1050-10PhenolicVTM Part DG1060-08 - CB MagneticsVTM Part DG1060-08GFNVTM Part DG980-3 - CB MagneticsVTM Part DG980-3PET

Selection Table

Every published part in this series with its geometry side by side.

Part numberMaterialPin DistanceRow DistanceRating
12X10mm basePhenolic8.00mm7.00mmUL 94-V0, Class F
25.4×15.24mm base for Totoidal coreGFN/PBT/PET20.32mm10.16mmUL 94-V0, Class F
27.94×20.32mm base with 4 pins for Toroid coreGFN/PBT/PET22.86mm15.24mmUL 94-V0, Class F
Base 10X6mm for Toroidal core or coilsPhenolic7mm4mmUL 94-V0, Class F
BASE 10×10 MM 6PPhenolic——UL 94-V0, Class F
Base 11.9X11.9MMPhenolic——UL 94-V0, Class F
Base 13X9.2MM for Toroidal corePET8.4mm6mmUL 94-V0, Class F
Base 23.32×15.7mm for Toroidal core or coilsGFN5.08mm12.7mmUL 94-V0
Base 28x18mm for Toroidal core and coilsGFN6.25mm15mmUL 94-V0
Base 33x23mm for Toroidal core or coilsGFN7.50mm20.00mmUL 94-V0
DG380-5/PHDAP———
DG550-8/PHDAP (Black)———
Horizontal Toroid Cup DG965-4GFN——UL 94-V0
Horizontal Toroid Mount DG1208-4GFN——UL 94-V0
HTC Part DG583-4GFN——UL 94-V0
HTC Part DG764-4GFN——UL 94-V0
Through hole base 10.1X8.75X5.00mmDAP———
Through hole base 10.1X8.75X6.00mmDAP———
Through hole base 10.1X8.75X6.20mmDAP———
Through hole base 10.2×8.7×6.0mmDAP———
Through hole base DR-15 4 pinsPhenolic10.0mm——
Through hole base DR-15  5 pinsPhenolic———
Through hole base DR-15  6 pinsPhenolic———
Through hole base R-10 6PINSPA66———
Through hole base R-10 6PINS with capPA66———
Toroid Mount DG400-8/PHDAP (Black)———
Toroid Mount DG440-8Phenolic (Black)———
Toroid Mount DG450-6PET (Black)———
Toroid Mount DG595-8Phenolic (Black)———
Toroidal Base for Toroidal core or coilsPhenolic10mm—UL 94-V0, Class F
Vertical Base DG244-8Phenolic——UL 94-V0
Vertical base DG455-4GFN——UL 94-V0
Vertical base DG521-4Phenolic——UL 94-V0
Vertical Base DG540-4Phenolic——UL 94-V0
Vertical Base DG555-4GFN (Natural)/PET——UL 94-V0
Vertical Base DG590-3PBT———

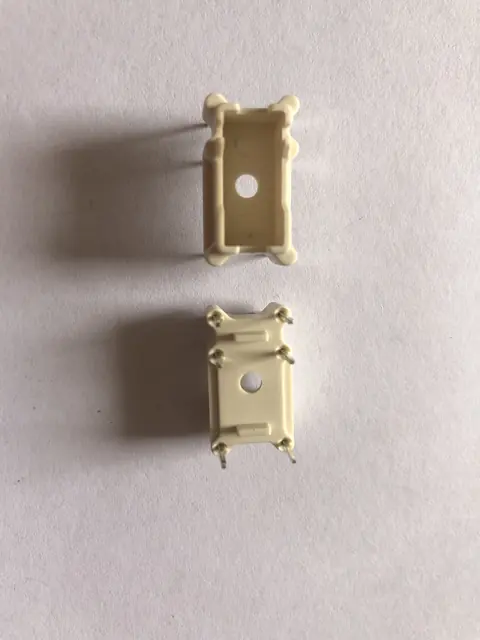

Vertical base DG600-6GFN(Natural)———
Vertical Base DG620-2PBT———
Vertical Base DG650-6Phenolic——UL 94-V0
Vertical Base DG681-4PET———
Vertical Base DG800-0GFN———
Vertical Base DG945-2PBT———
Vertical Base DG955-4GFN——UL 94-V0
Vertical Toroid Cup DG1227-4GFN——UL 94-V0
Vertical Toroid Cup DG1468-4GFN——UL 94-V0
Vertical Toroid Cup DG613-4GFN——UL 94-V0
Vertical Toroid Cup DG774-4GFN——UL 94-V0

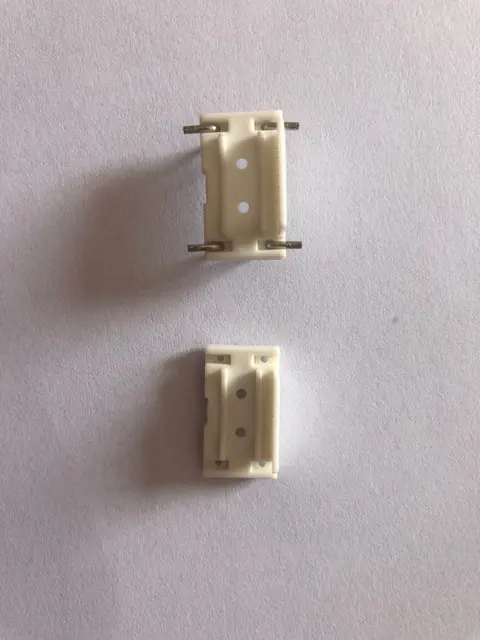

Vertical Toroid Mount DG100-4GFN/PBT——UL 94-V0, Class F
Vertical Toroid Mount DG120-0/06GFN/PBT——UL 94-V0, Class F

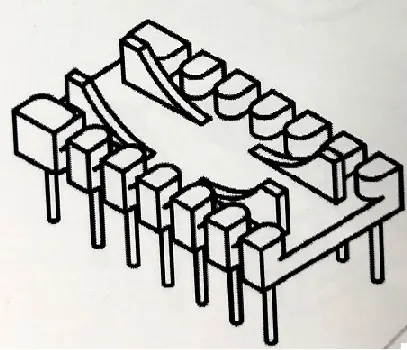

Vertical Toroid Mount DG1300-14Phenolic——UL 94-V0
Vertical Toroid Mount DG160-0GFN/PBT——UL 94-V0, Class F
Vertical Toroid Mount DG254-4GFN/PBT/PET——UL 94-V0, Class F
Vertical Toroid Mount DG280-4GFN/PBT/PET——UL 94-V0, Class
Vertical Toroid Mount DG500-4Phenolic———
Vertical Toroid Mount DG950-6Phenolic———
VTC Part DG1156-4GFN——UL 94-V0
VTC Part DG512-4GFN——UL 94-V0
VTC Part DG935-4GFN——UL 94-V0
VTM BASE DG1050-10Phenolic——UL 94-V0
VTM Part DG1060-08GFN——UL 94-V0
VTM Part DG980-3PET——UL 94-V0

Questions About Through Hole Base and Case

How many through hole base and case are published

61 part numbers, listed above with material and pin geometry.

What if my size is not in the list

Send the drawing. Tool design and injection moulding are in-house services, so a size that is not in the catalogue is quoted as a tooling job rather than turned away.

Which plastics are used in this series

Phenolic, GFN/PBT/PET, PET, GFN, DAP, DAP (Black).

Can you supply the matching core

Yes. Silicon steel amorphous and nanocrystalline cores are in the same catalogue and complete wound components can be quoted.

Do you provide drawings and CAD

Dimensioned drawings are sent as PDF on request. CAD files are released on request via WhatsApp or email rather than as an open download.

Send Your Part List

Catalogue parts are quoted from existing tooling. Anything outside the list is quoted from your drawing.
