EP Bobbins
EP bobbins for the shielded EP core shape used where radiated field has to be contained.
What This Series Covers
EP bobbins for the shielded EP core shape used where radiated field has to be contained. There are 20 published part numbers, and every one lists the plastic, the pin count and the pin geometry where the drawing states them.
If a geometry in this series is close but not exact, the tool room can modify pin counts, section splits and mounting features on a new tool rather than forcing a redesign around a stock part.
Materials Used In This Series
Counted from the published data for these 20 parts.
| Phenolic | 3 parts |
|---|---|
| PM9630 | 3 parts |
| LCP; Pin Material: Phos Bronze | 2 parts |
| LCP; Pin Material: Phos Bronze | 2 parts |
| Phenolic PM9630 | 2 parts |
| Phenolic; Pin Material: CP Wire | 1 parts |
| Phenolic; Pin Material: Phos Bronze | 1 parts |
| Phenolic; Pin Material: Phosphorus Bronze | 1 parts |
All Parts In This Series
EP10 SMD Bobbin, 4+4 Pins, 1 Section4+4 pinsLCP; Pin Material: Phos B
EP10 SMD Bobbin, 4+4 Pins, 2 Sections4+4 pinsLCP; Pin Material: Phos B
EP13 Bobbin, 5+5 Pins, 1 Section5+5 pinsPhenolicP 2.5 mm, Row Di
EP13 Bobbin, 5+5 Pins, 2 Sections5+5 pinsPhenolic; Pin Material: CPP 2.5mm; Row Di
EP13 SMD Bobbin, 5+5 Pins, 1 Section5+5 pinsLCP; Pin Material: Phos
EP13 SMD Bobbin, 5+5 Pins, 1 Section, Type C5+5 pinsLCP; Pin Material: Phos
EP13 SMD Bobbin, 5+5 Pins, 4 Sections5+5 pinsPhenolic; Pin Material:
EP5 SMD Bobbin, 3+3 Pins, 1 Section3+3 pinsPhenolic; Pin Material: Ph
EP7 Bobbin, 3+3 Pins, 1 Section3+3 pinsPhenolicP 2.54mm, Row Di
EP7 Bobbin, 3+3 Pins, 2 Section3+3 pinsPhenolicP 2.54mm, Row Di
EP7 SMD Bobbin, 3+3 Pins, 1 Section, Type C3+3 pinsLCP ; Pin Material: Phosph
EP7 SMD Bobbin, 3+3 Pins, 2 Section3+3 pinsLCP; Pin Material: Phosph
EP7 SMD Bobbin, 4+4 Pins, 1 Section4+4 pinsPhenolic; Pin Material: P
SMD EP13 8+8 Pins8+8 pinsPhenolic PM9630P 1.7mm
SMD EP13 Bobbin 2 Sections 5+5 Pins Type L5+5 pinsPhenolic/DAP
SMD EP13 Bobbin 5+5 Pins, 2 Sections5+5 pinsPhenolic PM9630

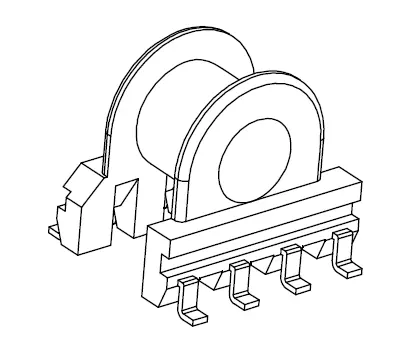

SMD EP7 Bobbin4+4 pinsPM9630
SMD EP7 Bobbin 2 Sections3+3 pinsPM9630
SMD EP7 Bobbin of LCP Material3+3 pinsLCP
SMD EP7 Bobbin Type L4+4 pinsPM9630Selection Table
Every published part in this series with its geometry side by side.
| Part number | Pins | Material | Pin Distance | Rating |
|---|---|---|---|---|
| EP10 SMD Bobbin, 4+4 Pins, 1 Section | — | LCP; Pin Material: Phos Bronze | — | — |
| EP10 SMD Bobbin, 4+4 Pins, 2 Sections | — | LCP; Pin Material: Phos Bronze | — | — |
| EP13 Bobbin, 5+5 Pins, 1 Section | — | Phenolic | 2.5 mm, Row Distance: 10.2 mm | — |
| EP13 Bobbin, 5+5 Pins, 2 Sections | — | Phenolic; Pin Material: CP Wire | 2.5mm; Row Distance: 10.0 mm | — |
| EP13 SMD Bobbin, 5+5 Pins, 1 Section | — | LCP; Pin Material: Phos Bronze | — | — |
| EP13 SMD Bobbin, 5+5 Pins, 1 Section, Type C | — | LCP; Pin Material: Phos Bronze | — | — |
| EP13 SMD Bobbin, 5+5 Pins, 4 Sections | — | Phenolic; Pin Material: Phos Bronze | — | — |
| EP5 SMD Bobbin, 3+3 Pins, 1 Section | — | Phenolic; Pin Material: Phosphorus Bronze | — | — |
| EP7 Bobbin, 3+3 Pins, 1 Section | — | Phenolic | 2.54mm, Row Distance: 5.08mm | — |
| EP7 Bobbin, 3+3 Pins, 2 Section | — | Phenolic | 2.54mm, Row Distance: 5.50 mm | — |
| EP7 SMD Bobbin, 3+3 Pins, 1 Section, Type C | — | LCP ; Pin Material: Phosphorus Bronze | — | — |
| EP7 SMD Bobbin, 3+3 Pins, 2 Section | — | LCP; Pin Material: Phosphorus Bronze | — | — |
| EP7 SMD Bobbin, 4+4 Pins, 1 Section | — | Phenolic; Pin Material: Phos Bronze | — | — |
| SMD EP13 8+8 Pins | — | Phenolic PM9630 | 1.7mm | — |
| SMD EP13 Bobbin 2 Sections 5+5 Pins Type L | 5+5 | Phenolic/DAP | — | UL 94-V0 |
| SMD EP13 Bobbin 5+5 Pins, 2 Sections | 5+5 | Phenolic PM9630 | — | UL 94-V0 |
| SMD EP7 Bobbin | — | PM9630 | — | UL 94-V0, Class F |
| SMD EP7 Bobbin 2 Sections | — | PM9630 | — | UL 94-V0, Class F |
| SMD EP7 Bobbin of LCP Material | — | LCP | — | UL 94-V0, Class F |
| SMD EP7 Bobbin Type L | — | PM9630 | — | UL 94-V0, Class F |
Questions About EP Bobbins
How many ep bobbins are published
20 part numbers, listed above with material and pin geometry.
What if my size is not in the list
Send the drawing. Tool design and injection moulding are in-house services, so a size that is not in the catalogue is quoted as a tooling job rather than turned away.
Which plastics are used in this series
LCP; Pin Material: Phos Bronze, Phenolic, Phenolic; Pin Material: CP Wire, LCP; Pin Material: Phos Bronze, Phenolic; Pin Material: Phos Bronze, Phenolic; Pin Material: Phosphorus Bronze.
Can you supply the matching core
Yes. Silicon steel amorphous and nanocrystalline cores are in the same catalogue and complete wound components can be quoted.
Do you provide drawings and CAD
Dimensioned drawings are sent as PDF on request. CAD files are released on request via WhatsApp or email rather than as an open download.
Send Your Part List
Catalogue parts are quoted from existing tooling. Anything outside the list is quoted from your drawing.
