PQ Bobbins

PQ bobbins for the PQ core family where winding window and core volume have to be balanced.

54 parts 5 plastics 12 pin counts RoHS compliant
Request A Quote Talk To An Engineer Download Catalog

What This Series Covers

PQ bobbins for the PQ core family where winding window and core volume have to be balanced. There are 54 published part numbers, and every one lists the plastic, the pin count and the pin geometry where the drawing states them.

If a geometry in this series is close but not exact, the tool room can modify pin counts, section splits and mounting features on a new tool rather than forcing a redesign around a stock part.

Back to Transformer Bobbins

Materials Used In This Series

Counted from the published data for these 54 parts.

Phenolic41 parts
Phenolic, Pin Material: CP Wire9 parts
LCP, Pin Material: CP Wire2 parts
PET1 parts
LCP1 parts

How to choose between them

All Parts In This Series

PQ2008 Vertical bobbin with 8 Pins - CB MagneticsPQ2008 Vertical bobbin with 8 Pins4+2+2 pinsPhenolicP 3.0/4.5/6.45mmPQ2016 Bobbin, 6+8 Pins, 1 Section - CB MagneticsPQ2016 Bobbin, 6+8 Pins, 1 Section6+8 pinsPhenolic, Pin Material: CPQ2016 Vertical Bobbin 4+6 Pins - CB MagneticsPQ2016 Vertical Bobbin 4+6 Pins4+6 pinsPhenolicP 2.5mmPQ2016 Vertical bobbin with 8 Pins - CB MagneticsPQ2016 Vertical bobbin with 8 Pins6+2 pinsPhenolicP 3.8/4.95mmPQ2020 Bobbin, 6+8 Pins, 1 Section - CB MagneticsPQ2020 Bobbin, 6+8 Pins, 1 Section6+8 pinsPhenolic, Pin Material: CPQ2620 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ2620 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ2621 Vertical Bobbin with 12 Pins - CB MagneticsPQ2621 Vertical Bobbin with 12 Pins6+6 pinsPhenolicP 3.8/7.6mmPQ2625 Bobbin without Pins - CB MagneticsPQ2625 Bobbin without PinsPhenolicPQ2625 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ2625 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ2625 Vertical Bobbin with 4 Pins - CB MagneticsPQ2625 Vertical Bobbin with 4 Pins2+2 pinsPhenolicP 7.62mmPQ2635 Vertical Bobbin with 12 Pins - CB MagneticsPQ2635 Vertical Bobbin with 12 Pins6+6 pinsPhenolicP 3.8/7.5mmPQ26X22.5 Vertical Bobbin with 12 Pins - CB MagneticsPQ26X22.5 Vertical Bobbin with 12 Pins6+6 pinsPhenolicP 3.8/7.5mmPQ3220 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ3220 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ3220 Vertical bobbin with 6 Pins - CB MagneticsPQ3220 Vertical bobbin with 6 Pins3+3 pinsPhenolicP 4.0mmPQ3220 Vertical Bobbin with 11 Pins - CB MagneticsPQ3220 Vertical Bobbin with 11 Pins6+5 pinsPhenolicP 5.1/7.5mmPQ3220 Vertical bobbin with 16 Pins - CB MagneticsPQ3220 Vertical bobbin with 16 Pins8+8 pinsPhenolicP 4.0/5.0mmPQ3220 Vertical Bobbin without Pins - CB MagneticsPQ3220 Vertical Bobbin without PinsPhenolicPQ3225 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ3225 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ3225 Horizontal bobbin with 16 Pins - CB MagneticsPQ3225 Horizontal bobbin with 16 Pins8+8 pinsPhenolicP 4.0/5.0mmPQ3225 Vertical bobbin with 16 pins - CB MagneticsPQ3225 Vertical bobbin with 16 pins8+8 pinsPhenolicP 4.0/5.0mmPQ3230 BOBBIN without Pins - CB MagneticsPQ3230 BOBBIN without PinsPhenolicPQ3230 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ3230 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ3230 Horizontal bobbin with 12 Pins - CB MagneticsPQ3230 Horizontal bobbin with 12 Pins6+6 pinsPhenolicP 5.0/7.5mmPQ3230 Horizontal bobbin with 16 pins - CB MagneticsPQ3230 Horizontal bobbin with 16 pins8+8 pinsPhenolicP 4.0/5.0mmPQ3230 Vertical bobbin with 12 Pins - CB MagneticsPQ3230 Vertical bobbin with 12 Pins6+6 pinsPhenolicP 5.0/10.0mmPQ3230 Vertical bobbin with 16 Pins - CB MagneticsPQ3230 Vertical bobbin with 16 Pins8+8 pinsPhenolicP 4.0/5.0mmPQ3230 vertical bobbin with 2 sections - CB MagneticsPQ3230 vertical bobbin with 2 sections6+6 pinsPhenolicP 5.0/10.0mmPQ3235 Horizontal bobbin with 16 Pins - CB MagneticsPQ3235 Horizontal bobbin with 16 Pins8+8 pinsPhenolicP 4.0/5.0mmPQ3235 Vertical bobbin with 12 Pins - CB MagneticsPQ3235 Vertical bobbin with 12 Pins6+6 pinsPhenolicP 5.0/7.5mmPQ33 Bobbin without Pins - CB MagneticsPQ33 Bobbin without PinsPhenolicPQ35 Vertical bobbin with 10 Pins - CB MagneticsPQ35 Vertical bobbin with 10 Pins6+4 pinsPhenolicP 5.0/7.4mmPQ3528 Vertical bobbin with 12 pins - CB MagneticsPQ3528 Vertical bobbin with 12 pins6+6 pinsPhenolicP 5.08/10.16mmPQ3530 Horizontal bobbin with 16 Pins - CB MagneticsPQ3530 Horizontal bobbin with 16 Pins8+8 pinsPhenolicP 4.0/5.0mmPQ3535 Bobbin without pins - CB MagneticsPQ3535 Bobbin without pinsPhenolicpq3535 horizontal bobbin with 2 sections - CB Magneticspq3535 horizontal bobbin with 2 sections7+7 pinsPhenolicP 5.0mmPQ3535, 6+6 Pins, 1 Section - CB MagneticsPQ3535, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ36 Vertical bobbin with 5 Pins - CB MagneticsPQ36 Vertical bobbin with 5 Pins3+2 pinsPETR 38.75mmPQ3813 Vertical bobbin with 6 Pins - CB MagneticsPQ3813 Vertical bobbin with 6 Pins3+3 pinsPhenolicP 6.00/7.50mmPQ3813 Vertical bobbin with 9 Pins - CB MagneticsPQ3813 Vertical bobbin with 9 Pins4+5 pinsPhenolicP 6.0/5.0mmPQ3813 Vertical bobbin with 9 type-L Pins - CB MagneticsPQ3813 Vertical bobbin with 9 type-L Pins4+5 pinsPhenolicP 6.0/5.0mmPQ4013 Vertical bobbin with 9 Pins - CB MagneticsPQ4013 Vertical bobbin with 9 Pins5+4 pinsPhenolicP 5.0/6.0mmPQ4013 Vertical bobbin with 9 type-L pins - CB MagneticsPQ4013 Vertical bobbin with 9 type-L pins5+4 pinsPhenolicP 5.0/6.0mmPQ4040 Bobbin, 6+6 Pins, 1 Section - CB MagneticsPQ4040 Bobbin, 6+6 Pins, 1 Section6+6 pinsPhenolic, Pin Material: CPQ4040 Horizontal bobbin with 14 pins - CB MagneticsPQ4040 Horizontal bobbin with 14 pins7+7 pinsPhenolicP 5.00mmPQ4040 Horizontal bobbin with 2 sections - CB MagneticsPQ4040 Horizontal bobbin with 2 sections7+7 pinsPhenolicP 5.00mmPQ4040 Vertical bobbin with 16 Pins - CB MagneticsPQ4040 Vertical bobbin with 16 Pins8+8 pinsPhenolicP 5.0/7.5mmPQ4040 Vertical bobbin with 2 sections no pins - CB MagneticsPQ4040 Vertical bobbin with 2 sections no pinsPhenolicPQ5030 Vertical bobbin with 12 Pins - CB MagneticsPQ5030 Vertical bobbin with 12 Pins6+6 pinsPhenolicP 7.40/12.60mmPQ5050 Bobbin, 7+7 Pins, 1 Section - CB MagneticsPQ5050 Bobbin, 7+7 Pins, 1 Section7+7 pinsLCP, Pin Material: CP WirPQ5050 Bobbin, 7+7 Pins, 2 Sections - CB MagneticsPQ5050 Bobbin, 7+7 Pins, 2 Sections7+7 pinsLCP, Pin Material: CP WirPQ5050 Bobbin, No Pin, 1 Section - CB MagneticsPQ5050 Bobbin, No Pin, 1 SectionLCPPQ5050 Horizontal Bobbin, 8+8 Pins - CB MagneticsPQ5050 Horizontal Bobbin, 8+8 Pins8+8 pinsPhenolicPQ5050 Vertical Bobbin 2 Sections 6+6 Pins - CB MagneticsPQ5050 Vertical Bobbin 2 Sections 6+6 Pins6+6 pinsPhenolicP 7.4mm, 12.4mmPQ5050 Vertical Bobbin 6+6 Pins 1 section - CB MagneticsPQ5050 Vertical Bobbin 6+6 Pins 1 section6+6 pinsPhenolicP 7.4mm, 12.4mm

Selection Table

Every published part in this series with its geometry side by side.

Part numberPinsMaterialPin DistanceRow DistanceRating
PQ2008 Vertical bobbin with 8 Pins4+2+2Phenolic3.0/4.5/6.45mm15.2/21.3mm—
PQ2016 Bobbin, 6+8 Pins, 1 Section—Phenolic, Pin Material: CP Wire———
PQ2016 Vertical Bobbin 4+6 Pins—Phenolic2.5mm20.2mm—
PQ2016 Vertical bobbin with 8 Pins6+2Phenolic3.8/4.95mm22.9mm—
PQ2020 Bobbin, 6+8 Pins, 1 Section—Phenolic, Pin Material: CP Wire———
PQ2620 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———
PQ2621 Vertical Bobbin with 12 Pins6+6Phenolic3.8/7.6mm25.4mm—
PQ2625 Bobbin without Pins—Phenolic———
PQ2625 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———
PQ2625 Vertical Bobbin with 4 Pins2+2Phenolic7.62mm25.4mm—
PQ2635 Vertical Bobbin with 12 Pins6+6Phenolic3.8/7.5mm25.5mm—

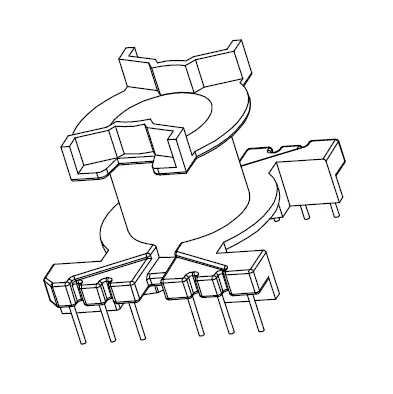

PQ26X22.5 Vertical Bobbin with 12 Pins6+6Phenolic3.8/7.5mm25.4mm—
PQ3220 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———

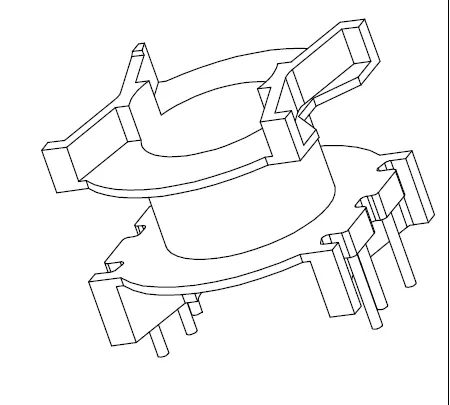

PQ3220 Vertical bobbin with 6 Pins3+3Phenolic4.0mm21.9mm—

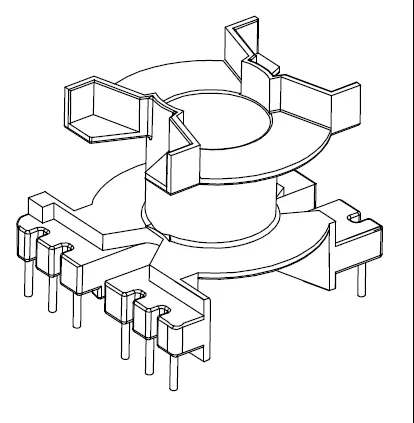

PQ3220 Vertical Bobbin with 11 Pins6+5Phenolic5.1/7.5mm30.8mm—
PQ3220 Vertical bobbin with 16 Pins8+8Phenolic4.0/5.0mm30.0mm—
PQ3220 Vertical Bobbin without Pins—Phenolic———
PQ3225 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———

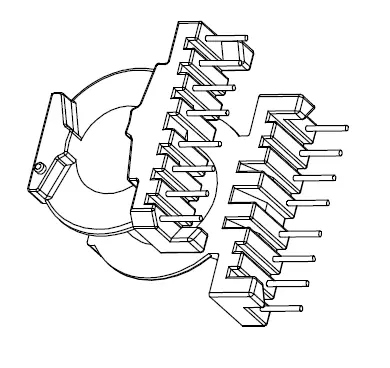

PQ3225 Horizontal bobbin with 16 Pins8+8Phenolic4.0/5.0mm30.0mm—
PQ3225 Vertical bobbin with 16 pins8+8Phenolic4.0/5.0mm30.0mm—

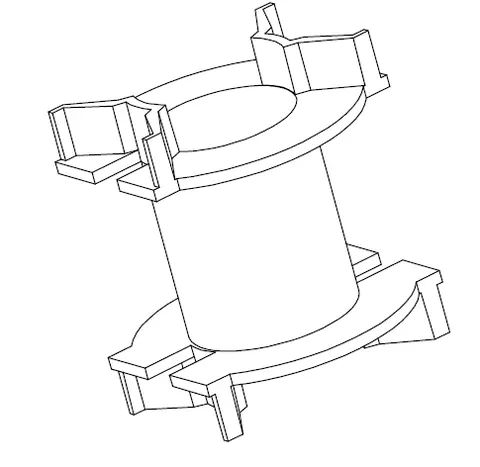

PQ3230 BOBBIN without Pins—Phenolic———
PQ3230 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———

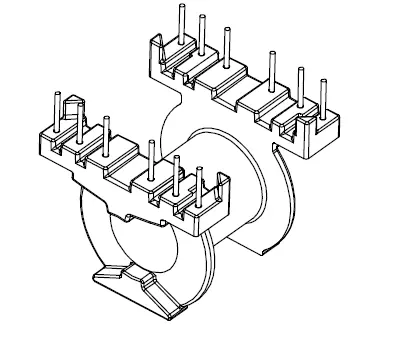

PQ3230 Horizontal bobbin with 12 Pins6+6Phenolic5.0/7.5mm30.0mm—
PQ3230 Horizontal bobbin with 16 pins8+8Phenolic4.0/5.0mm30.2mm—
PQ3230 Vertical bobbin with 12 Pins6+6Phenolic5.0/10.0mm35.5mm—
PQ3230 Vertical bobbin with 16 Pins8+8Phenolic4.0/5.0mm30.0mm—

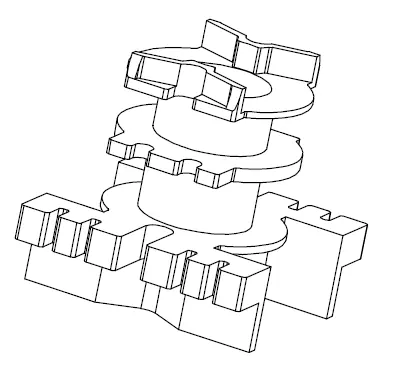

PQ3230 vertical bobbin with 2 sections6+6Phenolic5.0/10.0mm35.5mm—

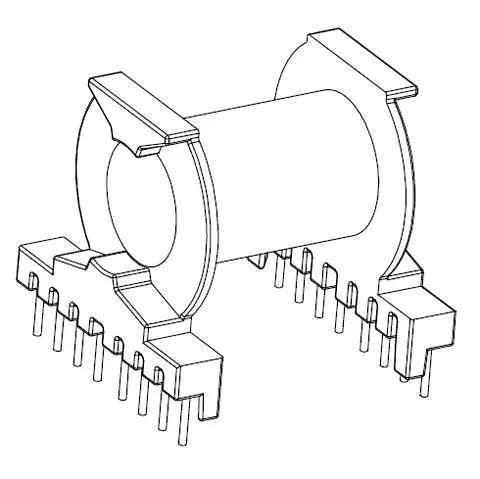

PQ3235 Horizontal bobbin with 16 Pins8+8Phenolic4.0/5.0mm30.0mm—

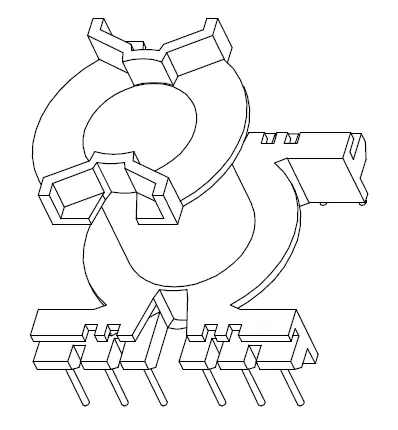

PQ3235 Vertical bobbin with 12 Pins6+6Phenolic5.0/7.5mm30.0mm—
PQ33 Bobbin without Pins—Phenolic———
PQ35 Vertical bobbin with 10 Pins6+4Phenolic5.0/7.4mm30.5mm—
PQ3528 Vertical bobbin with 12 pins6+6Phenolic5.08/10.16mm35.5mm—

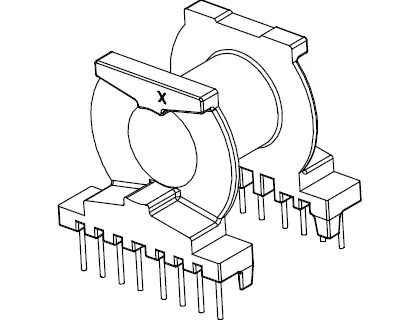

PQ3530 Horizontal bobbin with 16 Pins8+8Phenolic4.0/5.0mm29.8mm—
PQ3535 Bobbin without pins—Phenolic———

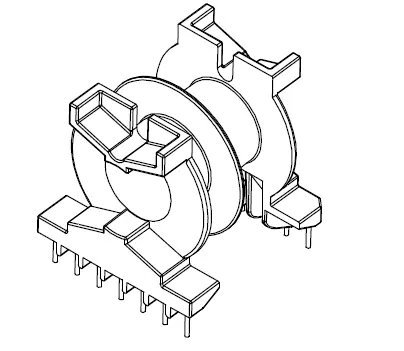

pq3535 horizontal bobbin with 2 sections7+7Phenolic5.0mm32.0mm—
PQ3535, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———
PQ36 Vertical bobbin with 5 Pins3+2PET—38.75mm—
PQ3813 Vertical bobbin with 6 Pins3+3Phenolic6.00/7.50mm47.00mm—

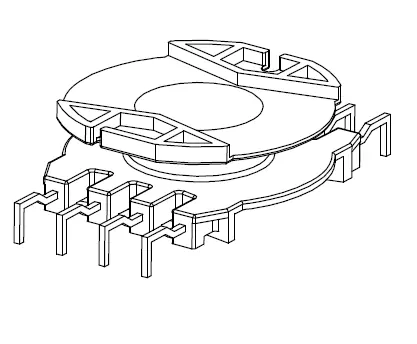

PQ3813 Vertical bobbin with 9 Pins4+5Phenolic6.0/5.0mm47.0mm—

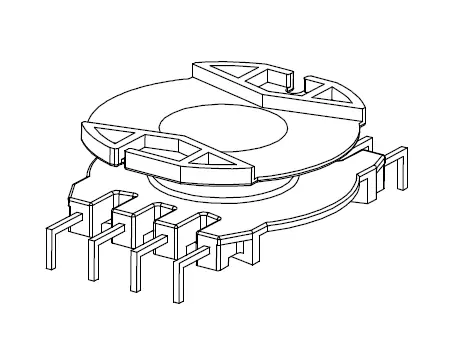

PQ3813 Vertical bobbin with 9 type-L Pins4+5Phenolic6.0/5.0mm43.0mm—

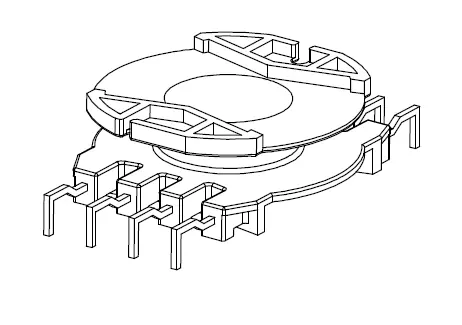

PQ4013 Vertical bobbin with 9 Pins5+4Phenolic5.0/6.0mm47.00mm—

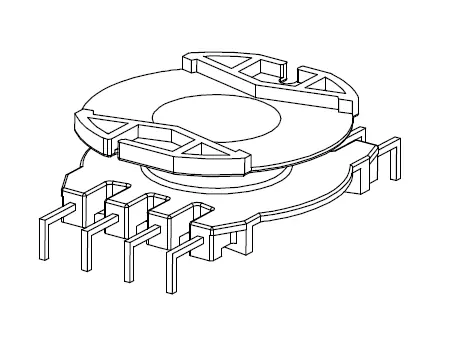

PQ4013 Vertical bobbin with 9 type-L pins5+4Phenolic5.0/6.0mm43.00mm—
PQ4040 Bobbin, 6+6 Pins, 1 Section—Phenolic, Pin Material: CP Wire———

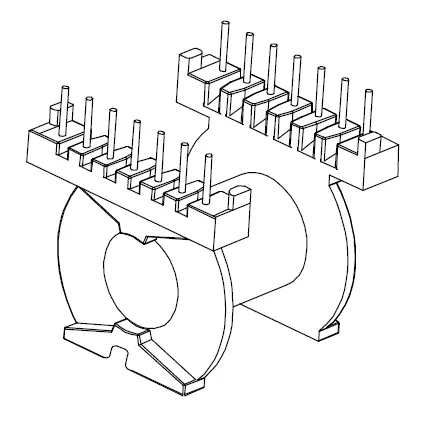

PQ4040 Horizontal bobbin with 14 pins7+7Phenolic5.00mm35.00mm—

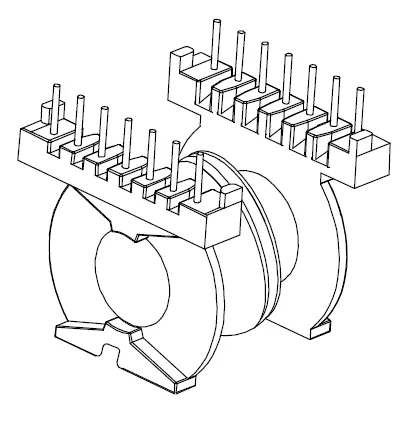

PQ4040 Horizontal bobbin with 2 sections7+7Phenolic5.00mm35.00mm—
PQ4040 Vertical bobbin with 16 Pins8+8Phenolic5.0/7.5mm40.0mm—

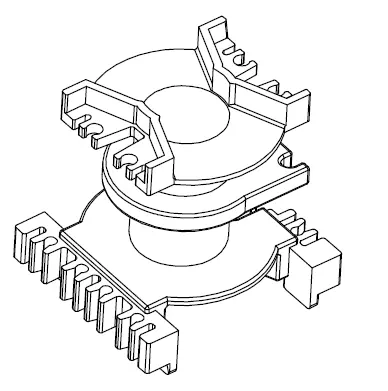

PQ4040 Vertical bobbin with 2 sections no pins—Phenolic———

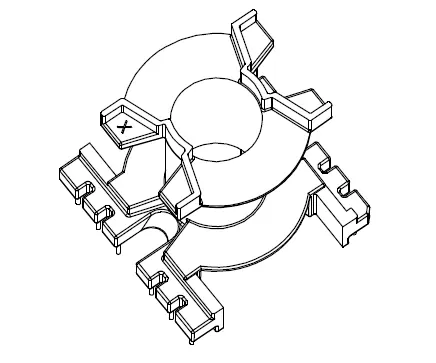

PQ5030 Vertical bobbin with 12 Pins6+6Phenolic7.40/12.60mm46.00mm—
PQ5050 Bobbin, 7+7 Pins, 1 Section—LCP, Pin Material: CP Wire———
PQ5050 Bobbin, 7+7 Pins, 2 Sections—LCP, Pin Material: CP Wire———
PQ5050 Bobbin, No Pin, 1 Section—LCP———
PQ5050 Horizontal Bobbin, 8+8 Pins—Phenolic——UL 94-VO

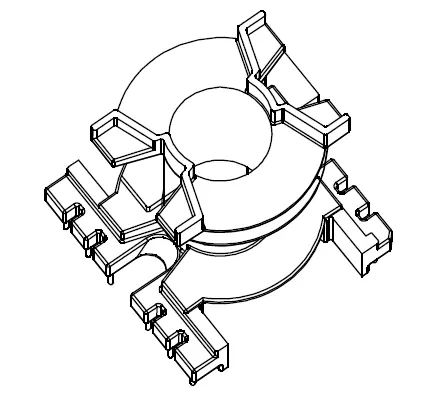

PQ5050 Vertical Bobbin 2 Sections 6+6 Pins—Phenolic7.4mm, 12.4mm45.6mm—

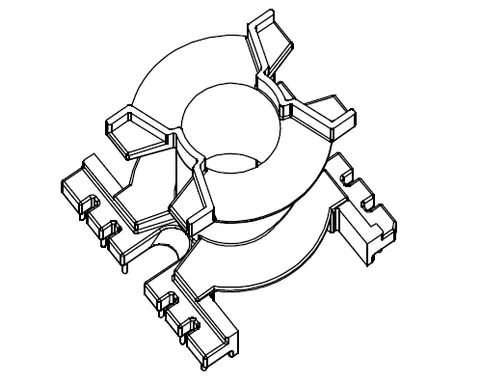

PQ5050 Vertical Bobbin 6+6 Pins 1 section—Phenolic7.4mm, 12.4mm45.6mm—

Questions About PQ Bobbins

How many pq bobbins are published

54 part numbers, listed above with material and pin geometry.

What if my size is not in the list

Send the drawing. Tool design and injection moulding are in-house services, so a size that is not in the catalogue is quoted as a tooling job rather than turned away.

Which plastics are used in this series

Phenolic, Phenolic, Pin Material: CP Wire, PET, LCP, Pin Material: CP Wire, LCP.

Can you supply the matching core

Yes. Silicon steel amorphous and nanocrystalline cores are in the same catalogue and complete wound components can be quoted.

Do you provide drawings and CAD

Dimensioned drawings are sent as PDF on request. CAD files are released on request via WhatsApp or email rather than as an open download.

Send Your Part List

Catalogue parts are quoted from existing tooling. Anything outside the list is quoted from your drawing.
