Vacuum Brazed Diamond Blade
One blade for stone concrete and brick cut dry
Vacuum brazing exposes single diamond crystals on the surface, so the blade cuts fast and dry through whatever the renovation turns up. Dia 105-230 mm with mesh sizes 30/40, 40/45 and 70/80.
What Vacuum Brazed Diamond Blade Is For
The plant specification sheet describes this tool as used for fast and long-life cutting stone, concrete, brick, and other abrasive materials. That is exactly where it belongs, and where it stops.
Standard specification: Dia105-230mm , hole size: 20/22.23mm, mesh size:30/40 40/45 70/80.
Vacuum Brazed Diamond Blade is the whole of the Brazed Cutting Blade category, so specification work happens inside the item rather than by picking between siblings.
How It Is Built
Bond selected per enquiry
We do not ship a single general-purpose bond. Please inform the material you will cut, we will choose the best bonding for you.
Size and mesh programme
Dia105-230mm , hole size: 20/22.23mm, mesh size:30/40 40/45 70/80.
Sizes beyond the standard list
Other sizes are available upon customer's request.
Export handling
Packed for export and shipped from Shangqiu, Henan. Give us your destination port with the enquiry.
Sizes and Item IDs
Taken from the plant specification sheets. Where a value is not published we say so rather than fill it in.
No size table is published for this item. Specification is quoted per enquiry — send the material, machine and size you need. (TBC)
- Product family
- Vacuum Brazed Tools
- Category
- Brazed Cutting Blade
- Bond
- Please inform the material you will cut, we will choose the best bonding for you.
- Standard specification
- Dia105-230mm , hole size: 20/22.23mm, mesh size:30/40 40/45 70/80
- Country of manufacture
- China (Shangqiu, Henan)
- Private label
- Laser marking on the steel core available for OEM orders

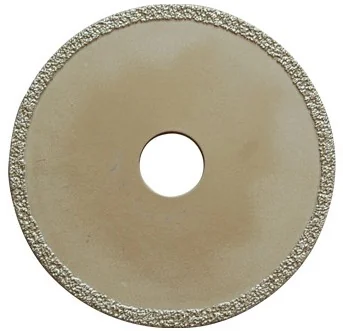

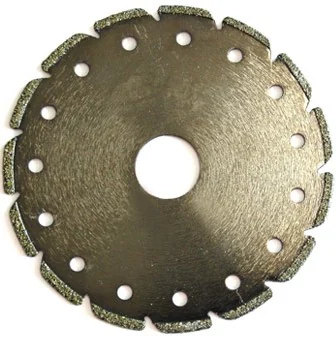

More Views of Vacuum Brazed Diamond Blade
Photographs supplied by the plant. What you see is the tool as produced, not a render.
Who It Is For
- Renovation and rescue crews cutting unknown material
- Plumbers and installers cutting openings
- Contractors who cannot use water on site
Every one of these buyers gets the same first question from us: what material, what machine, what size.
The Problem It Solves
On a renovation site nobody knows whether the next cut is brick, stone or concrete.
Vacuum Brazed Diamond Blade is the answer to that in the brazed cutting blade part of the range: one blade for stone concrete and brick cut dry.
Used for fast and long-life cutting stone, concrete, brick, and other abrasive materials.
Why This Version and Not Another
One blade cuts stone concrete brick and other abrasive material
Applies across the brazed cutting blade series, including this item.
Dia 105-230 mm on 20 and 22.23 mm bores
Part of how this category is built.
Mesh sizes 30/40 40/45 70/80 for different finish and speed
Part of how this category is built.
Use Guide
Confirm the fit
Check diameter, bore and segment dimensions against the table above and against your machine.
Set the parameters
Start at the machine builder's figures for your material, then adjust feed until the cut runs quiet and the surface stays clean.
Keep it free-cutting
If the tool stops cutting and the face goes shiny, it has glazed. Dress it, then tell us — that means the bond should change.
Order by Item ID
Quote this product name and your machine on repeat orders.
Compared With the Rest of the Category
Brazed Cutting Blade holds 1 item in the programme. The difference between them is geometry and construction, not marketing.
- Vacuum Brazed Diamond Core Bit — dry core bits from 5 to 83 mm
- Vacuum Brazed Diamond Router Bit — brazed router bit for corners and cut-outs
- Vacuum Brazed Diamond Wire Saw — brazed wire for low-noise stone cutting
- Vacuum Brazed Diamond Cup Wheel — dry grinding cup wheel for stone and glass
- Vacuum Brazed Diamond Profile Wheel — brazed profile wheel for natural and artificial stone
Vacuum Brazed Diamond Blade — Questions We Get Asked
What sizes does Vacuum Brazed Diamond Blade come in
Standard specification is Dia105-230mm , hole size: 20/22.23mm, mesh size:30/40 40/45 70/80. Other sizes are available upon customer's request.
Which bond will you supply for my material
The bond is set per enquiry rather than per catalogue number. Please inform the material you will cut, we will choose the best bonding for you.
Does Vacuum Brazed Diamond Blade need water
It is built to run dry. Water still extends the life, so use it where the job allows.
What do you need to quote Vacuum Brazed Diamond Blade
The material you process, the machine and its power, the size and bore you need, and the quantity. With those four we quote a specification rather than a guess.
What is the lead time and minimum order for Vacuum Brazed Diamond Blade
Lead time and minimum order depend on whether the size is in the standard programme or needs a production batch. Ask the sales office for this item — we do not publish a single figure that would be wrong half the time. (TBC)
