Diamond Core Bits for Dry Drilling
Dry core bits for concrete and asphalt
Where water is not allowed on site, the bit has to survive its own heat, and the welded joint is the part that decides. Item IDs CA040DCB-CA152DCB are silver or laser welded.
What Diamond Core Bits for Dry Drilling Is For
The plant specification sheet describes this tool as for smooth, fast and dry drilling concrete and asphalt. That is exactly where it belongs, and where it stops.
The specification table lists 20 sizes, Item IDs CA040DCB to CA152DCB.
Inside Diamond Core Bits there are 2 items to choose between. This one is the dry core bits for concrete and asphalt option — the comparison further down this page sets it against the others.
How It Is Built
Manufacturing route
Silver welded or laser welded. This is what holds the diamond in place under working load.
Item ID series
Ordering runs on the CA040DCB to CA152DCB series, so repeat orders return the same specification.
Sizes beyond the standard list
Other sizes and specifications are available upon request.
Export handling
Packed for export and shipped from Shangqiu, Henan. Give us your destination port with the enquiry.
Sizes and Item IDs
Taken from the plant specification sheets. Where a value is not published we say so rather than fill it in.
| Item ID | Diameter | Segment | Overall length | ||||
|---|---|---|---|---|---|---|---|
| mm | inch | length(mm) | width(mm) | height(mm) | no( pcs ) | mm | |
| CA040DCB | 40 | 1-5/8" | 16 | 3.5 | 7 | 4 | 170 |
| CA045DCB | 45 | 1-3/4" | 16 | 3.5 | 7 | 4 | 170 |
| CA051DCB | 51 | 2" | 16 | 3.5 | 7 | 5 | 170 |
| CA056DCB | 56 | 2-1/4" | 22 | 3.5 | 7 | 5 | 170 |
| CA062DCB | 62 | 2-1/2" | 22 | 3.5 | 7 | 6 | 170 |
| CA066DCB | 66 | 2-5/8" | 22 | 3.5 | 7 | 6 | 170 |
| CA072DCB | 72 | 2-3/4" | 22 | 3.5 | 7 | 7 | 170 |
| CA076DCB | 76 | 3" | 22 | 3.5 | 7 | 7 | 170 |
| CA083DCB | 83 | 3-1/4" | 22 | 4 | 7 | 8 | 170 |
| CA089DCB | 89 | 3-1/2" | 22 | 4 | 7 | 8 | 170 |
| CA096DCB | 96 | 3-4/5" | 22 | 4 | 7 | 8 | 170 |
| CA102DCB | 102 | 4" | 22 | 4 | 7 | 10 | 170 |
| CA108DCB | 108 | 4-1/4" | 22 | 4 | 7 | 10 | 170 |
| CA116DCB | 116 | 4-5/8" | 22 | 4 | 7 | 11 | 170 |
| CA120DCB | 122 | 4-3/4" | 24 | 4 | 7 | 12 | 170 |
| CA127DCB | 127 | 5" | 24 | 4 | 7 | 12 | 170 |
| CA132DCB | 132 | 5-1/4" | 24 | 4 | 7 | 12 | 170 |
| CA142DCB | 142 | 5-5/8" | 24 | 4 | 7 | 13 | 170 |
| CA152DCB | 152 | 6" | 24 | 4 | 7 | 14 | 170 |
- Product family
- Construction and Demolition
- Category
- Diamond Core Bits
- Manufacturing route
- Silver welded or laser welded.
- Country of manufacture
- China (Shangqiu, Henan)
- Private label
- Laser marking on the steel core available for OEM orders

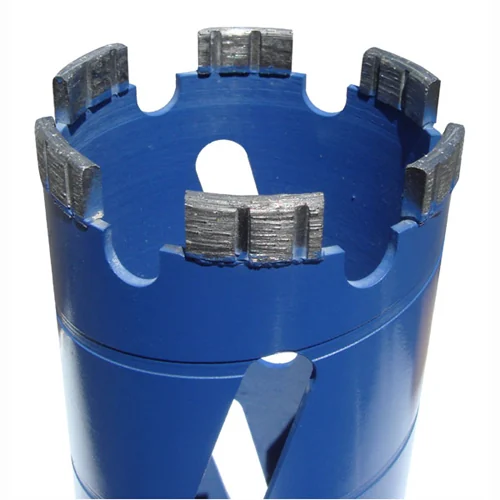

More Views of Diamond Core Bits for Dry Drilling
Photographs supplied by the plant. What you see is the tool as produced, not a render.
Who It Is For
- Drilling contractors
- Utility installation crews
- MEP contractors coring for services
Every one of these buyers gets the same first question from us: what material, what machine, what size.
The Problem It Solves
Wet drilling is not always possible on site, and dry drilling kills the wrong bit.
Diamond Core Bits for Dry Drilling is the answer to that in the diamond core bits part of the range: dry core bits for concrete and asphalt.
For smooth, fast and dry drilling concrete and asphalt.
Why This Version and Not Another
Separate wet and dry series instead of one compromise bit
Applies across the diamond core bits series, including this item.
Silver-welded or laser-welded segments
Part of how this category is built.
Dia 25-350 mm across the two series
Part of how this category is built.
Use Guide
Confirm the fit
Check diameter, bore and segment dimensions against the table above and against your machine.
Set the parameters
Start at the machine builder's figures for your material, then adjust feed until the cut runs quiet and the surface stays clean.
Keep it free-cutting
If the tool stops cutting and the face goes shiny, it has glazed. Dress it, then tell us — that means the bond should change.
Order by Item ID
Quote the Item ID on repeat orders so you get the same specification as last time.
Compared With the Rest of the Category
Diamond Core Bits holds 2 items in the programme. The difference between them is geometry and construction, not marketing.
- Diamond Core Bits for Wet Drilling — wet core bits from 25 to 350 mm
- Arrow Segment Diamond Grinding Cup Wheel — arrow segments for fast concrete removal
- Continuous Rim Diamond Grinding Wheel with Slot — slotted rim balancing finish and cooling
- Continuous Rim Diamond Grinding Wheel — continuous rim for smoothing concrete surfaces
- Double Row Diamond Grinding Cup Wheel — double row wheel for long removal runs
- L Segment Diamond Grinding Cup Wheel — l segments for edge work on concrete floors
Diamond Core Bits for Dry Drilling — Questions We Get Asked
What sizes does Diamond Core Bits for Dry Drilling come in
The standard programme lists 20 sizes on this page, Item IDs CA040DCB to CA152DCB. Other sizes and specifications are available upon request.
Does Diamond Core Bits for Dry Drilling need water
It is built to run dry. Water still extends the life, so use it where the job allows.
What do you need to quote Diamond Core Bits for Dry Drilling
The material you process, the machine and its power, the size and bore you need, and the quantity. With those four we quote a specification rather than a guess.
What is the lead time and minimum order for Diamond Core Bits for Dry Drilling
Lead time and minimum order depend on whether the size is in the standard programme or needs a production batch. Ask the sales office for this item — we do not publish a single figure that would be wrong half the time. (TBC)
