Diamond Blade for Masonry
Wide U-slot blade for brick and block
Masonry dust packs a narrow slot until the blade stops cutting, so this series runs a deliberately wide U-slot. Item IDs CA300MU-CA400MU cover site and yard cutting.
What Diamond Blade for Masonry Is For
The plant specification sheet describes this tool as for fast cutting masonry, hard brick with wide u-slot. That is exactly where it belongs, and where it stops.
The specification table lists 16 sizes, Item IDs CA300ML to CA400MU.
Diamond Blade for Masonry is the whole of the Diamond Blades for Masonry category, so specification work happens inside the item rather than by picking between siblings.
How It Is Built
Bond selected per enquiry
We do not ship a single general-purpose bond. Laser welded.
Item ID series
Ordering runs on the CA300ML to CA400MU series, so repeat orders return the same specification.
Sizes beyond the standard list
Other sizes are available upon customer's request.
Export handling
Packed for export and shipped from Shangqiu, Henan. Give us your destination port with the enquiry.
Sizes and Item IDs
Taken from the plant specification sheets. Where a value is not published we say so rather than fill it in.
| Item ID | Diameter | Bore size | Segment | ||
|---|---|---|---|---|---|
| mm | inch | mm/inch | thickness (mm) | height (mm) | |
| CA300MU | 300 | 12" | 25.4/ 1" | 3 | 10 |
| CA350MU | 350 | 14" | 25.4/ 1" | 3.2 | 10 |
| CA400MU | 400 | 16" | 25.4/ 1" | 3.6 | 10 |
| Item ID | Diameter | Bore size | Segment | ||
|---|---|---|---|---|---|
| mm | inch | mm/inch | thickness (mm) | height (mm) | |
| CA300MM | 300 | 12" | 25.4/ 1" | 3 | 10 |
| CA350MM | 350 | 14" | 25.4/ 1" | 3.2 | 10 |
| CA400MM | 400 | 16" | 25.4/ 1" | 3.6 | 10 |
| Item ID | Diameter | Bore size | Segment | ||
|---|---|---|---|---|---|
| mm | inch | mm/inch | thickness (mm) | height (mm) | |
| CA300MP | 300 | 12" | 25.4/ 1" | 3 | 10 |
| CA350MP | 350 | 14" | 25.4/ 1" | 3.2 | 10 |
| CA400MP | 400 | 16" | 25.4/ 1" | 3.6 | 10 |
| Item ID | Diameter | Bore size | Segment | ||
|---|---|---|---|---|---|
| mm | inch | mm/inch | thickness (mm) | height (mm) | |
| CA300ML | 300 | 12" | 25.4/ 1" | 3 | 10 |
| CA350ML | 350 | 14" | 25.4/ 1" | 3.2 | 10 |
| CA400ML | 400 | 16" | 25.4/ 1" | 3.6 | 10 |
- Product family
- Construction and Demolition
- Category
- Diamond Blades for Masonry
- Bond
- Laser welded.
- Country of manufacture
- China (Shangqiu, Henan)
- Private label
- Laser marking on the steel core available for OEM orders

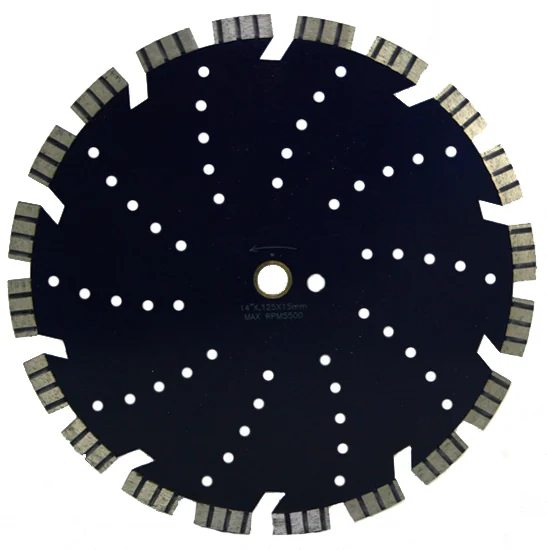

More Views of Diamond Blade for Masonry
Photographs supplied by the plant. What you see is the tool as produced, not a render.
Who It Is For
- Masonry contractors
- Block and paver producers
- Site cutting crews
Every one of these buyers gets the same first question from us: what material, what machine, what size.
The Problem It Solves
Brick and block dust packs a narrow slot and the blade stops cutting.
Diamond Blade for Masonry is the answer to that in the diamond blades for masonry part of the range: wide u-slot blade for brick and block.
For fast cutting masonry, hard brick with wide u-slot.
Why This Version and Not Another
Wide U-slot keeps cutting in dusty material
Applies across the diamond blades for masonry series, including this item.
Laser-welded segment joints
Part of how this category is built.
Dia 300-400 mm programme
Part of how this category is built.
Use Guide
Confirm the fit
Check diameter, bore and segment dimensions against the table above and against your machine.
Set the parameters
Start at the machine builder's figures for your material, then adjust feed until the cut runs quiet and the surface stays clean.
Keep it free-cutting
If the tool stops cutting and the face goes shiny, it has glazed. Dress it, then tell us — that means the bond should change.
Order by Item ID
Quote the Item ID on repeat orders so you get the same specification as last time.
Compared With the Rest of the Category
Diamond Blades for Masonry holds 1 item in the programme. The difference between them is geometry and construction, not marketing.
- Arrow Segment Diamond Grinding Cup Wheel — arrow segments for fast concrete removal
- Continuous Rim Diamond Grinding Wheel with Slot — slotted rim balancing finish and cooling
- Continuous Rim Diamond Grinding Wheel — continuous rim for smoothing concrete surfaces
- Double Row Diamond Grinding Cup Wheel — double row wheel for long removal runs
- L Segment Diamond Grinding Cup Wheel — l segments for edge work on concrete floors
- Single Row Diamond Grinding Cup Wheel — single row wheel for controlled concrete grinding
Diamond Blade for Masonry — Questions We Get Asked
What sizes does Diamond Blade for Masonry come in
The standard programme lists 16 sizes on this page, Item IDs CA300ML to CA400MU. Other sizes are available upon customer's request.
Which bond will you supply for my material
The bond is set per enquiry rather than per catalogue number. Laser welded.
What do you need to quote Diamond Blade for Masonry
The material you process, the machine and its power, the size and bore you need, and the quantity. With those four we quote a specification rather than a guess.
What is the lead time and minimum order for Diamond Blade for Masonry
Lead time and minimum order depend on whether the size is in the standard programme or needs a production batch. Ask the sales office for this item — we do not publish a single figure that would be wrong half the time. (TBC)
