Two Post Lift · Model ATL40B
ATL40B Two Side Manual Lock Base Floor Two Post Lift
4T base floor two post lift with bilateral manual lock
Product Overview
ATL40B is a 4000 kg base floor two post lift with manual locks on both columns. The base plate carries the load across the floor rather than through an overhead beam, the columns are laser cut from 5 mm plate on a large base, and the safety lock engages from within 500 mm of the ground.
Key Benefits
What This Machine Changes in the Bay
- Base plate design removes the overhead beam, so there is no height restriction above the vehicle
- Bilateral manual lock lets the technician release from either side
- Laser cut 5 mm columns on a large base spread the load into the slab
- Safety lock engages within 500 mm of the ground, so the vehicle is protected early in the lift
- Optional 24V safety electronic control box
Application Scenarios
- Workshops with low ceilings or roof obstructions
- Vans and high-roof vehicles that would foul an overhead beam
- General repair work needing full underbody access
- Bays where the floor plate can be accommodated
Who It Is For
- Independent repair workshops
- Van and light commercial specialists
- Workshops in buildings with limited headroom
- Distributors supplying general workshop lifts
Problems It Solves
What It Stops Costing You
- An overhead beam limits the height of vehicles a bay can take
- Thin columns flex and shorten lift life under repeated loading
- Locks that only engage high up leave a gap early in the lift
- Single-side release forces the technician to walk around the vehicle
Technical Features
- Capacity 4000 kg / 9000 lbs
- Base floor two post lift with floor plate
- Bilateral manual lock
- Laser cut 5 mm column with large base
- Safety lock works within 500 mm from the ground
- Optional 24V safety electronic control box
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

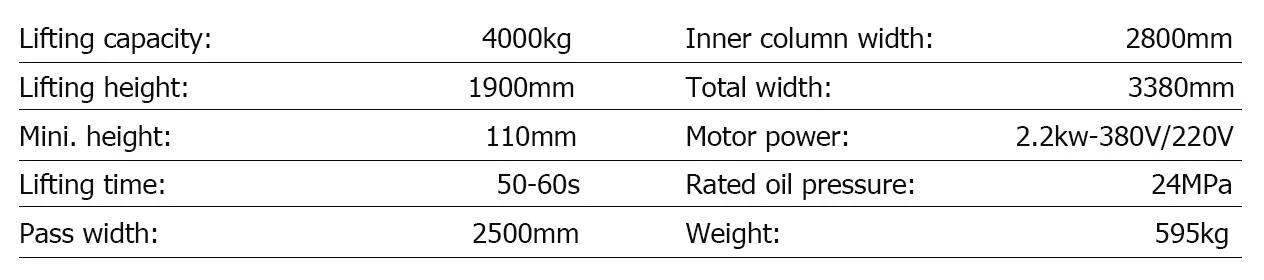

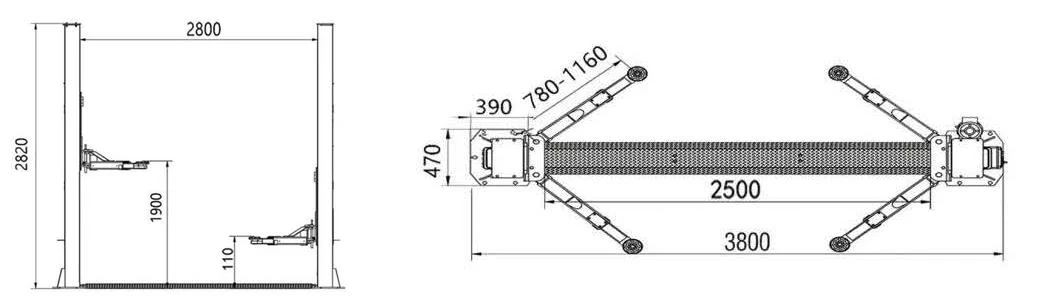

Specifications
Compared With Other Models
- Against the ATL40BS: manual locks on both sides rather than a single side
- Against the ATL40BA: manual release rather than an electric lock
- Against the clear floor ATL40C: a floor plate between the columns instead of a clear drive-through
Use Guide
- Check slab thickness and anchor requirements before installation
- Position the arms under the manufacturer's lifting points and raise slowly to contact
- Raise fully and lower onto the safety locks before working underneath
- Release both side locks before lowering the vehicle
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
ATL40B Questions Buyers Ask
What is the capacity?
4000 kg, equivalent to 9000 lbs.
Why choose a base floor model?
The load is carried through a floor plate rather than an overhead beam, so there is no height restriction above the vehicle.
How early does the safety lock engage?
The safety lock works from within 500 mm of the ground.
How thick are the columns?
Laser cut 5 mm column plate, mounted on a large base.
Is the 24V control box included?
It is an option on this model. Tell us your preference and we will include it on the quotation.
What floor is needed?
A sound concrete slab of adequate thickness. We supply the anchor and slab specification before delivery.
