Two Post Lift · Model ATL40C
ATL40C Two Side Manual Clear Floor Two Post Lift
4T clear floor lift with bilateral manual lock
Product Overview
ATL40C is a 4000 kg clear floor two post lift with manual locks on both columns. With no floor plate between the columns the bay stays completely flat, which makes it easy to roll jacks, drain trays and trolleys straight under the vehicle.
Key Benefits
What This Machine Changes in the Bay
- Clear floor between the columns leaves nothing to trip over or roll across
- Bilateral manual lock allows release from either side
- Laser cut 5 mm columns on a large base spread the load into the slab
- Safety lock engages within 500 mm of the ground
- Optional 24V safety electronic control box
Application Scenarios
- Bays where trolleys, jacks and drain trays move under the vehicle constantly
- Workshops that sweep or wash the bay floor daily
- Transmission and exhaust work needing clear under-vehicle access
- General repair with adequate ceiling height for the overhead beam
Who It Is For
- General repair workshops
- Transmission and driveline specialists
- Service centres where floor cleanliness is visible to customers
- Distributors supplying mainstream clear floor lifts
Problems It Solves
What It Stops Costing You
- A floor plate obstructs trolleys, jacks and drain trays
- Plates trap dirt and oil and make the bay harder to clean
- Thin columns flex under repeated loading
- Late-engaging safety locks leave a gap early in the lift
Technical Features
- Capacity 4000 kg / 9000 lbs
- Clear floor two post lift
- Bilateral manual lock
- Laser cut 5 mm column with large base
- Safety lock works within 500 mm from the ground
- Optional 24V safety electronic control box
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

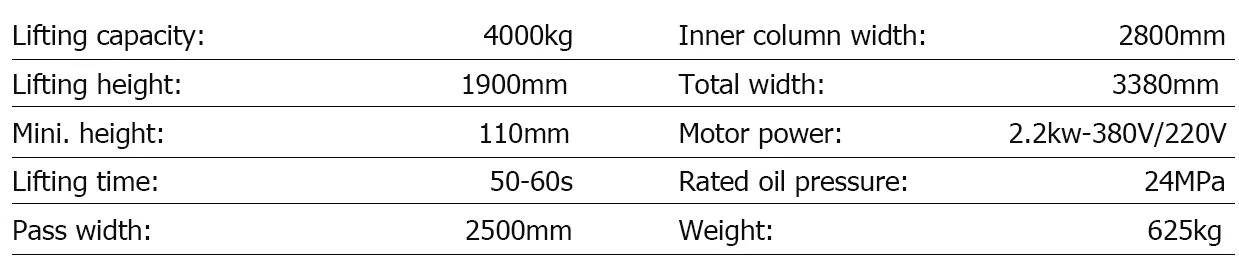

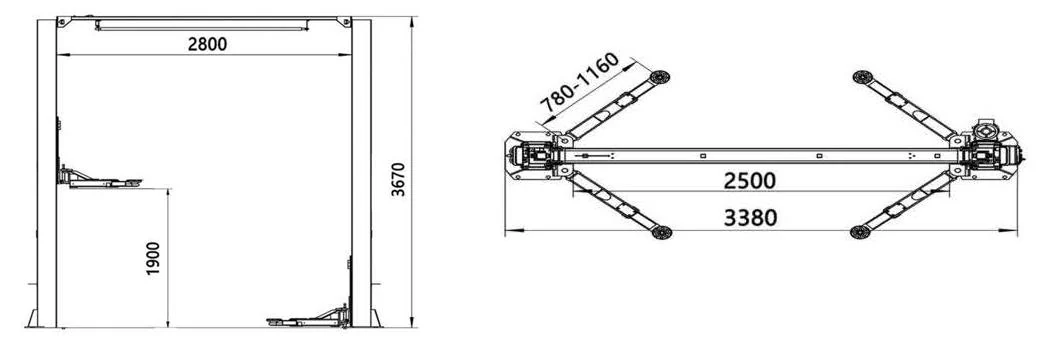

Specifications
Compared With Other Models
- Against the ATL40B: clear floor instead of a floor plate, at the cost of needing headroom for the overhead beam
- Against the ATL40CS: manual locks on both columns rather than a single side
- Against the ATL40CA: manual release rather than an electric lock
Use Guide
- Confirm ceiling height for the overhead beam and slab thickness before installation
- Set the arms under the vehicle's lifting points and raise to contact
- Raise fully and lower onto the safety locks before working underneath
- Release both side locks before lowering
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ATL40C Questions Buyers Ask
What is a clear floor lift?
There is no floor plate between the columns, so the bay floor stays flat and trolleys roll straight under the vehicle.
What ceiling height do I need?
Clear floor lifts carry the connection overhead. Send us your ceiling height and we will confirm the fit before you order.
What is the capacity?
4000 kg, equivalent to 9000 lbs.
How early does the lock engage?
Within 500 mm of the ground.
Is the control box included?
The 24V safety electronic control box is optional on this model.
What anchors are required?
We supply the anchor pattern and slab specification with the installation drawing.
