ATL40BA 4T Base Floor Two Post Lift With Electric Lock

Name: ATL40BA Base Floor Two Post Lift
Brand: Autocraft
SKU: ATL40BA

Product Overview

ATL40BA is a 4000 kg base floor two post lift with an electric lock and a 24V safety electronic control box as standard. Release is handled from the control rather than by hand at the column, which keeps the technician in one place and makes the procedure the same every time.

Key Benefits

What This Machine Changes in the Bay

Electric lock release is operated from the control box, not by hand at the column
24V safety electronic control box supplied as standard
Base plate design leaves vehicle height unrestricted
Laser cut 5 mm columns on a large base
Safety lock engages within 500 mm of the ground

Application Scenarios

High-volume workshops where lift cycles repeat all day
Bays with several technicians sharing one lift
Workshops standardising the raising and lowering procedure
Van and high-roof vehicle work that rules out an overhead beam

Who It Is For

Busy independent workshops and chains
Service centres with rotating technicians
Fleet workshops running consistent procedures
Distributors supplying upper-range two post lifts

Problems It Solves

What It Stops Costing You

Manual lock release differs between technicians and invites mistakes
Walking to the column on every lower wastes time in a busy bay
Overhead beams restrict the vehicles a bay can take
Late-engaging safety locks leave a gap early in the lift

Technical Features

Capacity 4000 kg / 9000 lbs
Base floor two post lift with floor plate
Electric lock
24V safety electronic control box
Laser cut 5 mm column with large base
Safety lock works within 500 mm from the ground
Shot blasting finish with outdoor-grade automatic electrostatic powder coating
German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

Specifications

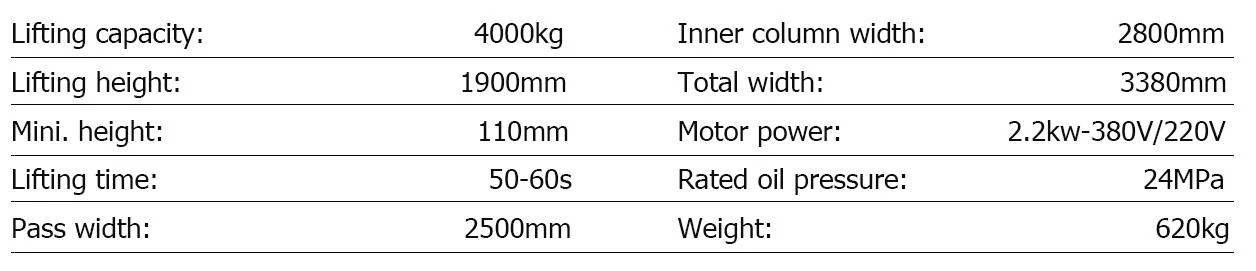

ATL40BA specification table from the manufacturer — Specification table for the ATL40BA as published by the manufacturer.

Compared With Other Models

Against the ATL40B and ATL40BS: electric lock release instead of a manual lever
Against the ATL40CA: base floor construction rather than clear floor
Against manual lock lifts generally: a repeatable procedure that does not depend on the operator

Use Guide

Confirm the slab and anchor specification before installation
Set the arms under the vehicle's lifting points and raise to contact
Raise fully, then lower onto the safety locks before working underneath
Release the electric lock from the control box before lowering

Quality and Support

What Comes With the Machine

Quality Assurance

Every product is supplied with a long warranty assurance.

Expert Guidance

Pre-sales and after-sales teams give professional guidance and aftersales support.

Reliability

Consistent and reliable performance across every product line.

Innovation

An experienced R&D team develops the products the market asks for.

Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
