Two Post Lift · Model ATL40BS
ATL40BS Base Floor Two Post Lift
4T base floor lift with single side release
Product Overview
ATL40BS is a 4000 kg base floor two post lift with a single side manual lock, so both columns are released from one position. It shares the laser cut 5 mm column, large base and 500 mm safety lock engagement of the ATL40B, with a simpler release for technicians working alone.
Key Benefits
What This Machine Changes in the Bay
- Single side manual lock releases both columns from one position
- Base plate design avoids an overhead beam, keeping vehicle height unrestricted
- Laser cut 5 mm columns on a large base spread the load into the slab
- Safety lock engages within 500 mm of the ground
- Optional 24V safety electronic control box
Application Scenarios
- Single-technician bays where walking around the vehicle costs time
- Workshops with low ceilings or roof obstructions
- High-roof vans that would foul an overhead beam
- General repair with full underbody access
Who It Is For
- Independent workshops with one technician per bay
- Van and light commercial specialists
- Workshops with limited headroom
- Distributors supplying mainstream two post lifts
Problems It Solves
What It Stops Costing You
- Bilateral release means walking around the vehicle on every lower
- Overhead beams restrict the vehicles a bay can accept
- Thin columns flex under repeated loading
- Late-engaging locks leave a gap in the early part of the lift
Technical Features
- Capacity 4000 kg / 9000 lbs
- Base floor two post lift with floor plate
- Single side manual lock
- Laser cut 5 mm column with large base
- Safety lock works within 500 mm from the ground
- Optional 24V safety electronic control box
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

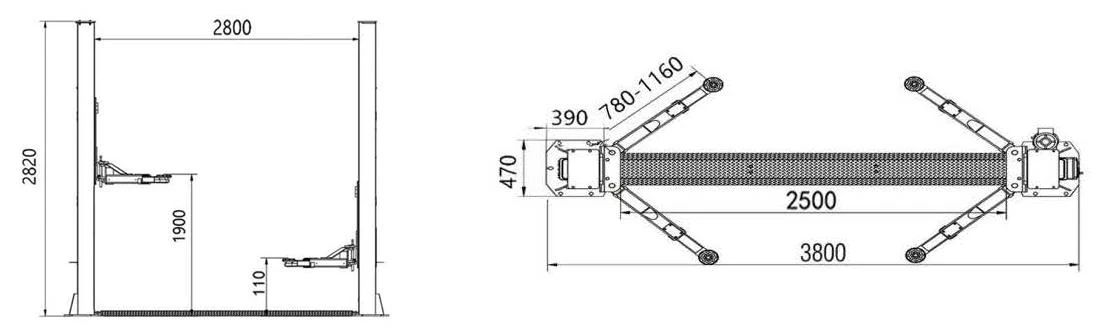

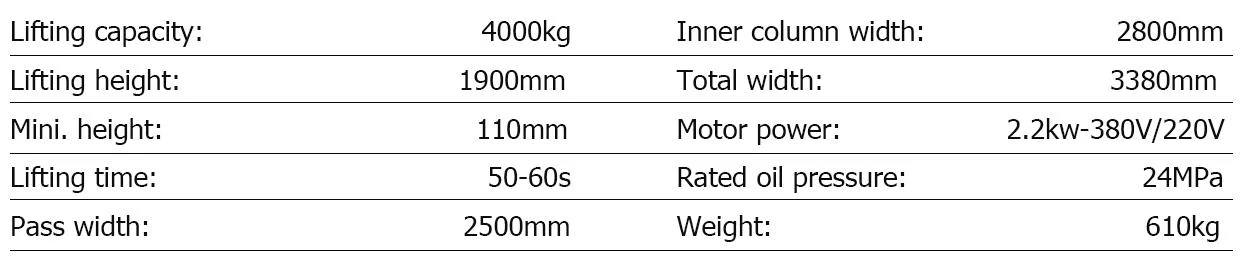

Specifications
Compared With Other Models
- Against the ATL40B: single side release instead of locks on both columns
- Against the ATL40BA: manual release rather than an electric lock
- Against a clear floor model: a floor plate between the columns rather than a clear drive-through
Use Guide
- Confirm slab thickness and anchor requirements before installation
- Set the arms under the vehicle's designated lifting points
- Raise fully and lower onto the safety locks before working underneath
- Release from the single side control before lowering
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ATL40BS Questions Buyers Ask
What does single side lock mean?
Both columns are released from one side of the lift, so the technician does not walk around the vehicle.
What is the capacity?
4000 kg, equivalent to 9000 lbs.
How early does the lock engage?
The safety lock works from within 500 mm of the ground.
Can I add the 24V control box?
Yes, it is available as an option on this model.
What is the column construction?
Laser cut 5 mm plate columns on a large base.
Do you supply installation drawings?
Yes. The anchor pattern and slab specification are sent before delivery.
