Two Post Lift · Model ATL40CS
ATL40CS Single Manual Lock Clear Floor Two Post Lift
4T clear floor lift with single side release
Product Overview
ATL40CS is a 4000 kg clear floor two post lift with a single manual side release, so both columns are unlocked from one position. The floor between the columns stays clear for trolleys and drain trays, and the columns are laser cut from 5 mm plate on a large base.
Key Benefits
What This Machine Changes in the Bay
- Single manual side release keeps the technician in one working position
- Clear floor between the columns for trolleys, jacks and drain trays
- Laser cut 5 mm columns on a large base
- Optional 24V safety electronic control box
- Outdoor-grade powder coating over a shot blasted finish
Application Scenarios
- Single-technician bays where every walk around costs time
- Workshops rolling equipment under the vehicle throughout the job
- General repair with adequate ceiling height
- Service centres that keep the bay floor visibly clean
Who It Is For
- Independent workshops with one technician per bay
- General repair and servicing centres
- Workshops upgrading from an older manual lift
- Distributors supplying mainstream clear floor lifts
Problems It Solves
What It Stops Costing You
- Bilateral release means walking around the vehicle on every lower
- Floor plates obstruct trolleys and trap dirt
- Thin columns flex under repeated loading
- Inconsistent release habits between technicians
Technical Features
- Capacity 4000 kg / 9000 lbs
- Clear floor two post lift
- Single manual side release
- Laser cut 5 mm column with large base
- Optional 24V safety electronic control box
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

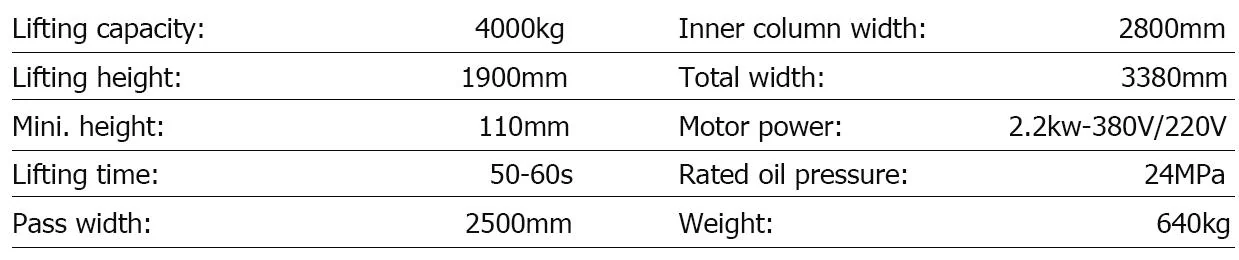

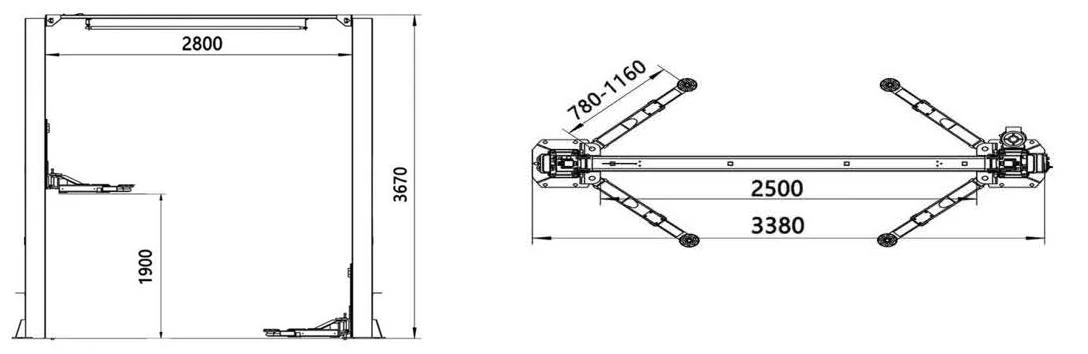

Specifications
Compared With Other Models
- Against the ATL40C: single side release rather than locks on both columns
- Against the ATL40CA: manual release rather than an electric lock
- Against the base floor ATL40BS: a clear bay floor, provided the ceiling takes the overhead beam
Use Guide
- Check ceiling height and slab thickness against the installation drawing
- Set the arms under the vehicle's lifting points
- Raise fully and lower onto the safety locks before working underneath
- Release from the single side control before lowering
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ATL40CS Questions Buyers Ask
What is the capacity?
4000 kg, equivalent to 9000 lbs.
How is the lift released?
Through a single manual side release, so both columns are unlocked from one position.
Why choose clear floor over base floor?
Nothing crosses the bay floor, so trolleys, jacks and drain trays roll straight under the vehicle.
Is the 24V control box included?
It is optional on this model and can be added on the quotation.
What columns are used?
Laser cut 5 mm plate columns on a large base.
What lead time applies?
Lead time depends on quantity and options. Send us your requirement and we will confirm in writing.
