Scissor Lift · Model ASL30M
ASL30M Middle Rise Scissor Lift
Movable 3T mid-rise lift with no installation
Product Overview
ASL30M is a 3000 kg middle rise scissor lift that needs no fixed installation and can be moved whenever the workshop layout changes. A coupled axle drive keeps both sides synchronised under load, and release is pneumatic with an electric lock available as an option.
Key Benefits
What This Machine Changes in the Bay
- Free installation and movable at any time, so the bay layout is not fixed
- Coupled axle drive gives solid synchronous performance under load
- Pneumatic release with an optional electric lock
- Mid-rise height suits wheel, brake and body work without a full-height lift
- Outdoor-grade powder coating over a shot blasted finish
Application Scenarios
- Wheel, brake and tyre work that does not need full standing height
- Body shops needing the lift moved between work areas
- Temporary or rented premises where anchoring is not permitted
- Detailing and preparation bays
Who It Is For
- Body shops and preparation centres
- Workshops in leased premises
- Mobile and pop-up service operations
- Distributors supplying flexible workshop equipment
Problems It Solves
What It Stops Costing You
- Fixed lifts lock a workshop into one floor layout
- Anchoring is not permitted in many rented buildings
- Mid-height jobs do not justify occupying a full-height bay
- Unsynchronised mid-rise lifts twist under an off-centre load
Technical Features
- Capacity 3000 kg / 6000 lbs
- Mid-position scissor lift design
- Free installation and movable at any time
- Pneumatic release with optional electric lock
- Coupled axle drive for synchronous lifting
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

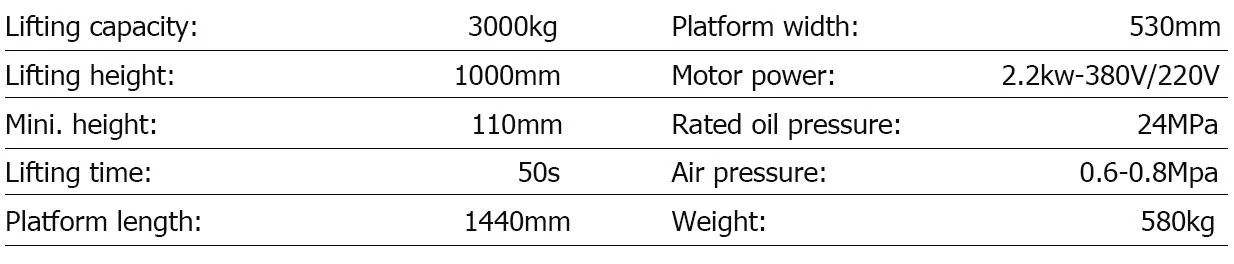

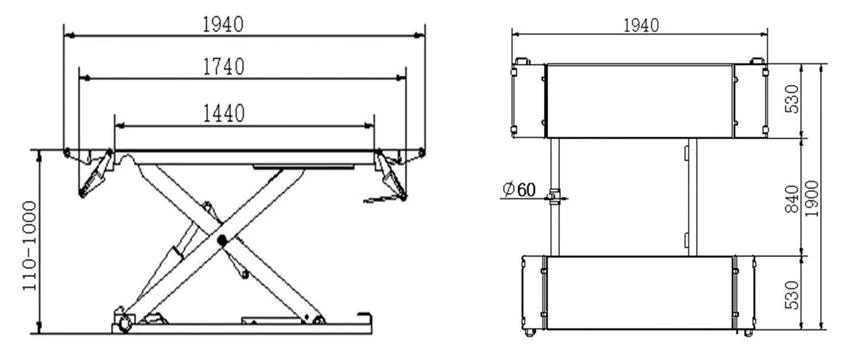

Specifications
Compared With Other Models
- Against the ASL27M: 3000 kg capacity rather than 2700 kg
- Against a full-rise scissor lift: no installation and free movement, at a lower working height
- Against a two post lift: nothing to anchor and nothing overhead
Use Guide
- Position the lift on sound level floor before driving on
- Drive on squarely and chock the vehicle
- Raise to working height and lower onto the release lock
- Move the lift to the next work area when the job is finished
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
ASL30M Questions Buyers Ask
Does it need to be bolted down?
No. It is designed for free installation and can be moved at any time, which is why it suits rented premises.
What is the capacity?
3000 kg, equivalent to 6000 lbs.
Is an electric lock available?
Yes, an electric lock is optional; pneumatic release is standard.
How is synchronisation maintained?
A coupled axle drive keeps both sides together under load.
What jobs is a mid-rise lift best for?
Wheel, brake, tyre and body work where full standing height is not required.
Can you quote several units for a chain?
Yes. Send the number of sites and we will quote a container price and a delivery schedule.
