Scissor Lift · Model ASL40/40S

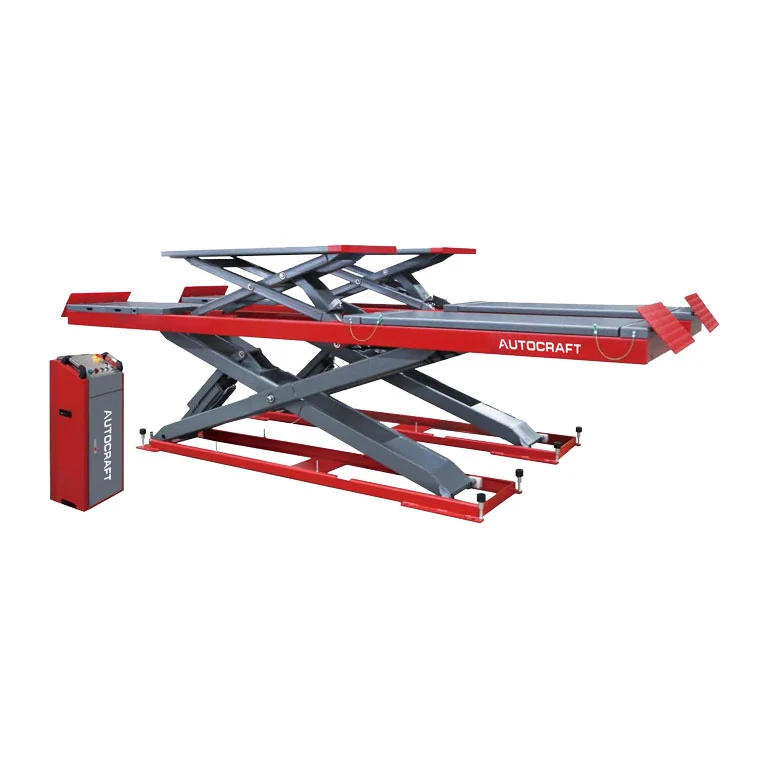

ASL40/40S 4T In-ground Scissor Lift
4T in-ground scissor lift with secondary lift
Product Overview
ASL40/40S is a 4000 kg in-ground scissor lift with a second lifting system, so the same bay covers general repair and wheel alignment. Release is electronic-pneumatic rather than mechanical, the cylinders use upper return oil to keep them rust-free, and the hydraulic valve parts are German Bosch Rexroth with Italian seals and ball valves.
Key Benefits
What This Machine Changes in the Bay
- 4000 kg / 9000 lbs capacity covers passenger cars and light commercials
- Secondary lifting system makes the same bay usable for wheel alignment
- Electronic-pneumatic release is safer and more reliable than a mechanical trip
- Upper return oil on the cylinder keeps the bore rust-free over a long installed life
- 24V electronic control keeps operator voltage low at the control box
Application Scenarios
- Combined repair and alignment bays in a single floor pocket
- Workshops that need a flush floor when the lift is down
- Alignment work requiring a jacking beam for wheels-free access
- Sites where a two post lift would block floor movement
Who It Is For
- Workshops building a dedicated alignment bay
- General repair shops that also fit tyres and do geometry work
- Fast-fit chains standardising bay layout across sites
- Distributors specifying complete alignment bay packages
Problems It Solves
What It Stops Costing You
- A separate alignment bay takes floor space the workshop does not have
- Surface-mounted lifts obstruct movement between bays
- Mechanical release locks jam and become a safety issue over time
- Cylinder corrosion causes leaks and shortens lift life
Technical Features
- Capacity 4000 kg / 9000 lbs
- In-ground installation with secondary lifting system
- Electronic-pneumatic release
- Upper return oil on the cylinder for rust protection
- Electronic control box with front and rear door
- 24V electronic control
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- Robotic fabrication for dimensional accuracy and smooth surface
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves
Specifications
A dimension and specification table for this model is available on request. Send us the model number and we will email the current data sheet.
ASL40/40S 4T In-ground Scissor Lift in Detail
Compared With Other Models
- Against the ASL50: 4000 kg rather than 5000 kg capacity for lighter vehicle mixes
- Against the ASL40T: standard platform height rather than the ultra-thin profile
- Against a two post lift: full wheels-free alignment capability and a clear floor when lowered
Use Guide
- Confirm the floor pocket dimensions against the drawing before civil work begins
- Drive on with the wheels centred on the runways and set the chocks
- Raise the main lift for repair work, and use the secondary lift for wheels-free alignment
- Lower onto the locks before working under the vehicle
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
EV and New Energy Service Bay
Getting a battery pack out from under the car safely, and servicing the air conditioning system that goes with it.
ASL40/40S Questions Buyers Ask
What is the rated capacity?
4000 kg, equivalent to 9000 lbs.
Is it suitable for wheel alignment?
Yes. The secondary lifting system is what makes wheels-free alignment work possible on the same lift.
What hydraulic components are used?
German Bosch Rexroth hydraulic valve parts with Italian imported oil sealing rings and ball valves.
How is the lift protected against corrosion?
A shot blasted finish with outdoor-grade automatic electrostatic powder coating, and upper return oil in the cylinder to keep the bore rust-free.
What civil work is needed?
In-ground installation requires a prepared floor pocket. We supply the foundation drawing before you start the civil work.
What control voltage does the operator touch?
The electronic control is 24V, with the control box fitted with front and rear doors for service access.
