Scissor Lift · Model ASL80
ASL80 8T In-ground Scissor Lift
8T scissor lift with electro-pneumatic release
Product Overview
ASL80 is an 8000 kg scissor lift using an electric pneumatic release lock, built for the heaviest vehicles a general workshop handles. Cylinders use upper return oil for rust protection, the control box is 24V with front and rear service doors, and the hydraulic valve parts are German Bosch Rexroth with Italian seals.
Key Benefits
What This Machine Changes in the Bay
- 8000 kg / 17,600 lbs capacity takes light trucks and heavy commercial vans
- Electronic-pneumatic release lock is safer and more reliable than mechanical release
- Upper return oil keeps the cylinder bore rust-free
- 24V electronic control with front and rear door access for service
- Outdoor-grade powder coating over a shot blasted finish
Application Scenarios
- Light truck and heavy van servicing
- Fleet workshops with a heavy vehicle mix
- Bodyshops handling large commercial vehicles
- Sites needing capacity headroom above a 5T lift
Who It Is For
- Commercial vehicle and fleet workshops
- Workshops servicing heavy vans and light trucks
- Bodyshops and municipal depots
- Distributors supplying heavy-duty lifting equipment
Problems It Solves
What It Stops Costing You
- 5T lifts cannot take the heaviest vehicles in a mixed fleet
- Mechanical release locks become unreliable under repeated heavy loads
- Cylinder corrosion causes leaks that take the bay out of service
- Poorly finished frames corrode in wash bays and wet workshops
Technical Features
- Capacity 8000 kg / 17,600 lbs
- Electronic-pneumatic release lock
- Upper return oil on the cylinder for rust protection
- Electronic control box with front and rear door
- 24V electronic control
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- Robotic fabrication for dimensional accuracy
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

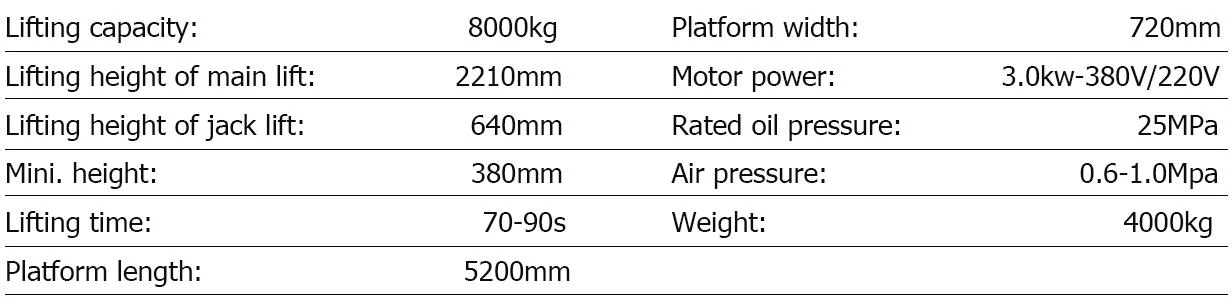

Specifications
ASL80 8T In-ground Scissor Lift in Detail
Compared With Other Models
- Against the ASL50: 8000 kg rather than 5000 kg capacity
- Against a four post lift of similar capacity: a flush floor when lowered
- Against a two post lift: the load is carried on full-length platforms rather than four pads
Use Guide
- Confirm the foundation and floor loading against the drawing before installation
- Drive on with the load centred on the platforms and chock the vehicle
- Raise and lower onto the locks before working underneath
- Check the release lock function as part of the routine safety inspection
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ASL80 Questions Buyers Ask
What is the rated capacity?
8000 kg, equivalent to 17,600 lbs.
What kind of release does it use?
An electric pneumatic release lock, which is safer and more reliable than a purely mechanical release.
What hydraulic components are specified?
German Bosch Rexroth hydraulic valve parts with Italian imported oil sealing rings and ball valves.
Is it suitable for light trucks?
The 8000 kg rating covers heavy vans and light trucks. Send us your heaviest vehicle weight and we will confirm.
What floor preparation is required?
We supply the foundation drawing with load requirements before installation so the floor can be checked in advance.
How is the lift shipped?
Crated for container loading. Crate dimensions and gross weight are confirmed with the quotation.
