Scissor Lift · Model ASL40PT
ASL40PT 4T Ultra-thin Pulley Scissor Lift
Ultra-thin 4T pulley lift on four cylinders
Product Overview
ASL40PT is a 4000 kg ultra-thin pulley scissor lift for regular repair and wheel alignment. The arms are cut from high strength Q355B manganese plate and the lift runs on a four cylinder structure, which keeps the platform steady through the stroke while holding an ultra-thin lowered profile.
Key Benefits
What This Machine Changes in the Bay
- Ultra-thin lowered profile keeps the drive-on ramp short and shallow
- Four cylinder structure gives stable, even movement across the platform
- High strength Q355B manganese plate arms carry 4000 kg without a bulky section
- Pneumatic safety release replaces a mechanical trip
- 24V safe electronic control at the operator's hand
Application Scenarios
- Surface installation where cutting a floor pocket is not possible
- Repair and wheel alignment on the same lift
- Low-clearance vehicles that ground on a taller lowered platform
- Rented premises where floor work is not permitted
Who It Is For
- Workshops in leased buildings that cannot excavate
- Alignment bays handling lowered and performance vehicles
- General repair shops needing surface-mounted flexibility
- Distributors supplying workshops with fixed floors
Problems It Solves
What It Stops Costing You
- In-ground installation is impossible in rented or upper-floor premises
- Thick lowered platforms ground out low vehicles on the approach
- Two cylinder lifts can move unevenly under an off-centre load
- Mechanical safety locks wear and become unreliable
Technical Features
- Capacity 4000 kg / 9000 lbs
- Ultra-thin pulley scissor lift design
- High strength Q355B manganese plate arm
- Four cylinder structure for stable movement
- Pneumatic safety release
- Electronic control box with front and rear door
- 24V safe electronic control
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

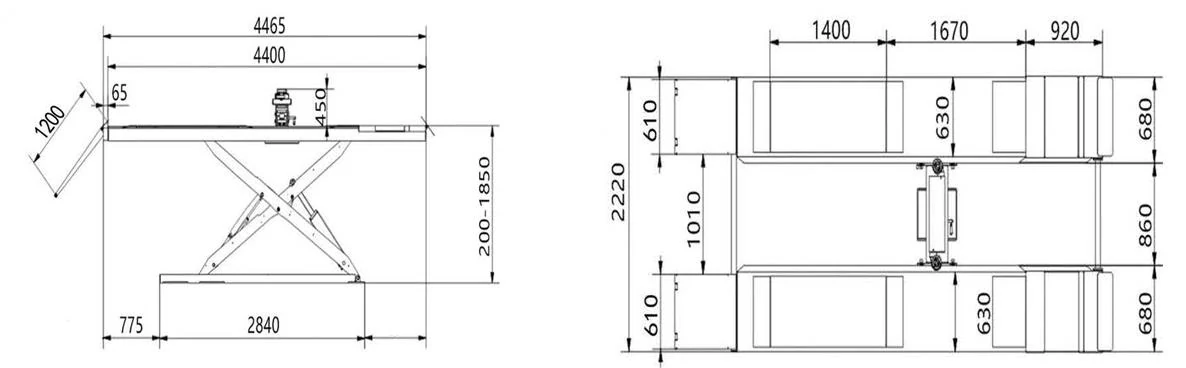

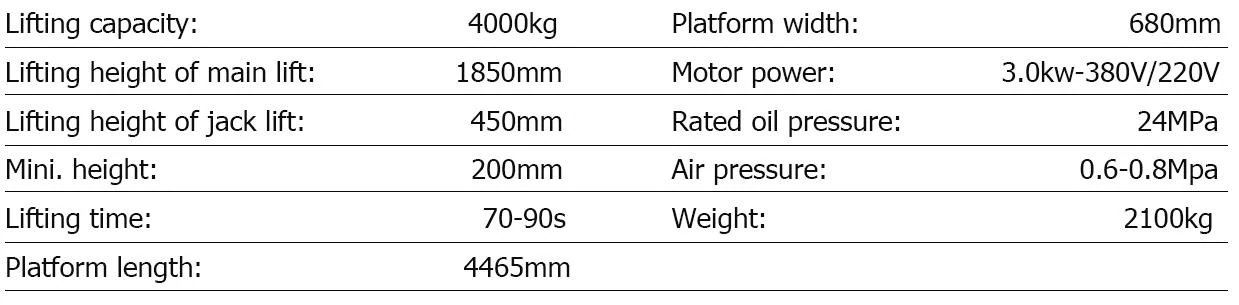

Specifications
Compared With Other Models
- Against the ASL40T: surface-mounted ultra-thin rather than in-ground installation
- Against the ASL40/40S: no floor pocket required, so installation is faster and reversible
- Against a two post lift: full platform support and wheels-free alignment capability
Use Guide
- Check the floor slab thickness and anchor requirements before installation
- Drive on squarely over the ultra-thin ramps
- Raise, then lower onto the safety locks before working underneath
- Test the pneumatic release as part of the routine inspection
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
ASL40PT Questions Buyers Ask
What is the rated capacity?
4000 kg, equivalent to 9000 lbs.
What material are the arms made from?
High strength Q355B manganese plate.
Why four cylinders instead of two?
Four cylinders keep the platform moving evenly, which matters most on an ultra-thin lift carrying an off-centre load.
Does it need a floor pocket?
No. It is a surface-mounted ultra-thin lift, which is why workshops in leased premises choose it.
Can it be used for wheel alignment?
Yes, it is intended for regular repair and wheel alignment work.
What floor is required?
A sound concrete slab of adequate thickness. We supply the anchor and slab requirements before delivery.
