Four Post Lift · Model AFL40/40S
AFL40/40S Four Post Lift for Wheel Alignment
4T four post lift with adjustable runway spacing
Product Overview
AFL40/40S is a 4000 kg four post lift built for wheel alignment work. Runway spacing is adjustable so a wide range of vehicles can sit correctly on the platforms, and a wire control safety lock with wire rope anti-fracture protection backs up the cable drive. Decline speed is adjustable at the power unit.
Key Benefits
What This Machine Changes in the Bay
- Adjustable runway spacing fits a wide range of vehicle track widths
- Wire control safety lock includes wire rope anti-fracture protection
- Throttling device on the power unit makes the decline speed adjustable
- Hydraulic cylinder with wire rope drive keeps lifting stable and smooth
- Manual, pneumatic or electric release available to suit the workshop
Application Scenarios
- Dedicated wheel alignment bays
- Workshops serving a broad mix of track widths
- Long-duration jobs where the vehicle stays supported on its wheels
- Storage or parking use between service jobs
Who It Is For
- Alignment and tyre specialists
- General workshops with a varied vehicle mix
- Service chains standardising an alignment bay
- Distributors specifying four post alignment packages
Problems It Solves
What It Stops Costing You
- Fixed runway spacing does not suit every vehicle track width
- Cable-driven lifts need a credible answer to rope failure
- Uncontrolled descent speed is a safety and comfort issue
- Workshops need different release types depending on local practice
Technical Features
- Capacity 4000 kg / 9000 lbs
- Four post lift for wheel alignment
- Hydraulic power unit with throttling device and adjustable decline speed
- Hydraulic oil cylinder and wire rope drive
- Wire control safety lock with wire rope anti-fracture function
- Adjustable runway spacing
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves
- Manual, pneumatic and electric release options

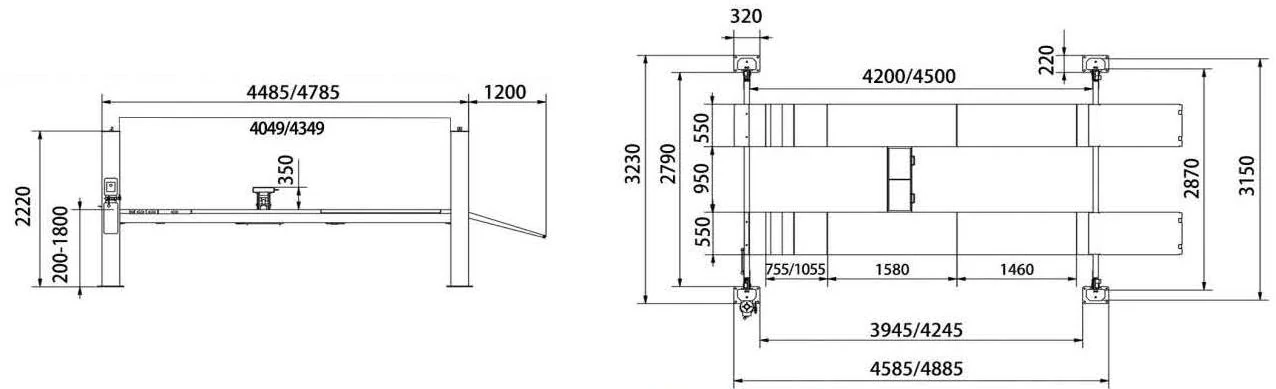

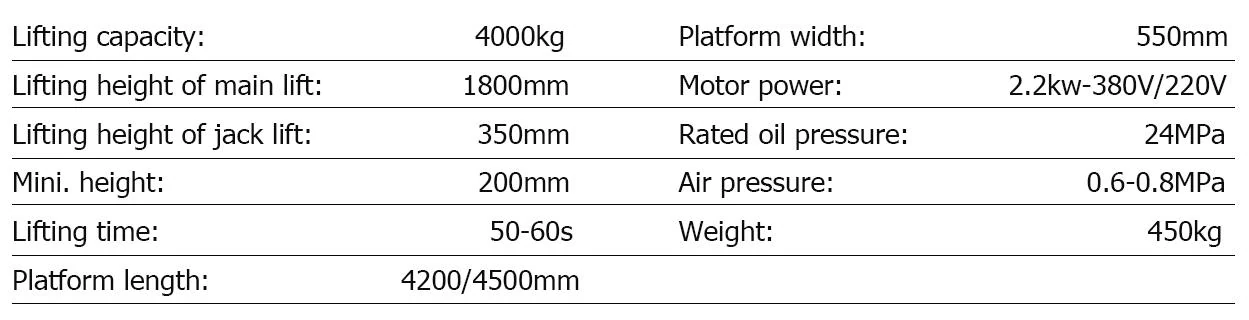

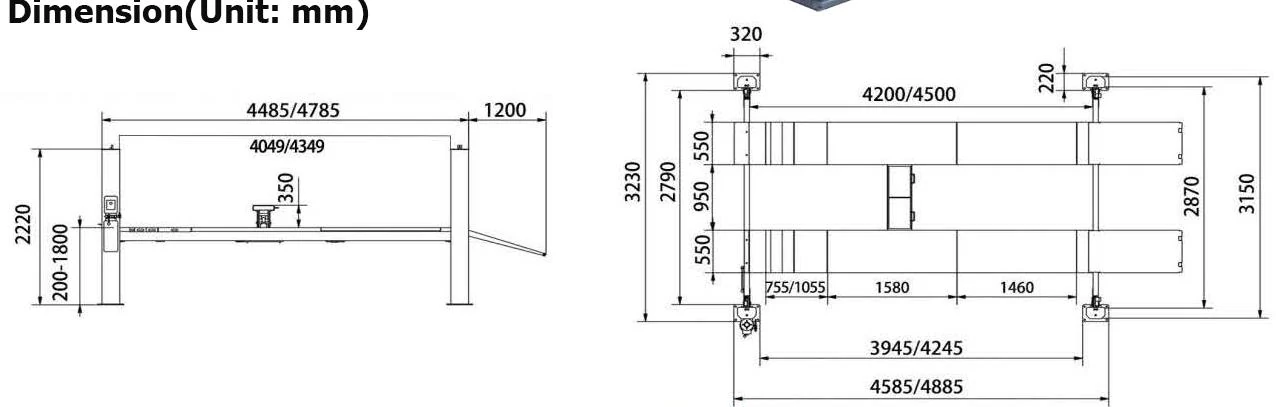

Specifications
Compared With Other Models
- Against the AFL50: 4000 kg rather than 5000 kg capacity
- Against a scissor lift: the vehicle stays on its wheels on full-length runways
- Against a two post lift: better suited to alignment and to long-duration support
Use Guide
- Set the runway spacing to suit the vehicles you handle most
- Drive on squarely and apply the parking brake and chocks
- Raise and settle onto the safety locks before starting work
- Set the decline speed at the power unit throttling device to suit the bay
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
AFL40/40S Questions Buyers Ask
What is the capacity?
4000 kg, equivalent to 9000 lbs.
Can the runway spacing be changed?
Yes, runway spacing is adjustable to fit various kinds of vehicle.
What protects against a wire rope failure?
A wire control safety lock with wire rope anti-fracture function.
Can the lowering speed be adjusted?
Yes. The hydraulic power unit has a throttling device that makes the decline speed adjustable.
Which release types are available?
Manual, pneumatic and electric release are all offered as options.
Do you supply alignment accessories?
Tell us the aligner you plan to use and we will quote the turnplates and rear slip plates to match.
