Four Post Lift · Model AFL80
AFL80 8T 4 Post Lift
8T four post lift for heavy vehicle alignment
Product Overview
AFL80 is an 8000 kg four post lift with a second lifting system, built for repair and wheel alignment on the heaviest vehicles a general workshop takes. It keeps the adjustable runway spacing, the wire control safety lock with anti-fracture protection and the adjustable decline speed of the smaller AFL models.
Key Benefits
What This Machine Changes in the Bay
- 8000 kg / 17,600 lbs capacity takes heavy vans and light trucks
- Second lifting system gives wheels-free access for alignment
- Adjustable runway spacing handles a wide range of track widths
- Wire control safety lock with wire rope anti-fracture protection
- Adjustable decline speed at the hydraulic power unit
Application Scenarios
- Alignment and repair on heavy vans and light trucks
- Fleet and municipal workshops
- Commercial vehicle service centres
- Bays that also store vehicles between jobs
Who It Is For
- Commercial vehicle and fleet workshops
- Heavy van and light truck specialists
- Municipal and utility depots
- Distributors supplying heavy-duty alignment equipment
Problems It Solves
What It Stops Costing You
- 5T lifts cannot take the heaviest vehicles in a mixed fleet
- Heavy vehicles need wheels-free access that a plain four post lift cannot give
- Fixed runway spacing does not suit commercial track widths
- Uncontrolled descent on a heavy load is a safety concern
Technical Features
- Capacity 8000 kg / 17,600 lbs
- Four post lift with second lifting system
- Hydraulic power unit with throttling device and adjustable decline speed
- Hydraulic oil cylinder and wire rope drive
- Wire control safety lock with wire rope anti-fracture function
- Adjustable runway spacing
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves
- Manual, pneumatic and electric release options

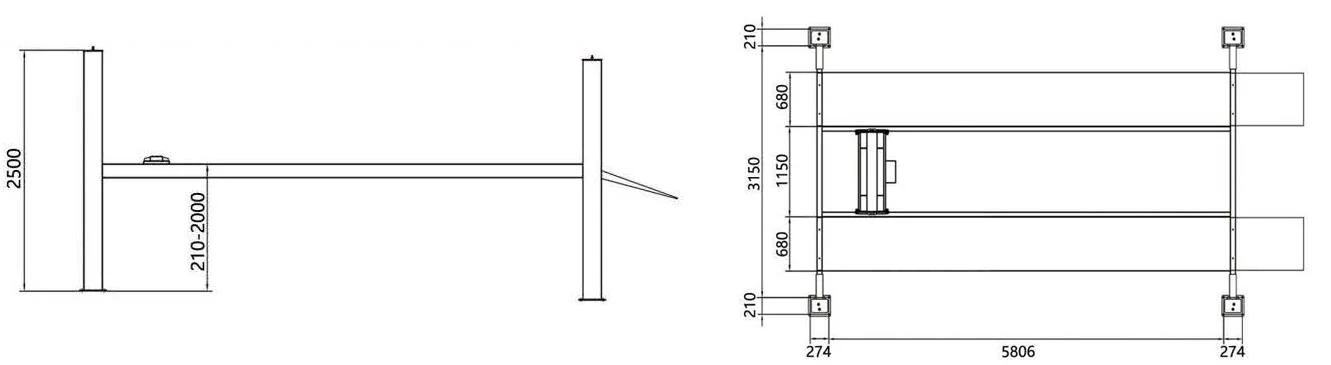

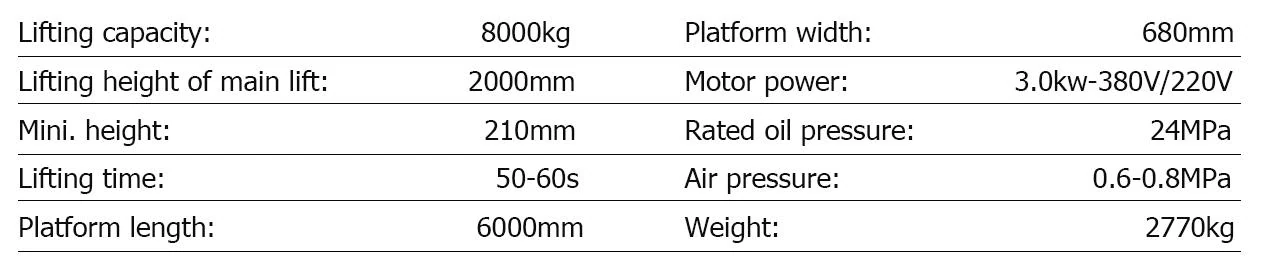

Specifications
Compared With Other Models
- Against the AFL50: 8000 kg rather than 5000 kg capacity
- Against the ASL80 scissor lift: the vehicle stays on its wheels on full-length runways
- Against a heavy two post lift: better suited to alignment and long-duration support
Use Guide
- Check floor loading against the installation drawing before fitting
- Set the runway spacing for your heaviest vehicle track width
- Drive on squarely, apply the brake and chock the wheels
- Raise, settle onto the safety locks, and use the secondary lift for alignment
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
AFL80 Questions Buyers Ask
What is the rated capacity?
8000 kg, equivalent to 17,600 lbs.
Can it be used for wheel alignment?
Yes. The second lifting system provides the wheels-free position alignment requires.
Is the runway spacing adjustable?
Yes, to fit various kinds of vehicle including commercial track widths.
What floor is required?
We supply the installation drawing with load requirements so the slab can be checked before delivery.
What release options are available?
Manual, pneumatic and electric release.
How is it shipped?
Crated for container loading, with crate dimensions and gross weight confirmed on the quotation.
