Four Post Lift · Model AFL50

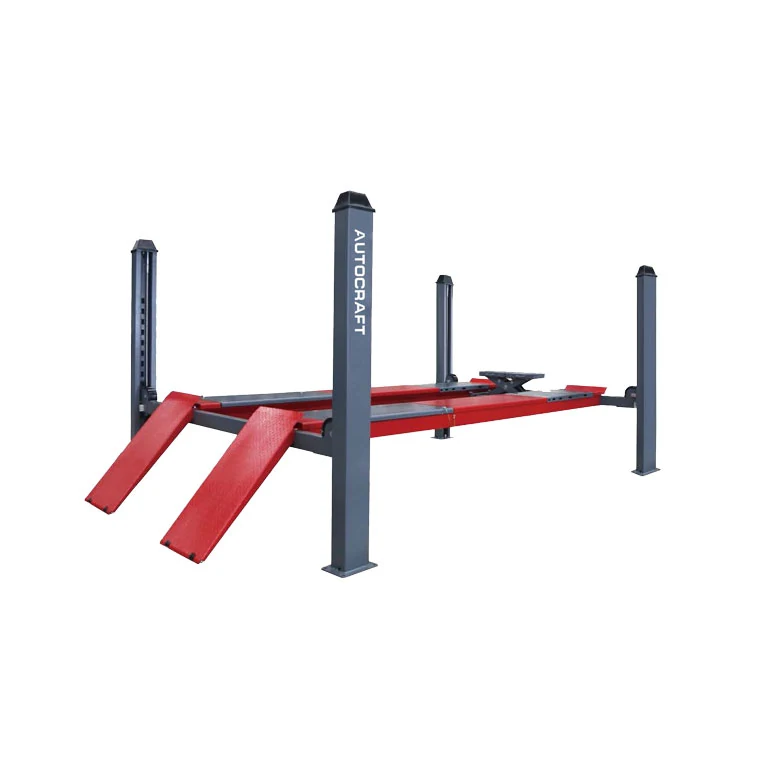

AFL50 5T Four Post Lift for Wheel Alignment
5T four post lift with secondary lifting system
Product Overview
AFL50 is a 5000 kg four post lift with a second lifting system, so one bay handles both regular repair and wheel alignment. Runway spacing is adjustable for different track widths, and the wire control safety lock includes wire rope anti-fracture protection.
Key Benefits
What This Machine Changes in the Bay
- 5000 kg / 11,000 lbs capacity covers vans and larger SUVs
- Second lifting system gives the wheels-free position alignment needs
- Adjustable runway spacing fits a wide range of vehicles
- Wire control safety lock with wire rope anti-fracture protection
- Adjustable decline speed at the power unit
Application Scenarios
- Alignment bays serving vans and larger SUVs
- Combined repair and alignment in a single bay
- Workshops needing wheels-free access on a four post lift
- Fleet workshops with a heavier vehicle mix
Who It Is For
- Alignment specialists working on heavier vehicles
- Light commercial and fleet workshops
- Service chains standardising heavier alignment bays
- Distributors supplying complete four post alignment packages
Problems It Solves
What It Stops Costing You
- A 4T four post lift caps the vehicle mix a workshop can accept
- Alignment and repair competing for the same bay slows throughput
- Fixed runway spacing does not fit every track width
- Cable drives need real protection against rope failure
Technical Features
- Capacity 5000 kg / 11,000 lbs
- Four post lift with second lifting system
- Hydraulic power unit with throttling device and adjustable decline speed
- Hydraulic oil cylinder and wire rope drive
- Wire control safety lock with wire rope anti-fracture function
- Adjustable runway spacing
- Shot blasting finish with outdoor-grade automatic electrostatic powder coating
- German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves
- Manual, pneumatic and electric release options

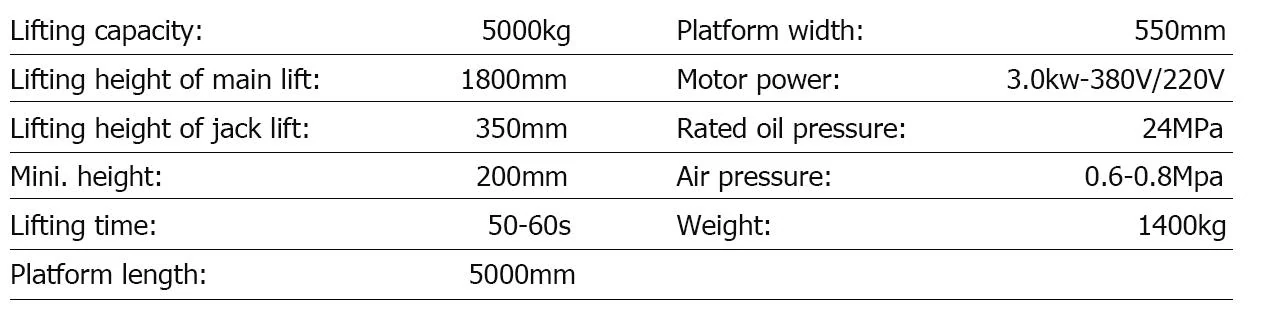

Specifications

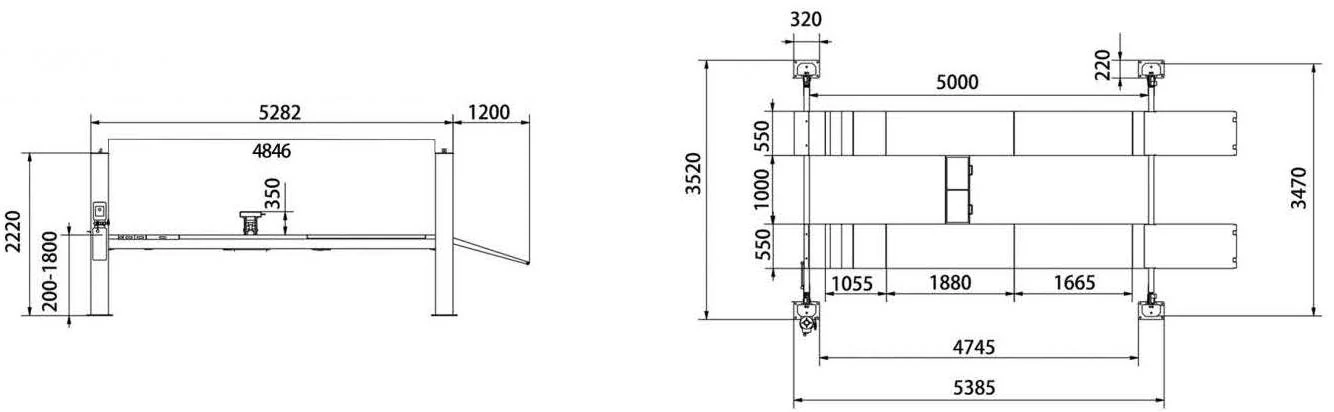

AFL50 5T Four Post Lift for Wheel Alignment in Detail
Compared With Other Models
- Against the AFL40/40S: 5000 kg capacity and a second lifting system as standard
- Against the AFL80: lower capacity and a smaller installed footprint
- Against an in-ground scissor lift: no civil work, though the runways stay on the floor
Use Guide
- Set the runway spacing to your usual vehicle track widths
- Drive on squarely and apply the brake and chocks
- Raise the main lift for repair, or the secondary lift for wheels-free alignment
- Settle onto the safety locks before starting work
Quality and Support
What Comes With the Machine
Quality Assurance
Every product is supplied with a long warranty assurance.
Expert Guidance
Pre-sales and after-sales teams give professional guidance and aftersales support.
Reliability
Consistent and reliable performance across every product line.
Innovation
An experienced R&D team develops the products the market asks for.
Customization. Machines are built to your local voltage and frequency, and optional equipment is listed on the quotation. Send us your requirement and we will confirm what can be changed before you order.
Bay Solutions Using This Machine
AFL50 Questions Buyers Ask
What is the rated capacity?
5000 kg, equivalent to 11,000 lbs.
Does it support wheels-free alignment?
Yes. The second lifting system raises the wheels clear for alignment and suspension work.
Is runway spacing adjustable?
Yes, to fit various kinds of vehicle.
What safety systems are fitted?
A wire control safety lock with wire rope anti-fracture function, plus an adjustable decline speed at the power unit.
Which release option should we choose?
Manual, pneumatic and electric release are all available. Tell us your bay setup and we will recommend one.
What is the shipping volume?
Crate dimensions, gross weight and units per container are confirmed with the quotation.
