ATL40CA 4T Clear Floor Two Post Lift With Electric Lock

Name: ATL40CA Clear Floor Two Post Lift
Brand: Autocraft
SKU: ATL40CA

Product Overview

ATL40CA is a 4000 kg clear floor two post lift with an electric lock and a 24V safety electronic control box as standard. The bay floor stays clear between the columns, and release is handled at the control rather than by hand at the column.

Key Benefits

What This Machine Changes in the Bay

Electric lock released from the control box, not by hand at the column
24V safety electronic control box supplied as standard
Clear floor between the columns for trolleys and drain trays
Laser cut 5 mm columns on a large base
Outdoor-grade powder coating over a shot blasted finish

Application Scenarios

High-volume bays cycling the lift all day
Workshops where several technicians share one lift
General repair needing constant trolley access under the vehicle
Sites standardising the lifting procedure across bays

Who It Is For

Busy independent workshops and service chains
Fleet workshops running standard procedures
Dealership service departments
Distributors supplying upper-range clear floor lifts

Problems It Solves

What It Stops Costing You

Manual release habits vary between technicians
Walking to the column on every lower wastes time
Floor plates obstruct equipment and trap dirt
Thin columns flex under repeated loading

Technical Features

Capacity 4000 kg / 9000 lbs
Clear floor two post lift
Electric lock
24V safety electronic control box
Laser cut 5 mm column with large base
Shot blasting finish with outdoor-grade automatic electrostatic powder coating
German Bosch Rexroth hydraulic valve parts with Italian oil sealing rings and ball valves

Specifications

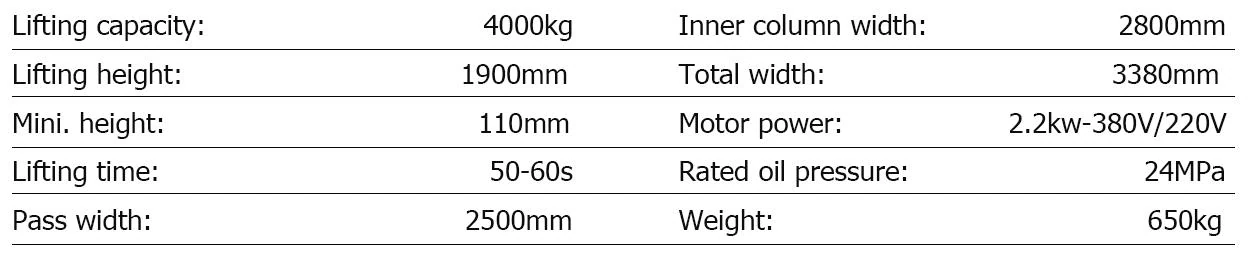

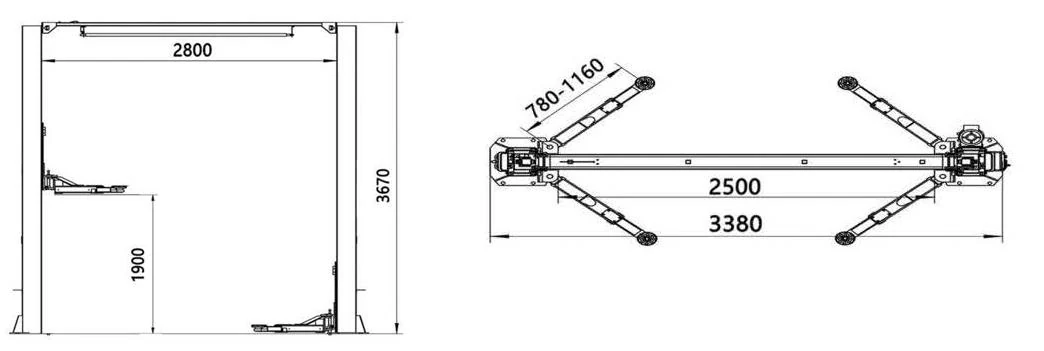

ATL40CA specification table from the manufacturer — Specification table for the ATL40CA as published by the manufacturer.

ATL40CA Clear Floor Two Post Lift in Detail

ATL40CA clear floor two post lift with electric lock

ATL40CA two post lift overhead beam and carriage

ATL40CA Clear Floor Two Post Lift product photo

Compared With Other Models

Against the ATL40C and ATL40CS: electric lock release instead of a manual lever
Against the ATL40BA: clear floor rather than base floor construction
Against manual lock lifts generally: a repeatable procedure independent of the operator

Use Guide

Confirm ceiling height for the overhead beam and slab thickness before installation
Set the arms under the vehicle's lifting points and raise to contact
Raise fully and lower onto the safety locks before working underneath
Release the electric lock at the control box before lowering
